BLINGO R 38W 12030 NW

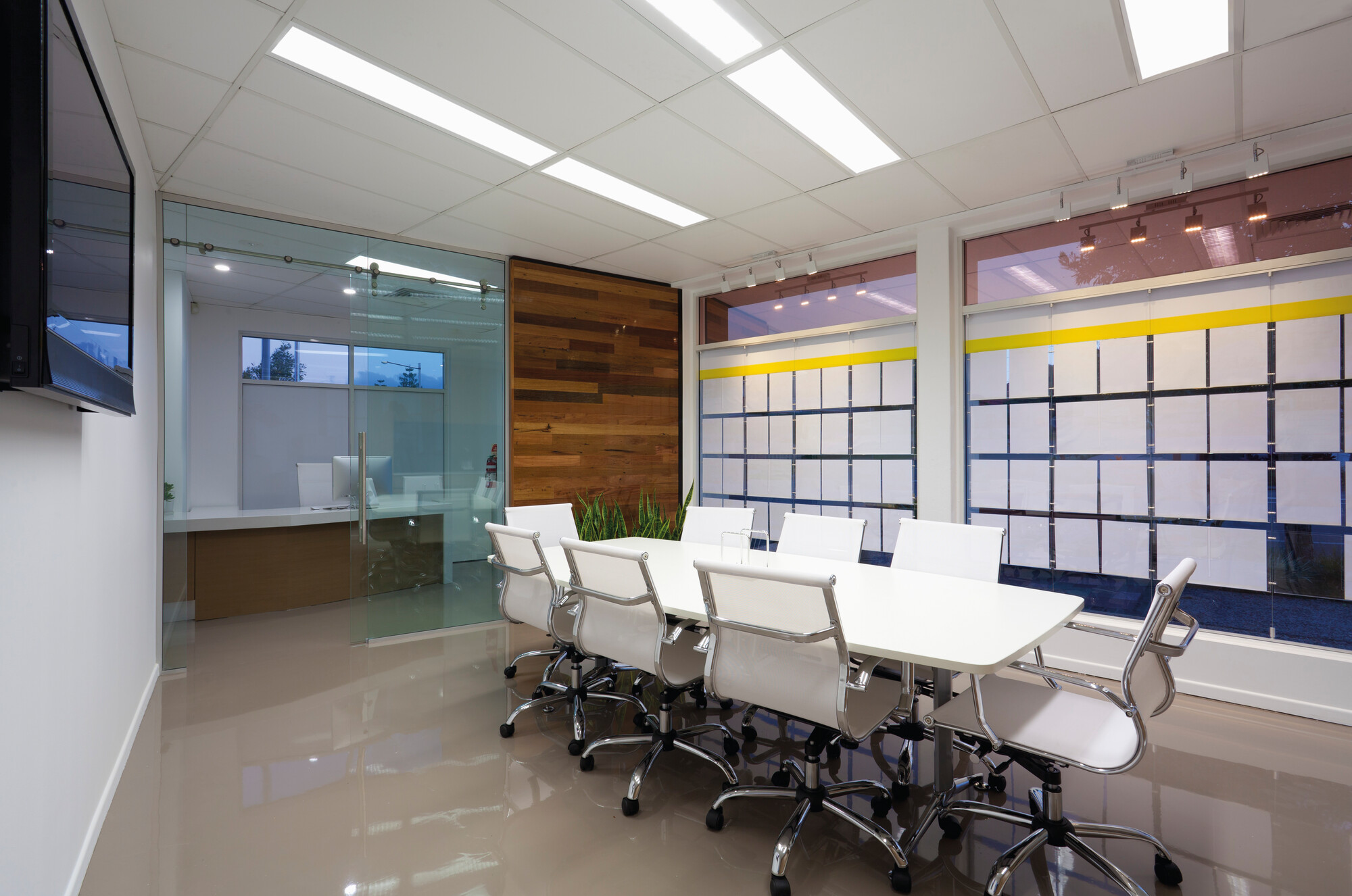

Miniatura aranżacji BLINGO R 38W 12030 NW

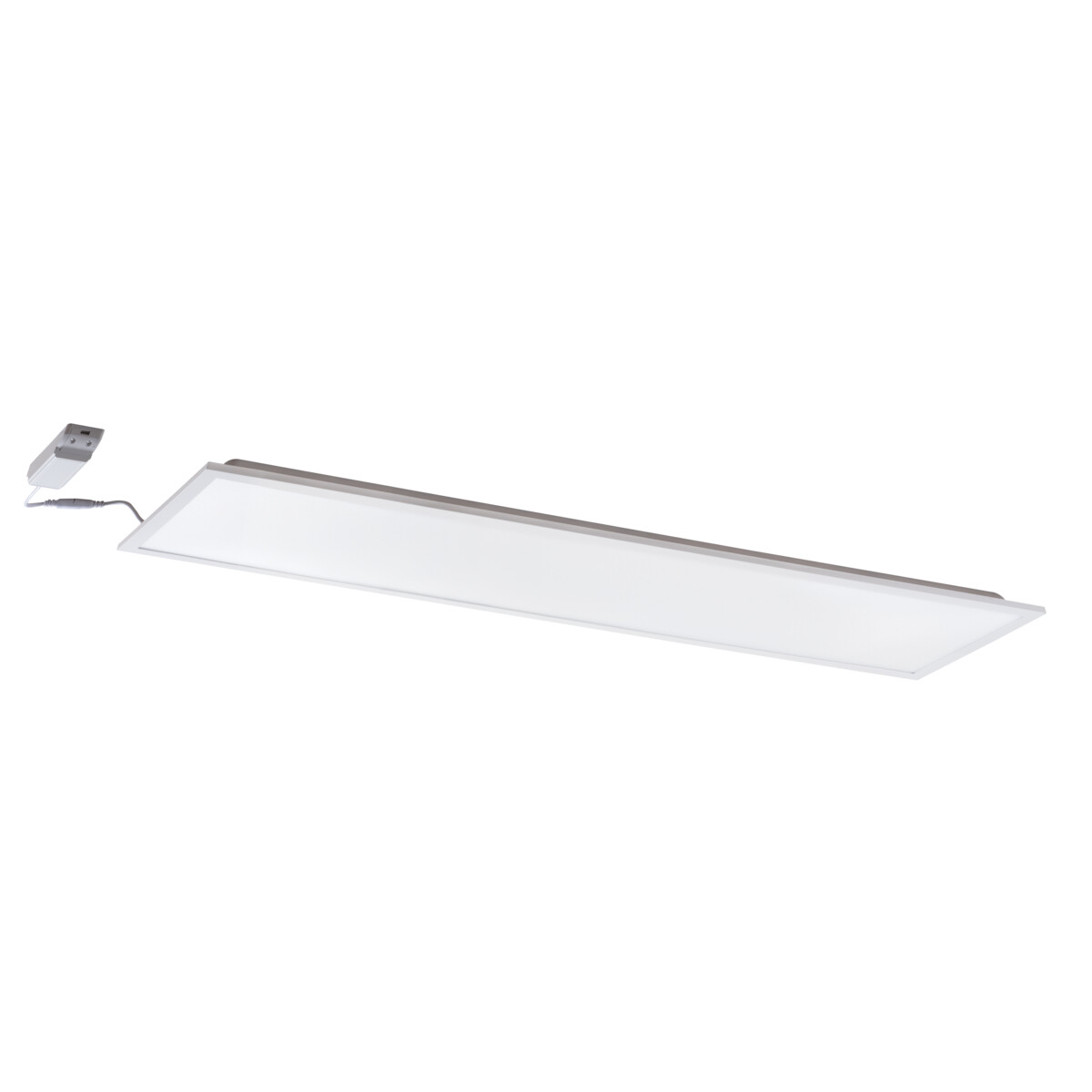

Recessed-mounted LED panel BLINGO BL

BLINGO R 38W 12030 NW

Product code: 29823 logo KANLUX

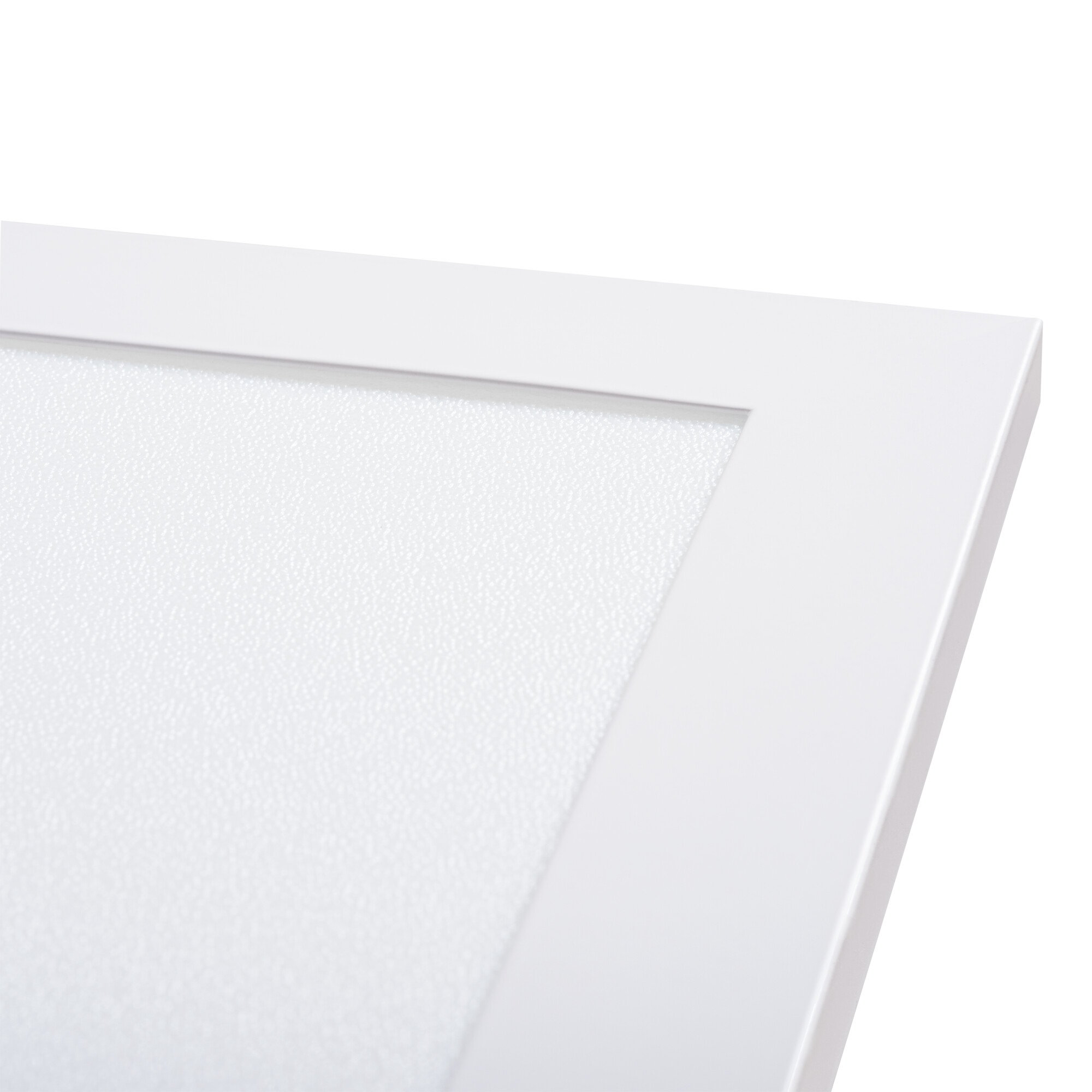

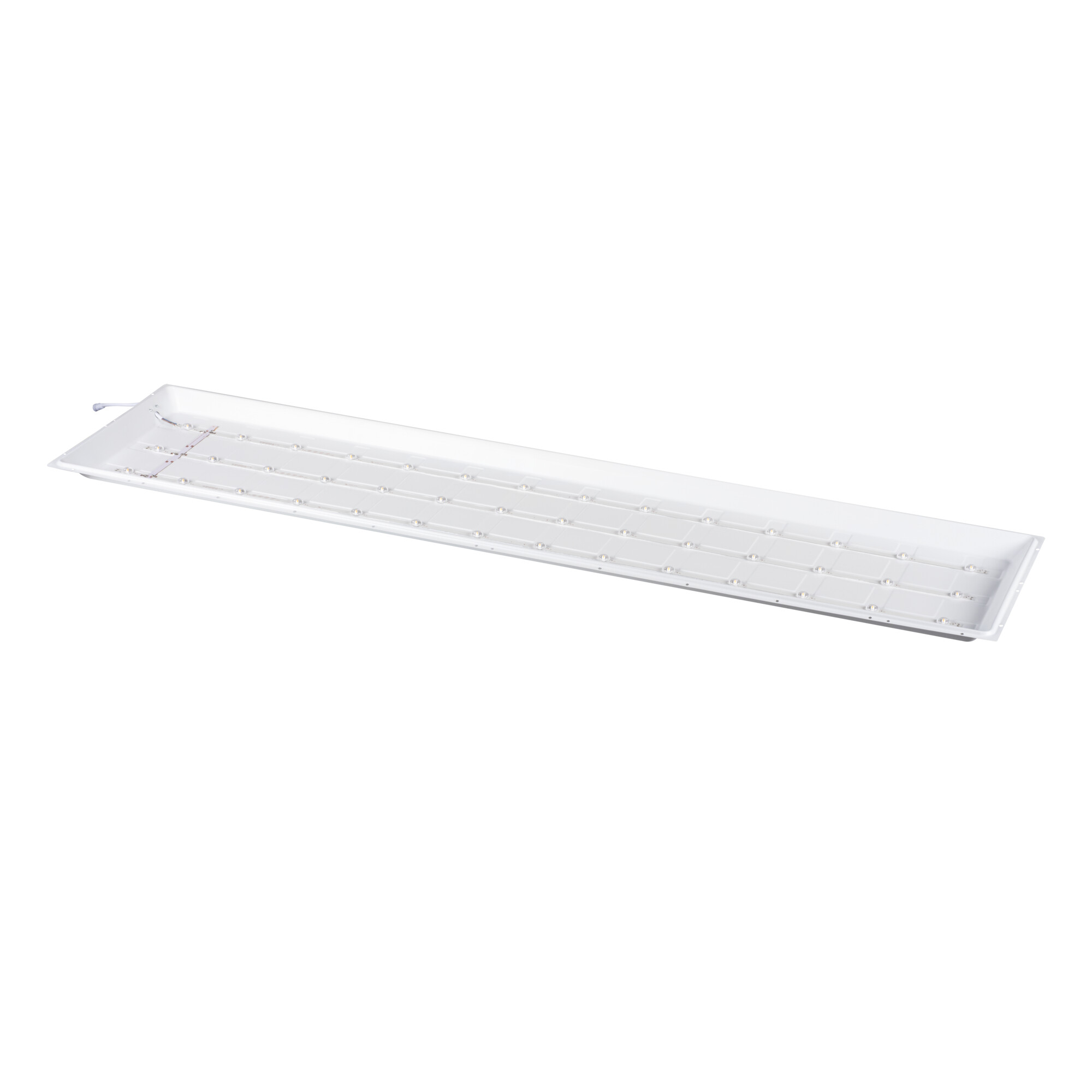

In Kanlux BLINGO panels, the LED modules are located on the rear panel wall and light directly downwards. These are backlit panels equipped with lenses that extend the angle of light emission, ensuring the uniformity of illumination. Elimination of the light-conducting plate greatly reduces the possibility of the luminaire yellowing and allows for better light parameters. We also provide a whole range of accessories for Kanlux BLINGO panels.

Rated voltage [V] 220-240 AC

Maximum power [W] 38

Luminous flux of the light fitting [lm] 3800

Service life [h] 50000

IP class 20

Colour white

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

Recessed-mounted LED panel BLINGO BL BLINGO R 38W 6060 NW Product code: 29822

Compare

Recessed-mounted LED panel BLINGO BL BLINGO P 38W 6060 NW Product code: 33180

Compare

Together better

Select complementary products

Mounting string BRAVO SPN SPN BRAVO S/P 12030 Product code: 28505

Compare

Accessory for LED panel CLIPS BLINGO RT CLIPS BLINGO RT Product code: 29826

Compare

Surface-mounted frame BL ADTR ADTR-H 12030 W Product code: 33390

Compare

LED power supply unit BLINGO DALI SET BLINGO DALI SET 38W Product code: 28515

Compare

Specification

General description

EAN13 5905339298232

Enclosure material steel

Lampshade material plastic

Panel/frame material steel

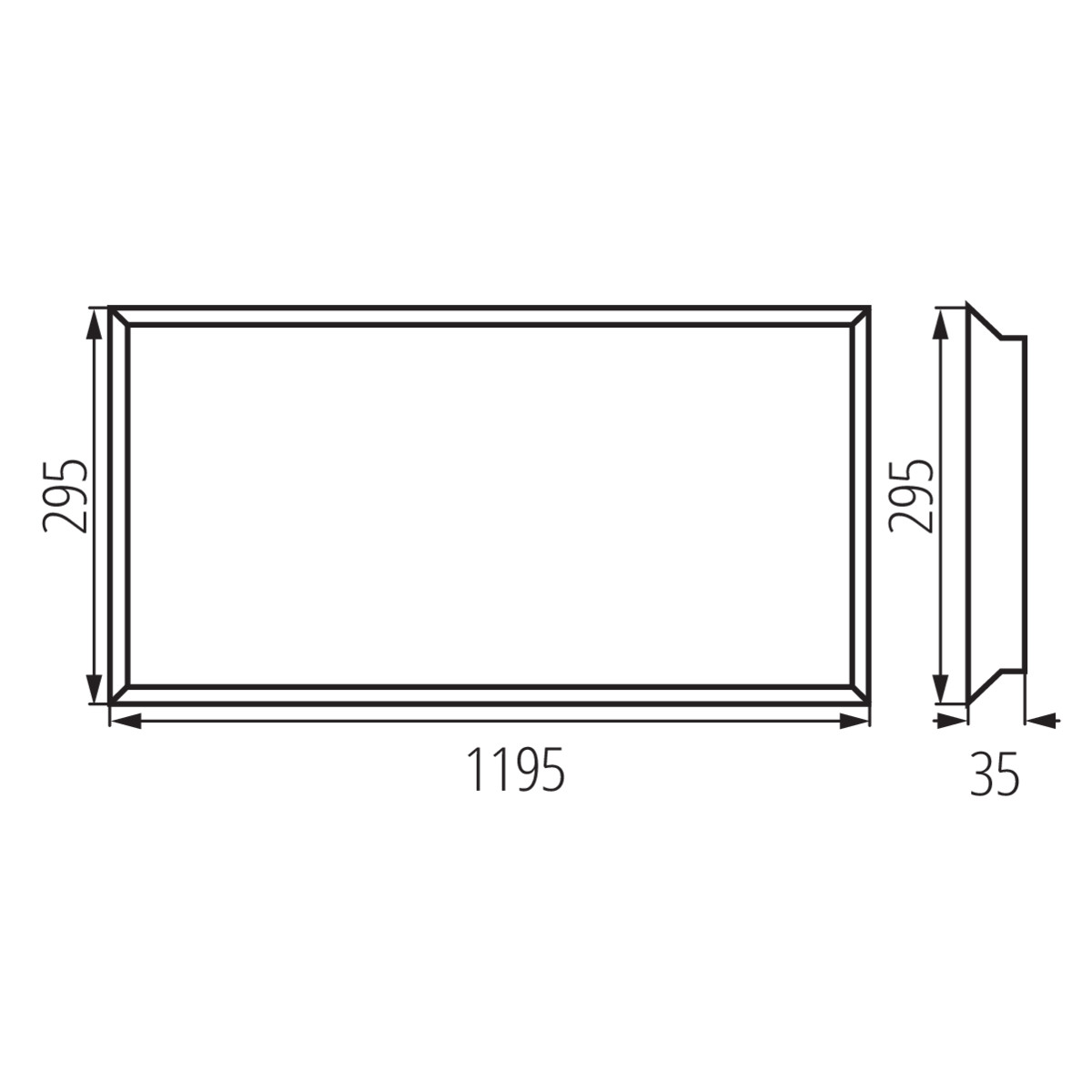

Weight and dimensions

Weight 1744g

Sales unit piece

Outer box 5

Additional features

5 years Warranty under the terms of the warranty statement, available on our website
BLINGO 62x62 is intended for an alternative size of ceiling systems (625mmx625mm)

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Maximum power [W] 38

Luminous flux of the light fitting [lm] 3800

Show more ▾

Luminous efficiency of the lamp [lm/W] 100

Lighting angle [°] 120

Number of on/off cycles ≥30000

Service life [h] 50000

Luminous flux retention factor at the end of rated service life L70B50

Colour temperature [K] 4000

Colour uniformity [SDCM] ≤6

Colour-rendering index Ra 80

Lamp-ignition time [s] ≤0,5

Lamp-heating time [s] ≤1

Diode type LED SMD

Colour temperature white

Class of protection against electric shock II

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Connection type Terminal block

Range of sections of wires used [mm2] 0,75-1,0

Useful luminous flux of the light source Φuse [lm] 4940

Useful luminous flux of the light source Φuse [lm] in sphere (360°)

Materials

Specification

Family card PDF, Size: 652.06 KB

Technical card PDF, Size: 875.36 KB

Support material PDF, Size: 4.67 MB

Drawings and 3D models

3ds MAX 3DS, Size:1.5 KB

Autocad 3D DWG, Size:15.58 KB

Material library MTL, Size:420 B

Object 3D OBJ, Size:2.83 KB

Filmbox FBX, Size:18.11 KB

Photometric data

File ldt - BLINGO R 38W 12030 NW LDT, Size: 2.85 KB

File ies - BLINGO R 38W 12030 NW IES, Size: 2.49 KB

Handling and installation

User manual PDF, Size: 1.2 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 874.66 KB

PZH approval PDF, Size: 521.28 KB

Warranty Statement PDF, Size: 89.88 KB
