LED wall mounted fitting TONIL LED

TONIL LED B

Product code: 32520 logo KANLUX

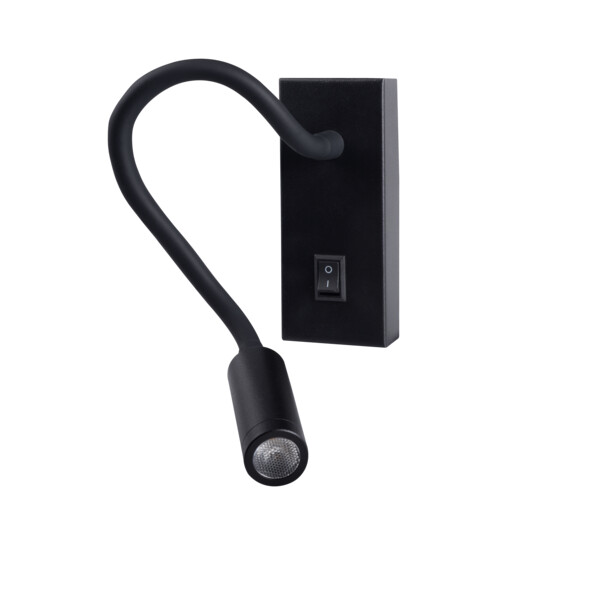

Kanlux TONIL LED is a wall lamp modest in shape with an integrated source of light. Its elastic rubber arm makes it possible to direct light to a desired direction, at the same time giving an even shape to the fitting.


Maximum power [W] 2.7
Rated voltage [V] 220-240 AC
IP class 20
Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Specification

General description
EAN13 5905339325204
Colour black
Enclosure material aluminum alloy
Lampshade material plastic
Place of application Indoors
Weight and dimensions
Height [mm] 121
Width [mm] 51
Length [mm] 370
Weight 300g
Sales unit piece
Outer box 50 p.
Energy class
The fixture set includes built-in LEDs with the following energy classes: A++,A+,A
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Show more ▾
Colour black
Maximum power [W] 2.7
Replaceable light source no
Integrated LED light source
Luminous flux [lm] 100
Lighting angle [°] 30
Number of on/off cycles ≥15000
Service life [h] 20000
Colour temperature [K] 3000
Colour uniformity [SDCM] ≤6
Colour-rendering index Ra ≥80
Lamp-ignition time [s] ≤0,5
Lamp-heating time [s] ≤1
Diode type LED SMD
Compatible with a dimmer no
Colour temperature Warm white
Class of protection against electric shock II
IP class 20
Ambient temperature range to which the product can be exposed 5÷25
Place of assembly wall mounted
The fixture is movable horizontally [°] 360
The fixture is movable vertically [°] 360
Connection type Bolt terminal block
Range of sections of wires used [mm2] 0,5-1,5
Minimum distance from the illuminated object 0,2m
The fixture set includes built-in LEDs with the following energy classes A++,A+,A
On switch
Luminous efficiency of the lamp [lm/W] 37
