Downlight fitting KATRO V2LED

KATRO V2LED 24W-WW-W

Product code: 33529 logo KANLUX

Kanlux KATRO V2LED is a new version of KATRO N LED luminaires, popular square downlights for indoor use. They combine aesthetic design with light obtained owing to LED technology. No water or dust can get to the inside owing to the high class of tightness (IP44).


Rated voltage [V] 220-240 AC
Maximum power [W] 24
Luminous flux [lm] 1560
Service life [h] 15000
Colour temperature [K] 3000
IP class 44/20
Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Specification

General description
EAN13 5905339335296
Colour white
Enclosure material aluminum alloy
Lampshade material plastic
Place of application Indoors

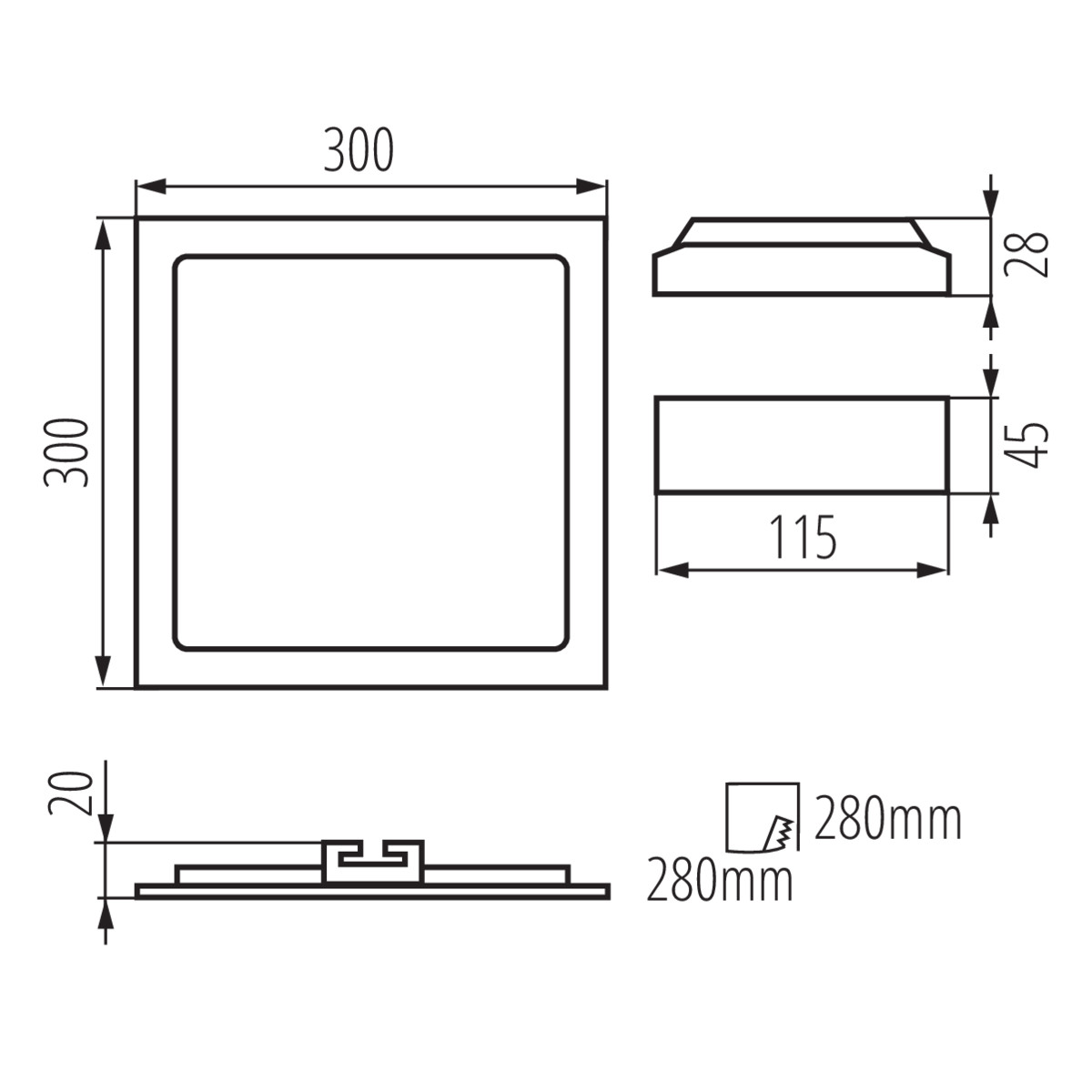

Weight and dimensions
Height [mm] 20
Width [mm] 300
Length [mm] 300
Weight 760g
Sales unit piece
Outer box 10
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Show more ▾
Colour white
Maximum power [W] 24
Integrated LED light source
Luminous flux [lm] 1560
Lighting angle [°] 110
Number of on/off cycles ≥20000
Service life [h] 15000
Colour temperature [K] 3000
Colour-rendering index Ra 80
Lamp-ignition time [s] ≤0,5
Lamp-heating time [s] ≤1
Diode type LED SMD
Compatible with a dimmer no
Colour temperature Warm white
Class of protection against electric shock II
IP class 44/20
Ambient temperature range to which the product can be exposed 5÷25
Place of assembly Recessed mount in the ceiling
The product is not suitable to be covered with a heat-insulating material

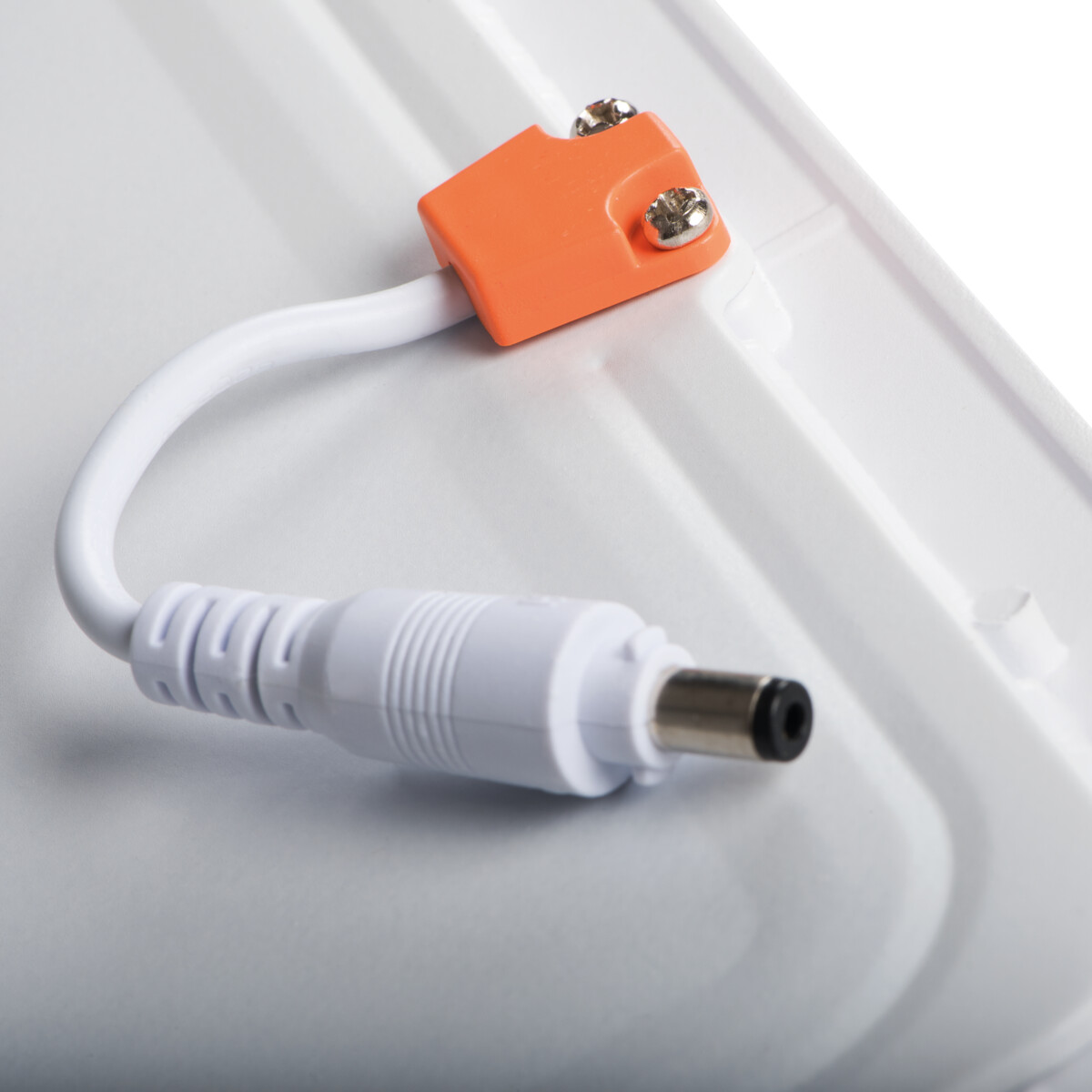

Connection type Free cable ends
Wire length [m] 0.05, 0.05
Wire diameter [mm²] 0.75
Minimum distance from the illuminated object 0,5m
Useful luminous flux °use [lm] 2700
