Kanlux Oświetlenie

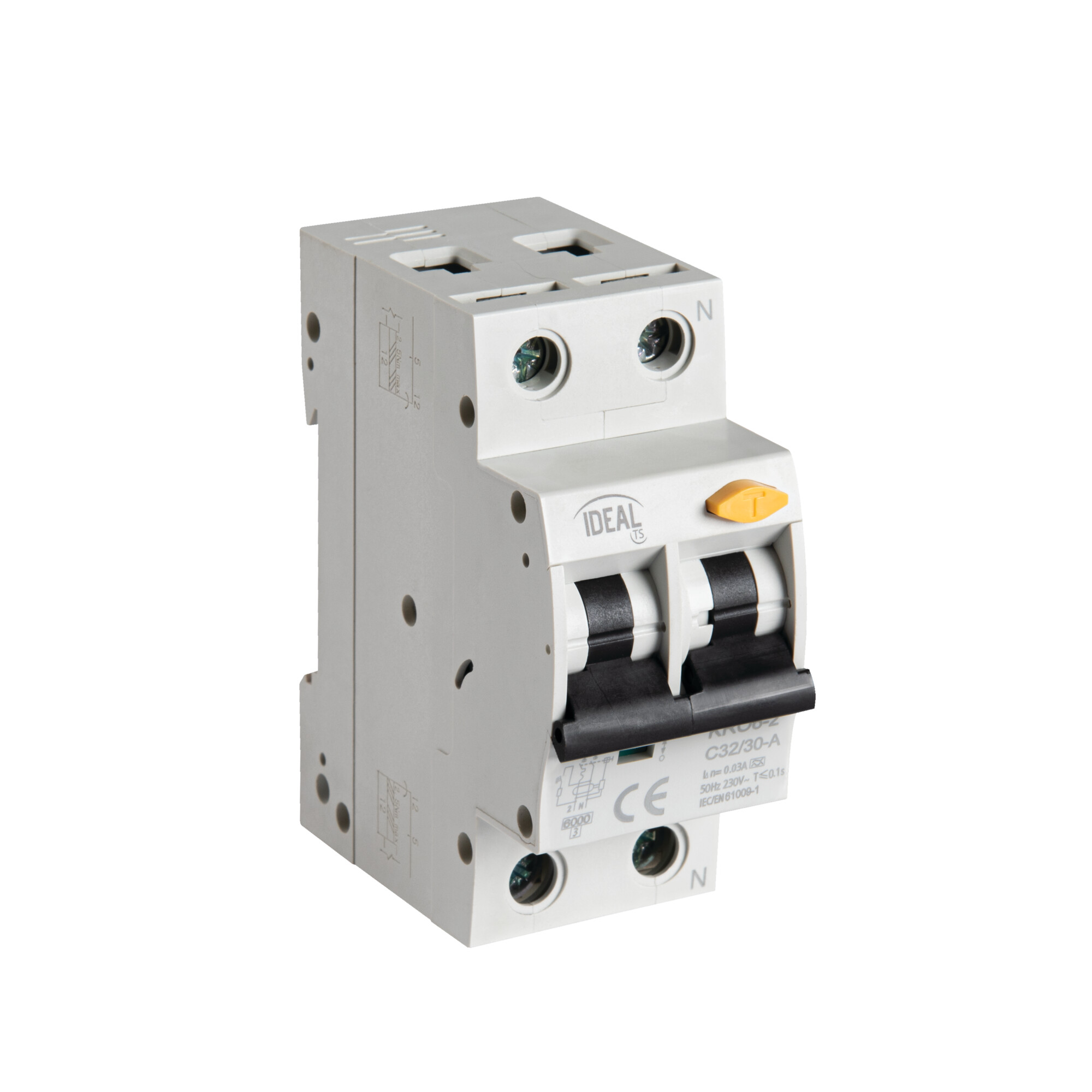

Residual-current circuit breaker with overcurrent module, 6kA, 2P KRO6

KRO6-2/C32/30-A

Product code: 23224 logo ITS

Residual current device with overcurrent protection is used to protect against overloads and short circuits in installations and devices, as well as to protect against electric shock.


Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Specification

General description
Warranty [years] 5
EAN13 5905339232243

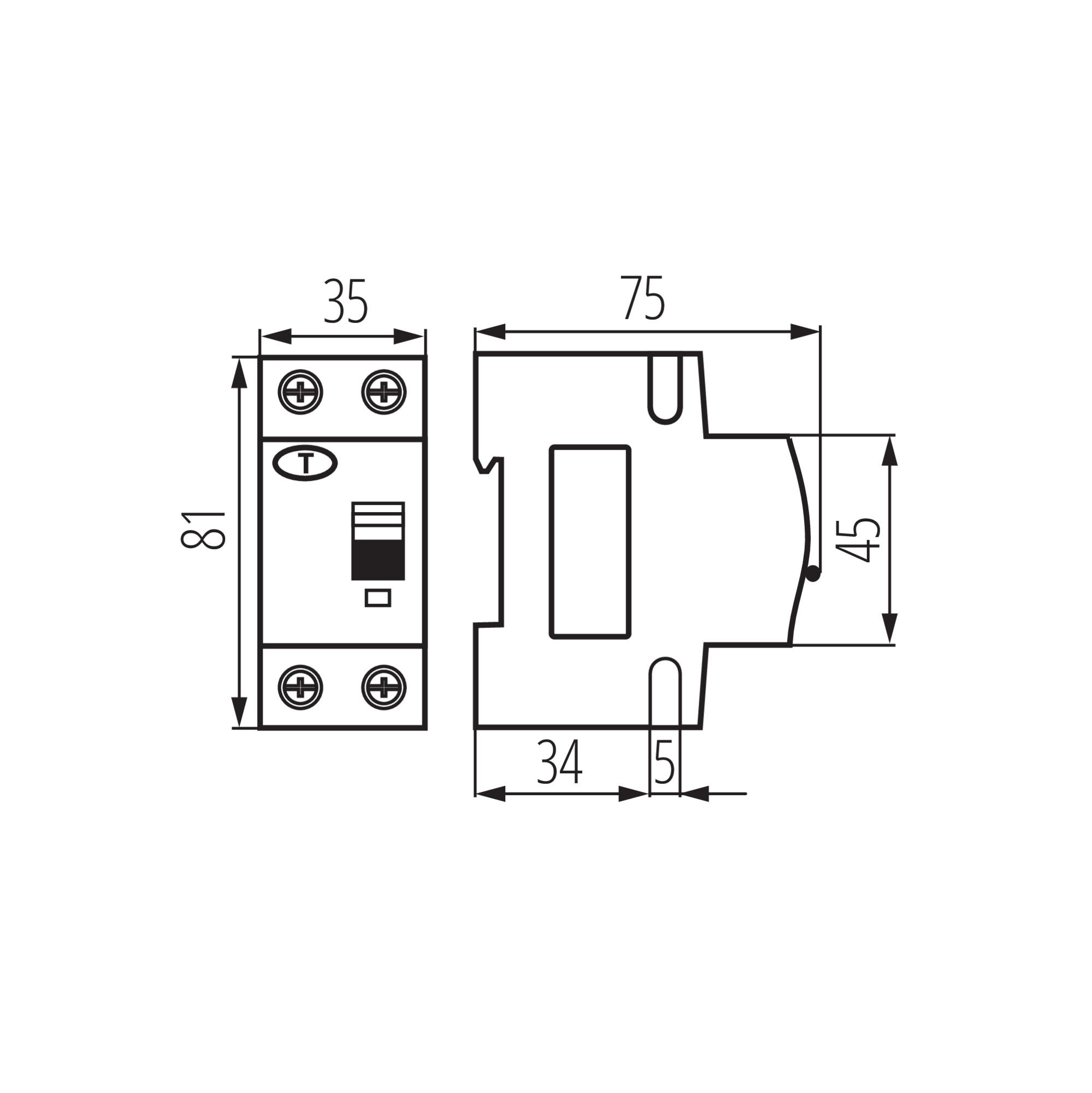

Weight and dimensions
Height [mm] 81
Width [mm] 35
Length [mm] 75
Weight 196g
Sales unit piece
Outer box 60
Technical data
Rated voltage [V] 230 AC
Rated frequency [Hz] 50
Rated current [A] 32
Differential-rated current [mA] 30
Show more ▾
Range of sections of wires used [mm2] 10÷16
Ambient temperature range to which the product can be exposed -25÷40
IP class 20
Residual-current protection type A
Rated short-circuit current [A] 6000
Energy-limit class 3
Release characteristics C
Number of modules 2
Application 2
Norm PN-EN 61009 -1
Rated insulation voltage UI [V] 400
