Energy class E

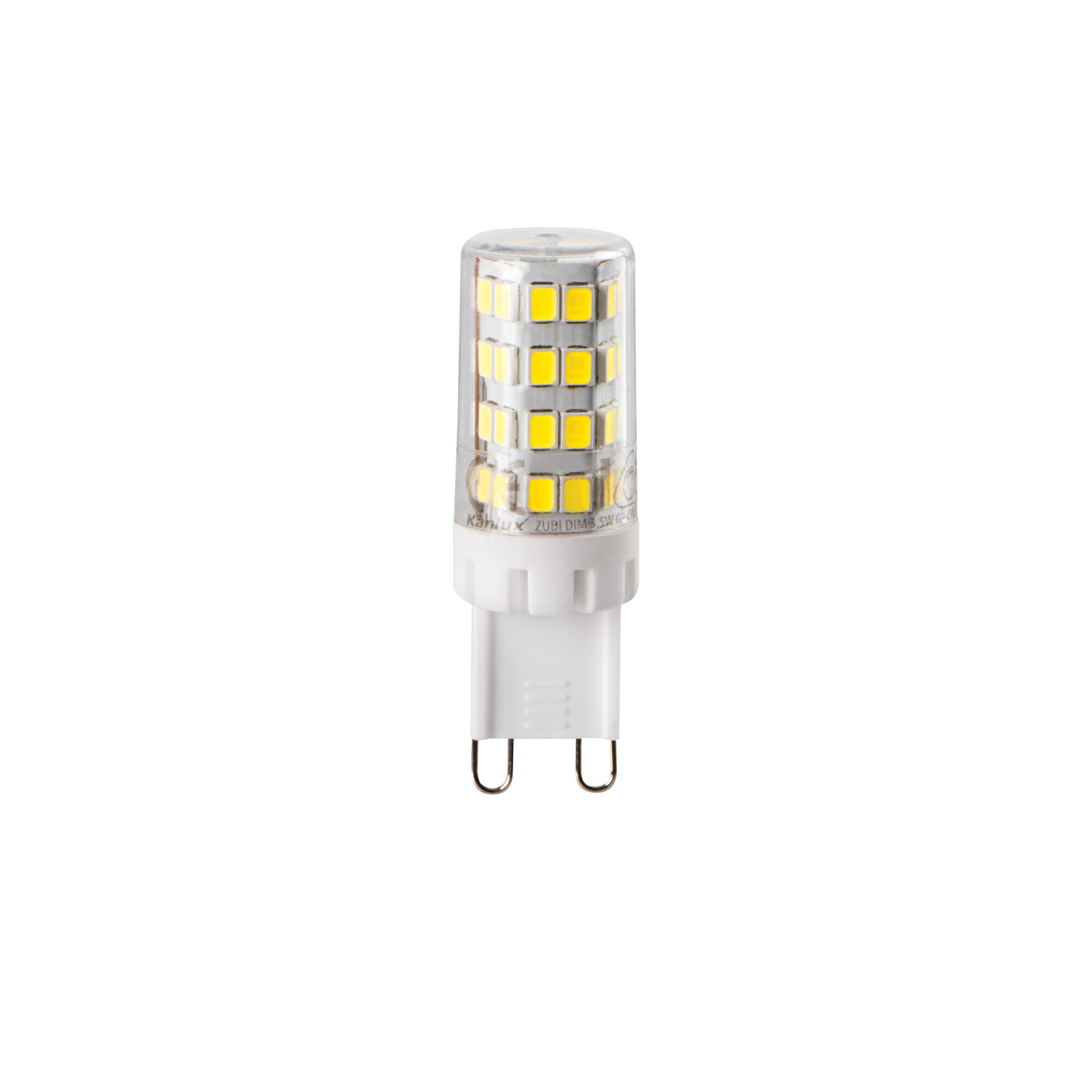

LED light source ZUBI DIM

ZUBI DIM 3,5W G9-CW

Product code: 24597 logo KANLUX


Rated voltage [V] 220-240 AC
On-mode power Pon [W] 3,5
Useful luminous flux of the light source Φuse [lm] 385
Colour temperature [K] 6500
Cap G9
Rated lamp-service life [h] 15000
Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Specification

General description
EAN13 5905339245977
Colour white
Material plastic
Weight and dimensions
Height [mm] 50
Diameter [mm] 16
Weight 12g
Sales unit piece
Outer box 50
Energy class
Vertical energy label
E
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Show more ▾
Light source G9
Diode type LED SMD
Rated power [W] 3,5
On-mode power Pon [W] 3,5
Energy consumption in on-mode (kWh/1000h) 4
Lamp rated current [mA] 16
Cap G9
Total rated luminous flux [lm] 385
Useful luminous flux of the light source Φuse [lm] 385
Useful luminous flux of the light source Φuse [lm] in sphere (360°)
Luminous efficiency of the lamp [lm/W] 110
Rated beam angle [°] 320
Claim of equivalent power [W] 34
Colour temperature [K] 6500
Colour uniformity [SDCM] 6
Colour-rendering index Ra 80
Colour temperature cold white
Number of on/off cycles ≥15000
Rated lamp-service life [h] 15000
Displacement factor (cos φ1) 0,9
Mercury content no
Survival factor 0,9
The lumen maintenance factor 0,93
Lamp designed for dimming
Compatible with a dimmer yes
Colour white
Shape capsule
Lighting technology used LED
Non-directional or directional light source NDLS
Mains or non-mains light source MLS
Connected light source (CLS) no
Colour-tuneable light source no
High luminance light source no
Anti-glare shield no
Dimmable only with specific dimmers
R9 colour rendering index value 0
LED light source replaces a fluorescent light source without integrated ballast of a particular wattage Not applicable
Flicker metric (Pst LM) 1,0
Stroboscopic effect metric (SVM) 0.4
EPRELID 2167276
Additional information Light source (LS)
