EDXe 1120/48.069

EDXe 1120/48.069 Kanlux
Miniatura EDXe 1120/48.069 - KANLUX

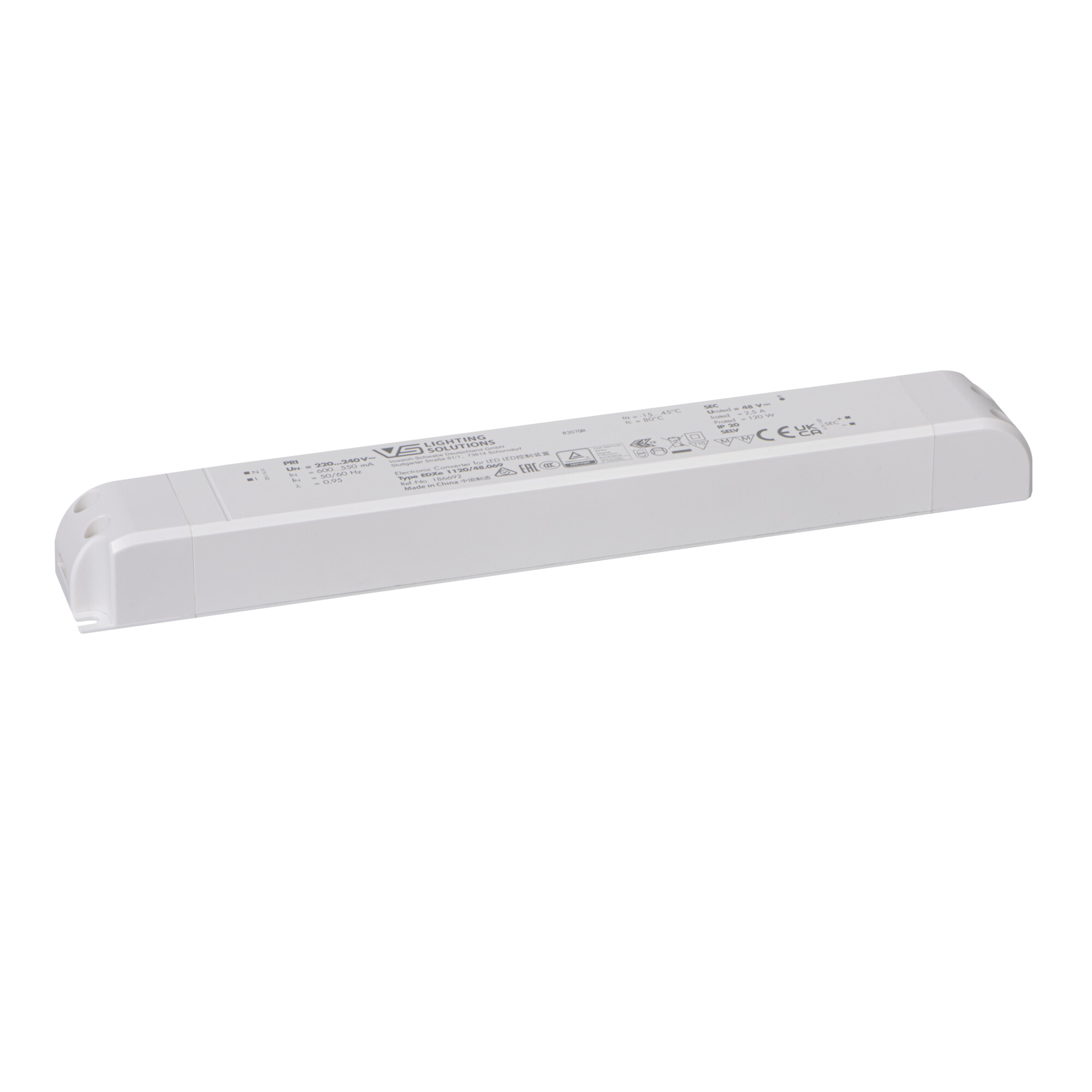

CV power supply unit

EDXe 1120/48.069

Product code: 25570 logo KANLUX

Scroll down to the full specification
Ask a question
Go to dictionary

Specification

General description
EAN13 4050732477737
Material plastic
Weight and dimensions
Weight 408g
Sales unit piece
Outer box 1
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Supply-cord type constant-voltage
Rated current [A] 0,55-0,6
Show more ▾
λ 0,95
Maximum power [W] max 120
Input voltage - PRI [V] 220-240
Output voltage - SEC [V] 48 DC
Output current - sec [ma] 0-2500
Tc [°C] 80
Maximum temperature Ta [°C] 45
Thermal protection 110°C
Short-circuit protection 1
Overload protection
Overvoltage protection 1
Possibility of installation on a normally flammable surface yes
IP class 20
Class of protection against electric shock II
Connection type Terminal block
Range of sections of wires used [mm2] 0,75-1,5
Ambient temperature range to which the product can be exposed 5÷25
Producent
Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification
Family card PDF, Size: 118.21 KB
Technical card PDF, Size: 64.87 KB
