SP 230/10K/HS/i

SP 230/10K/HS/i Kanlux

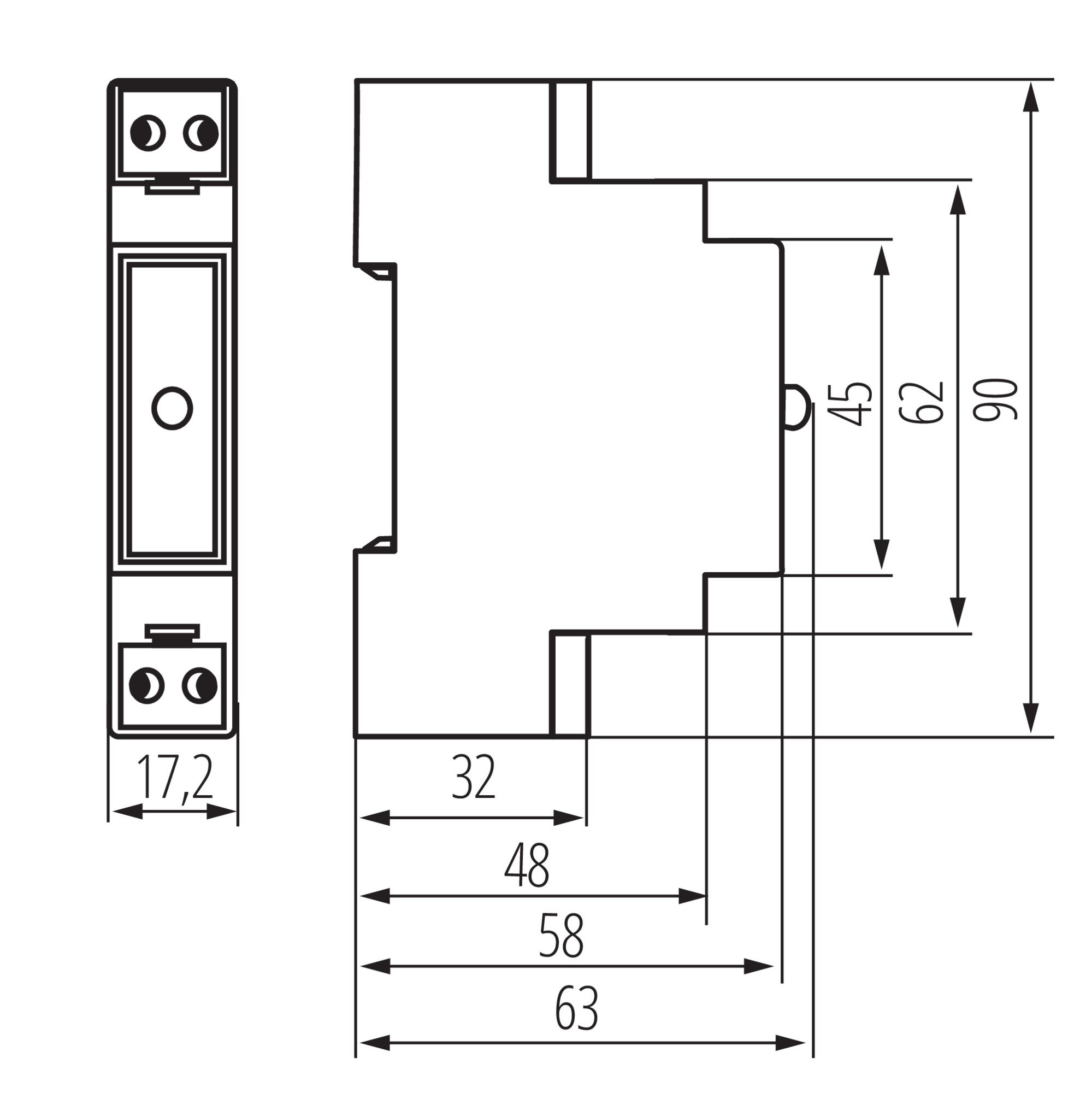

Miniatura SP 230/10K/HS/i - ITS Miniatura schematu SP 230/10K/HS/i

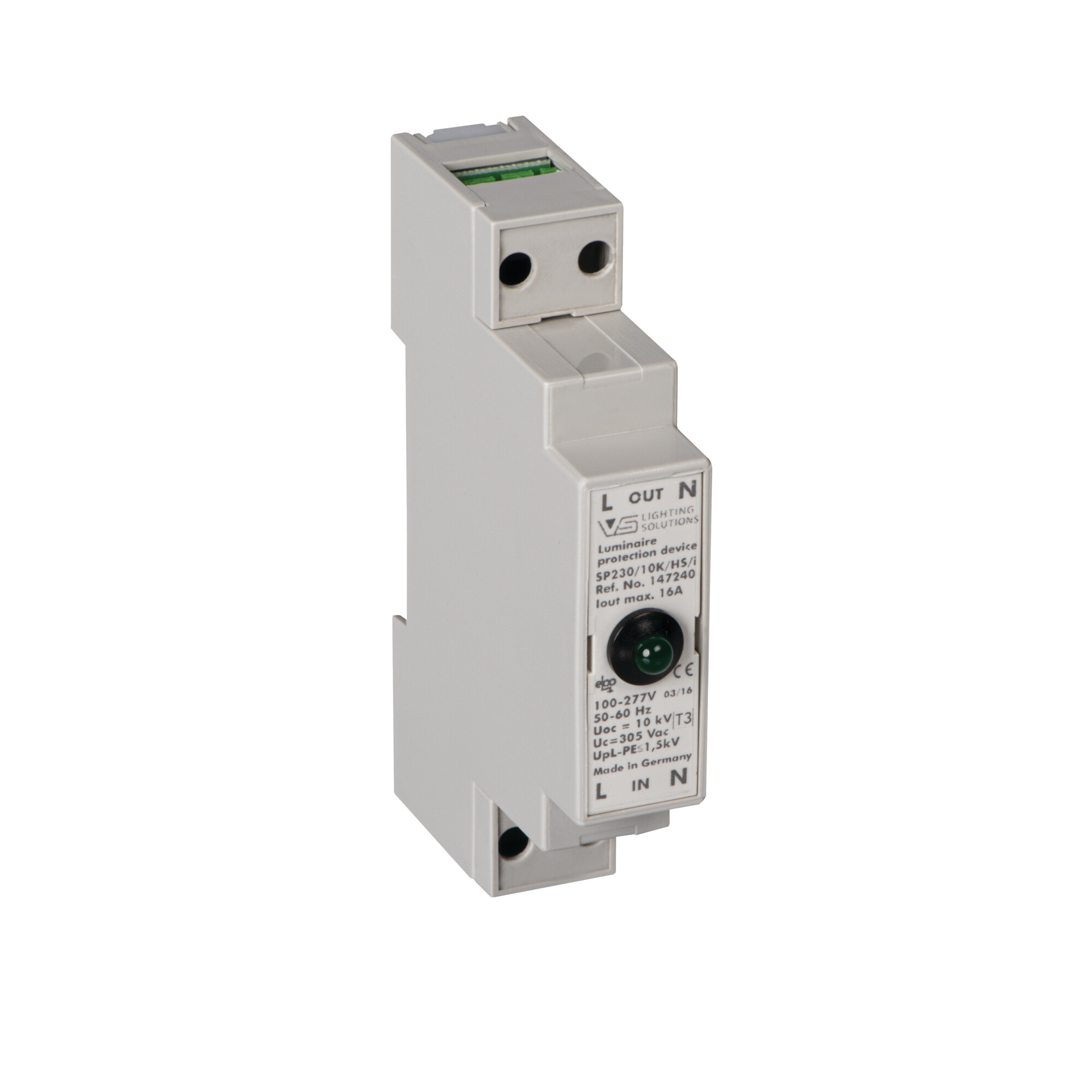

Surge protector SP

SP 230/10K/HS/i

Product code: 25572 logo ITS Product presentation

Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo ITS
SP 230/10K - ITS
Surge protector SP SP 230/10K Product code: 25571

Specification

General description
EAN13 4050732264993
Weight and dimensions
Weight 40g
Sales unit piece
Outer box 1
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Rated current [A] 16
Show more ▾
The highest discharge power Imax 10kA
Voltage protection level U(p) <1000V @1kA
Protection type T3 (D)
Ambient temperature range to which the product can be exposed -35+80
Rated discharge current In [kA] 5
Producent
Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification
Family card PDF, Size: 102.1 KB
Technical card PDF, Size: 225.74 KB
Support material PDF, Size: 739.66 KB
Approvals and certificates
Declaration of Conformity PDF, Size: 327.53 KB
