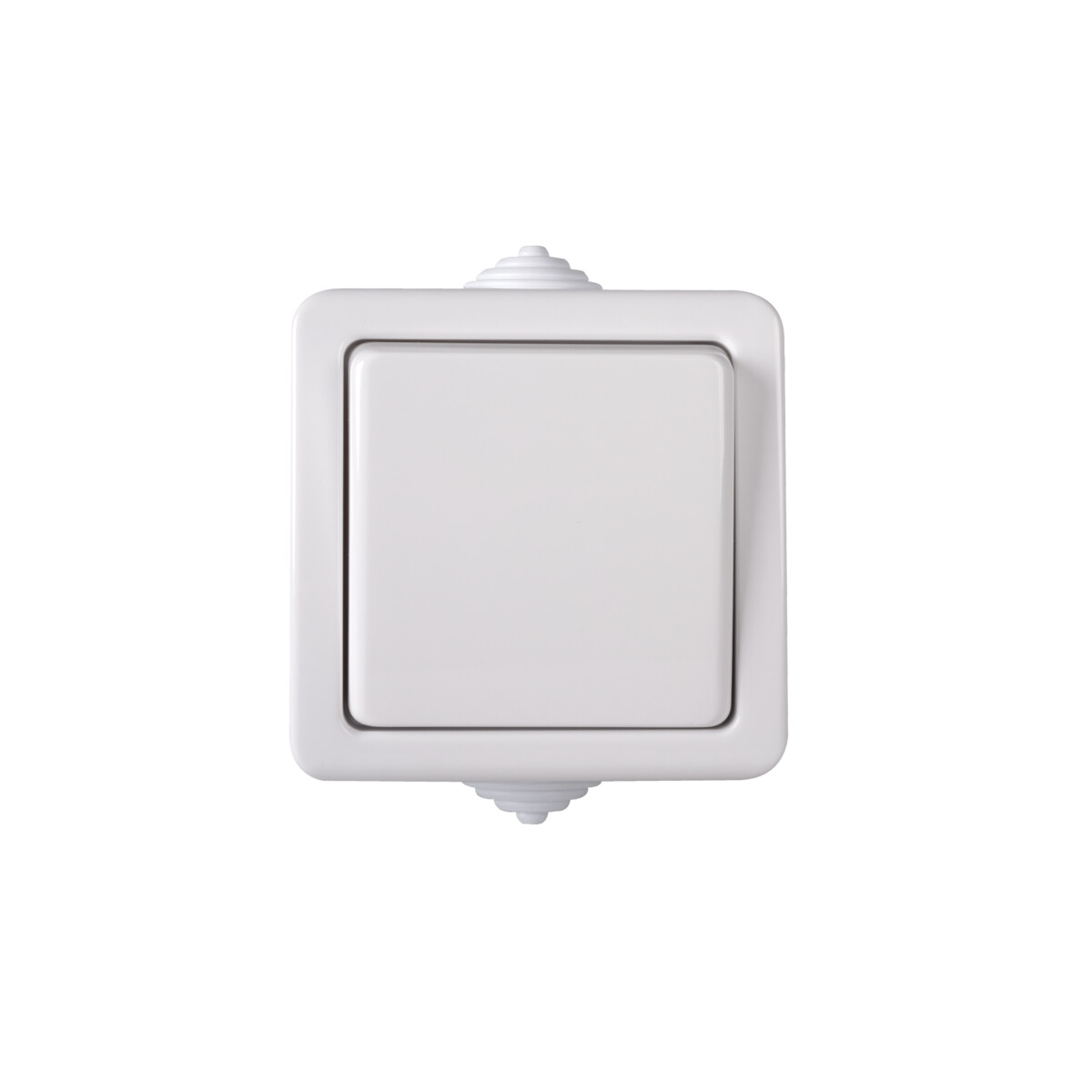

Control Switch (no symbol) TEKNO

TEKNO 05-1021-102 bi

Product code: 33498 logo MOWION


Scroll down to the full specification

Specification

General description
EAN13 5905339334985
Colour white
Weight and dimensions

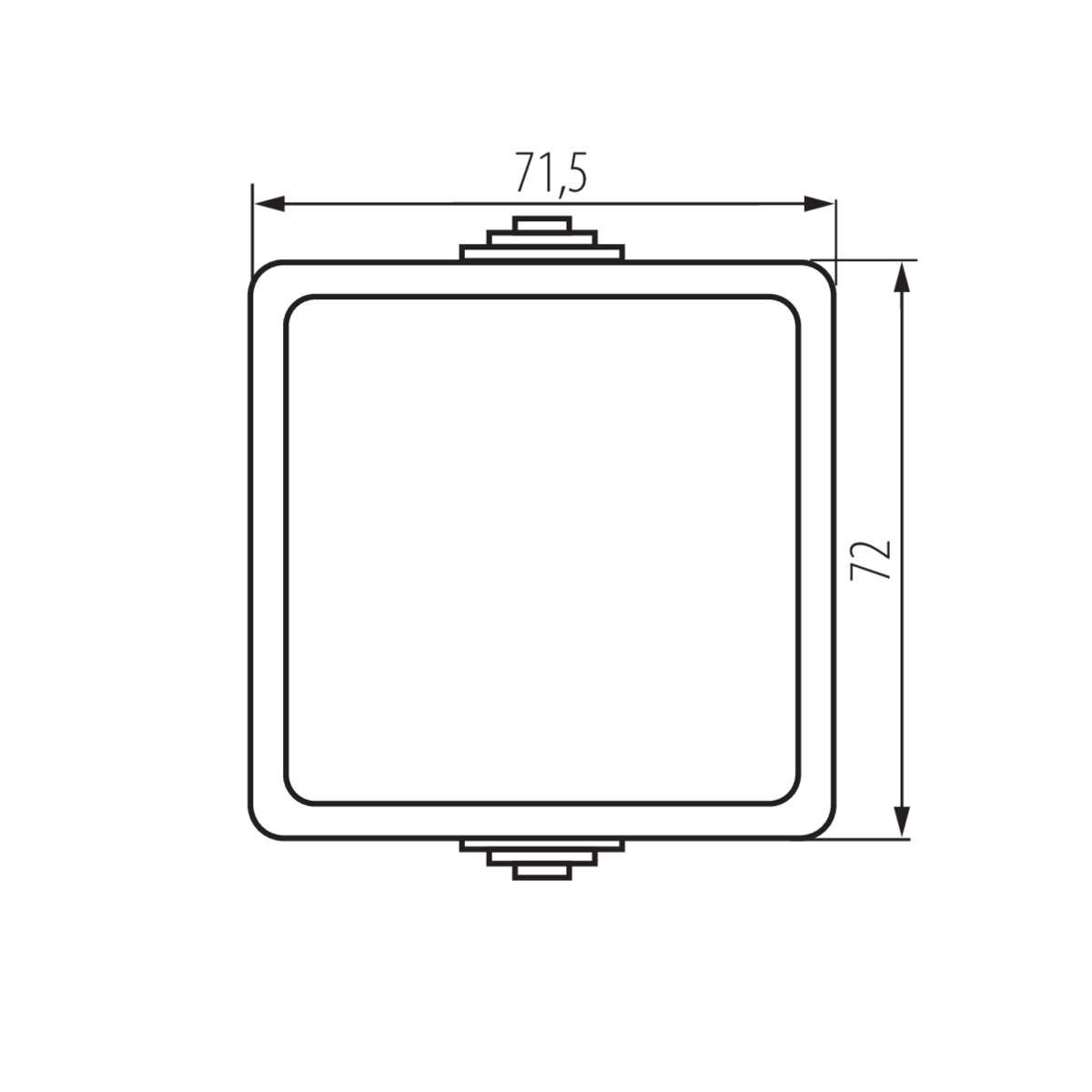

Height [mm] 72
Length [mm] 72
Weight 92g
Sales unit produkt.
Outer box 10
Technical data
Rated voltage [V] 250 AC
Rated current [AX] 10
Colour white
Number of levers 1
Show more ▾
Place of assembly wall mounted
Highlighting Not applicable
IP class 54
Terminal type Screw terminal
Plastic ABS
Material of contacts CuZn70

Materials
