Kanlux Oświetlenie

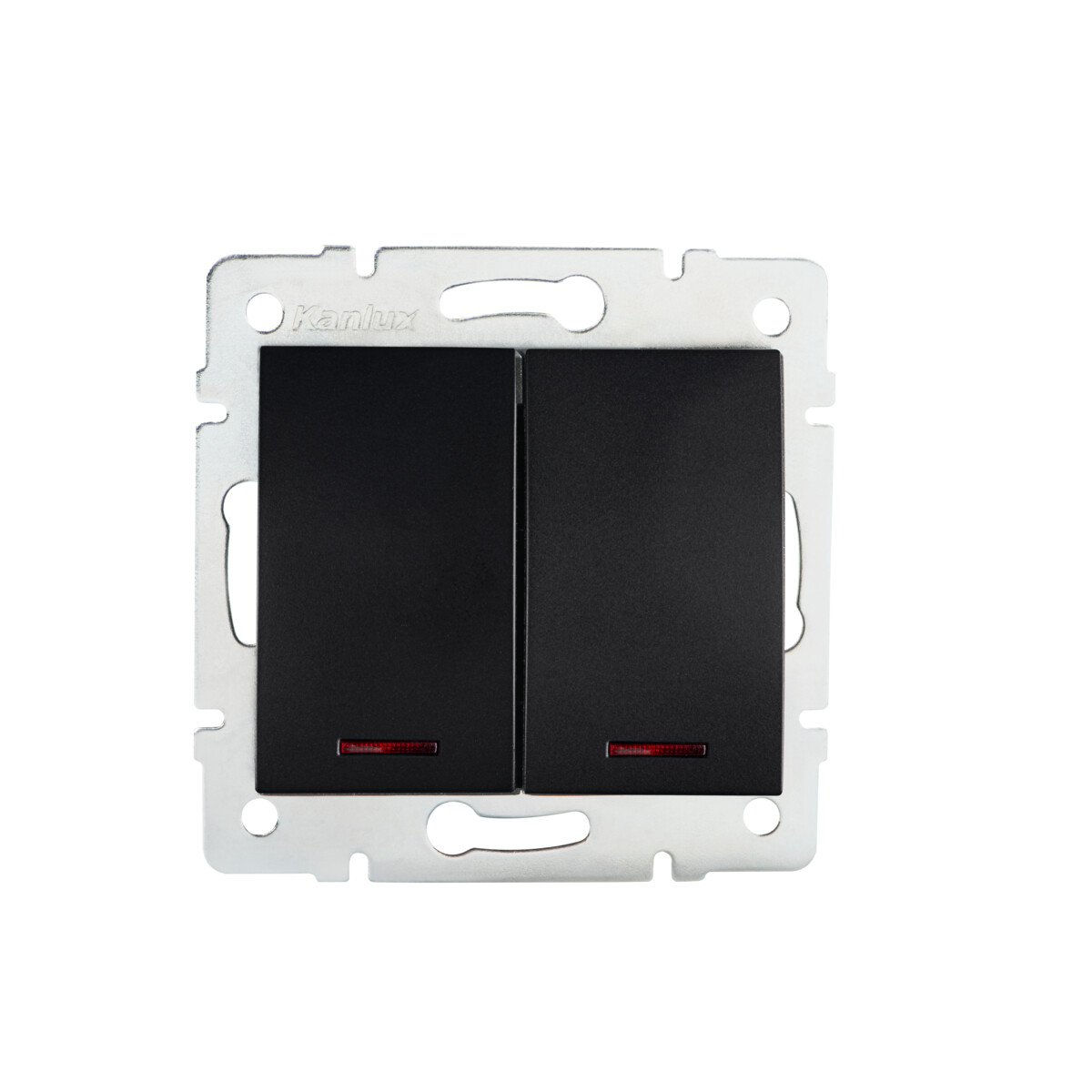

Łącznik dwugrupowy świecznikowy z LED LOGI

LOGI 02-1120-142 cm

Product code: 33623 logo MOWION

A two-gang light switch with LEDs is used to control circuits of two lamps or two groups of lamps from one place. The switch has LED backlight.


Scroll down to the full specification

Specification

General description
EAN13 5905339336231
Weight and dimensions

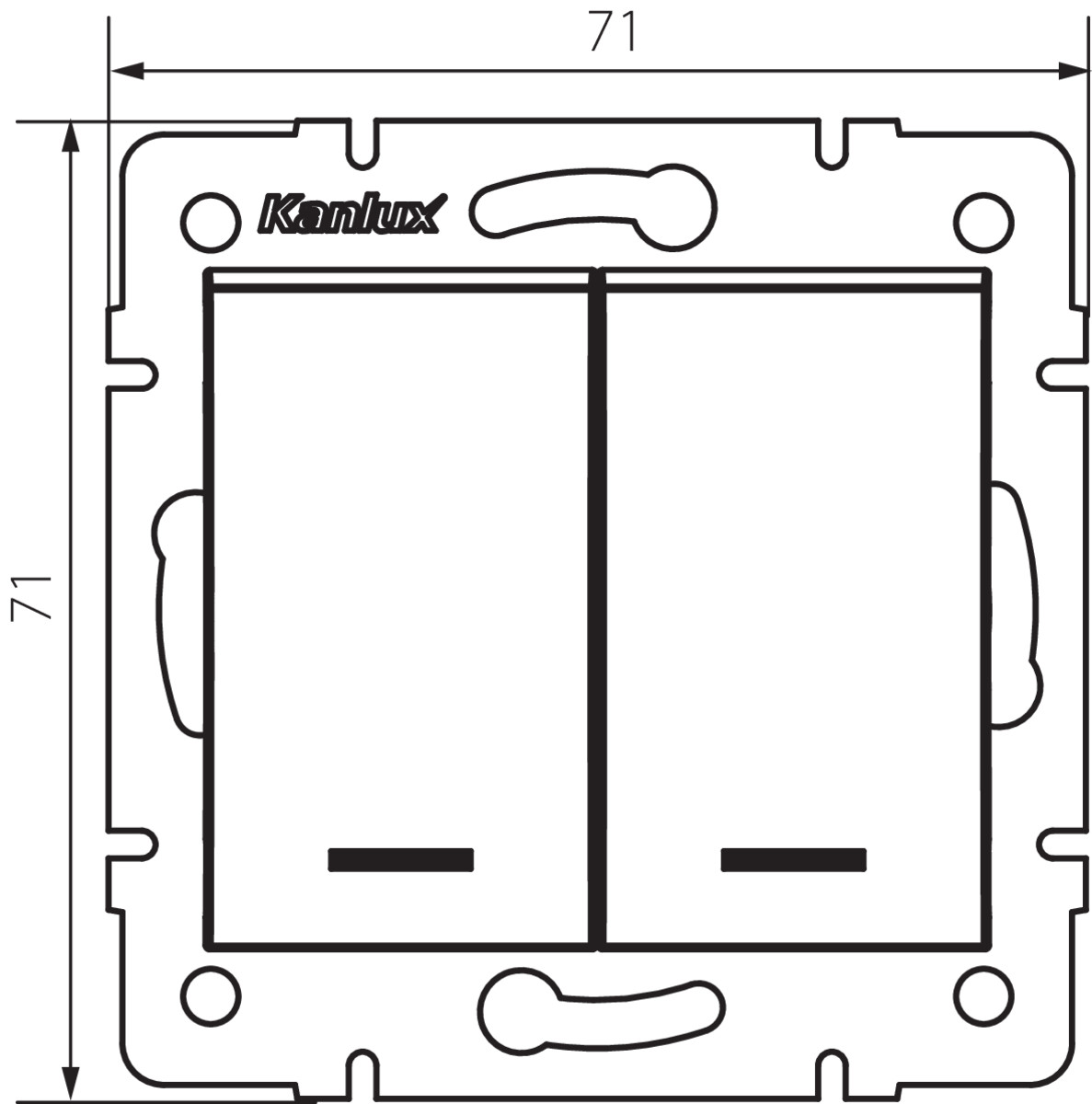

Height [mm] 71
Width [mm] 71
Weight 76g
Sales unit piece
Outer box 10
Technical data
Rated voltage [V] 250 AC
Rated current [AX] 10
Number of levers 2
IP class 20
Show more ▾
Terminal type Screw terminal
Plastic ABS
Material of contacts CuZn70

Materials
