KNU-S6D-WW-B-P1D

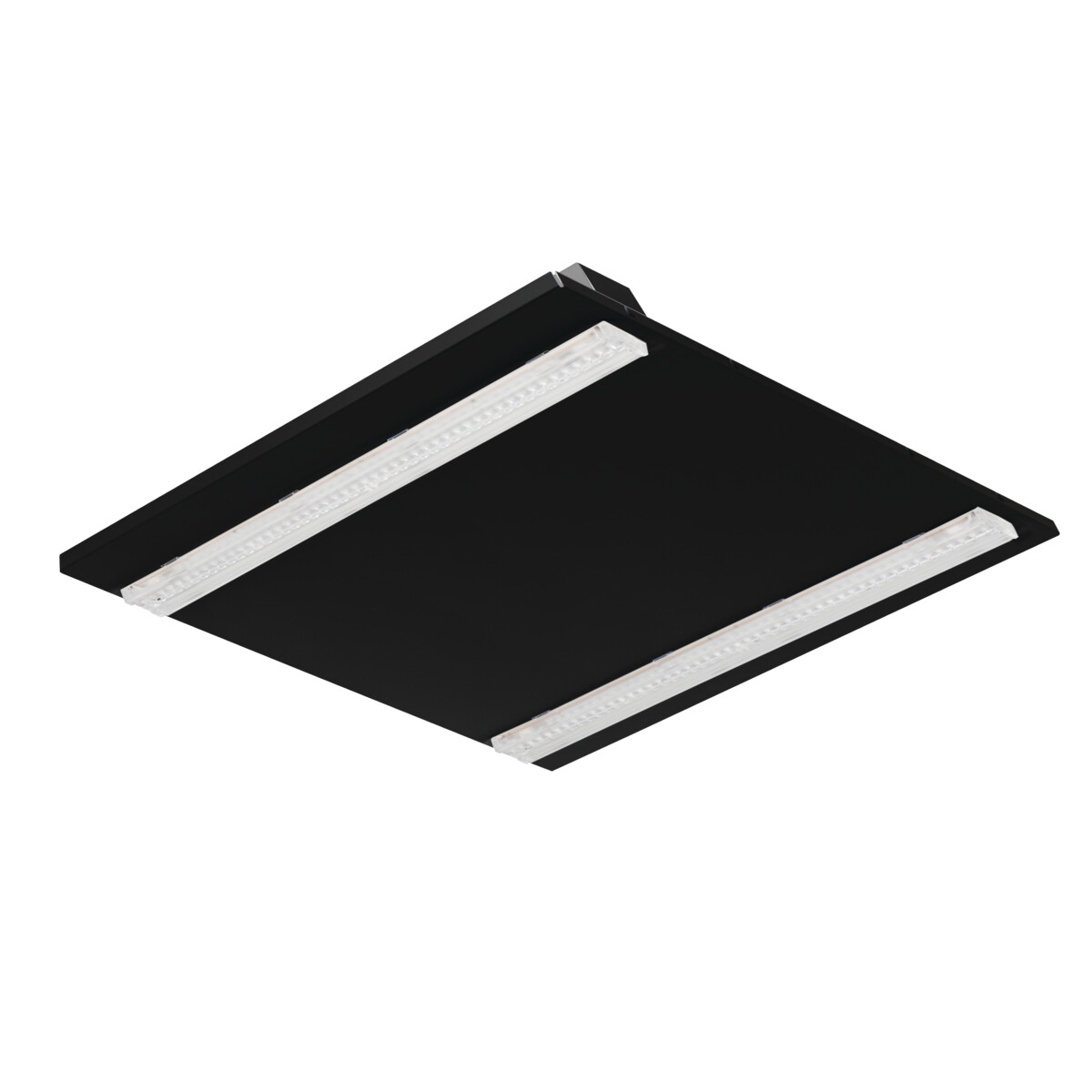

Recessed - Mounted LED Office Fixture KIENO LED 600x600 podtynkowa

KNU-S6D-WW-B-P1D

Product code: 37542 logo KANLUX

Kanlux KIENO LED is a series of fixtures from the Kanlux Factory with high luminous efficiency. It is a functional and energy-efficient solution for illuminating all types of spaces. Particularly recommended for public spaces, offices, and anywhere else requiring ample light. Furthermore, the fixtures feature a unique design and a low UGR, which are additional advantages of this solution. A wide range of parameters allows for meeting the needs of even the most demanding projects.

Product presentation

Maximum power [W] 18

Luminous flux of the light fitting [lm] 2600

Colour temperature [K] 3000

Colour black

IP class 20

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

Warranty [years] 2

EAN13 5905339375421

Colour black

Enclosure material Metal

Lampshade material plastic

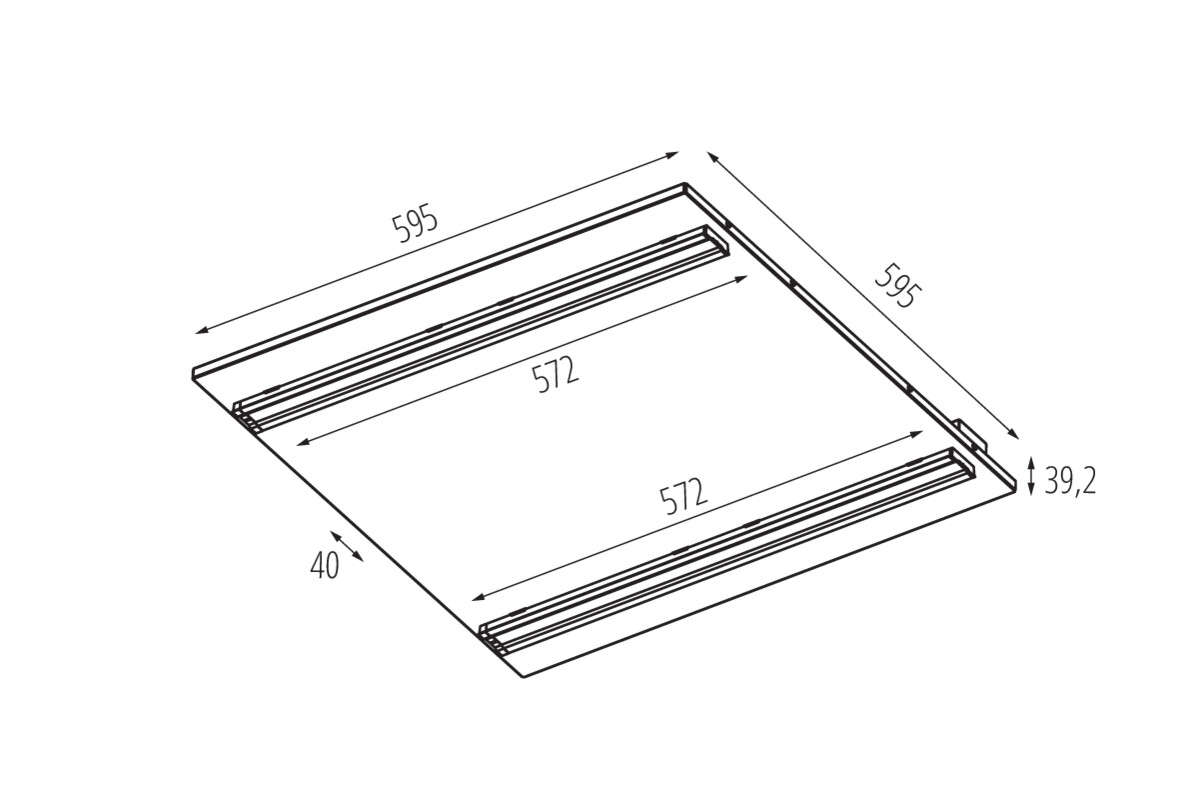

Weight and dimensions

Height [mm] 39

Width [mm] 595

Length [mm] 595

Weight 2560g

Sales unit piece

Outer box 1

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Shade type soczewka

Show more ▾

Colour black

Maximum power [W] 18

Integrated LED light source

Luminous flux of the light fitting [lm] 2600

Luminous efficiency of the lamp [lm/W] 144

Lighting angle [°] 60

Number of on/off cycles ≥30000

Service life [h] 50000

Luminous flux retention factor at the end of rated service life L90B10

Colour temperature [K] 3000

Colour uniformity [SDCM] 6

Colour-rendering index Ra 80

Diode type LED SMD

Compatible with a dimmer no

Colour temperature warm white

Class of protection against electric shock I

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Place of assembly Recessed mount in the ceiling

The product is not suitable to be covered with a heat-insulating material

Connection type Self-clamping block

Range of sections of wires used [mm2] 1,5÷2,5

Minimum distance from the illuminated object 0,5m

UGR <16

Number of modules 2

Useful luminous flux of the light source Φuse [lm] 1505

Additional information Containing product (CP)

Producent

Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification

Family card PDF, Size: 552.13 KB

Technical card PDF, Size: 472.8 KB

Support material PDF, Size: 7.21 MB

Photometric data

File ldt - KNU-S6D-WW-B-P1D LDT, Size: 8.88 KB

File ies - KNU-S6D-WW-B-P1D IES, Size: 8.65 KB

Approvals and certificates

Declaration of Conformity PDF, Size: 87.16 KB

Warranty Statement PDF, Size: 264.35 KB
