KDB-IP65-S54T

Attribute icon UV_resist Attribute icon IP65 Attribute icon IK10
KDB-IP65-S54T Kanlux
Miniatura KDB-IP65-S54T - ITS Miniatura KDB-IP65-S54T - ITS Miniatura KDB-IP65-S54T - ITS Miniatura KDB-IP65-S54T - ITS Miniatura KDB-IP65-S54T - ITS Miniatura KDB-IP65-S54T - ITS Miniatura KDB-IP65-S54T - ITS Miniatura KDB-IP65-S54T - ITS Miniatura KDB-IP65-S54T - ITS Miniatura schematu KDB-IP65-S54T

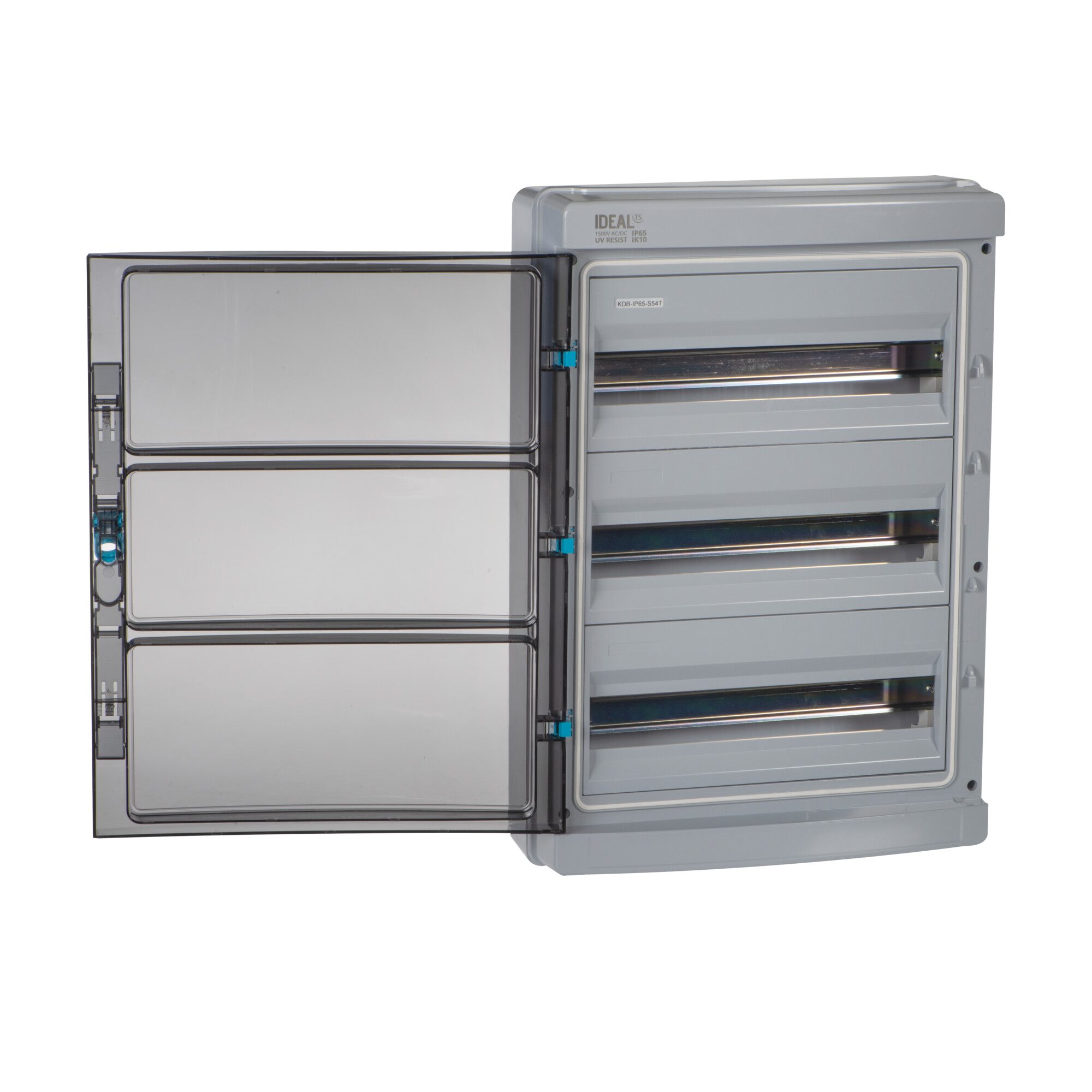

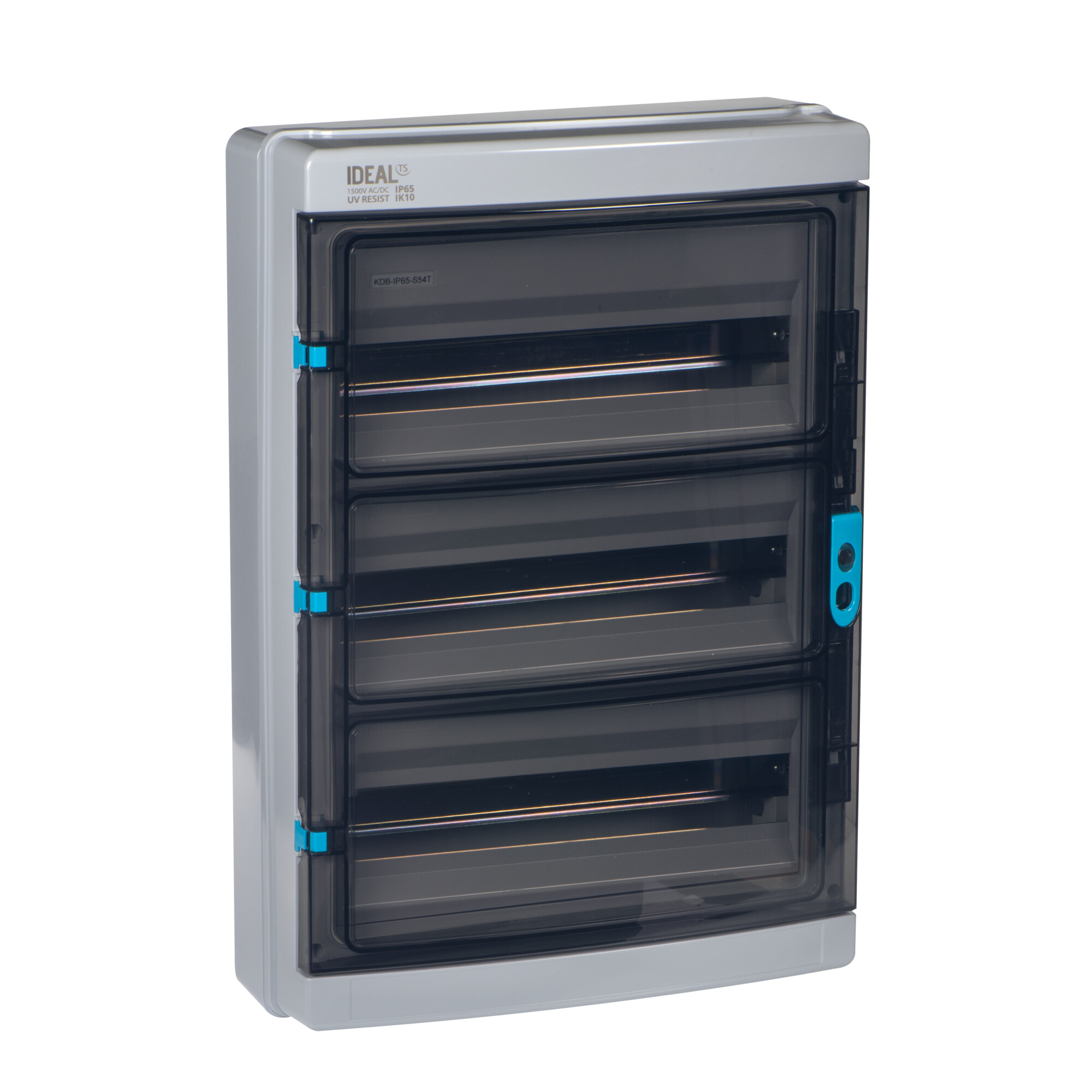

KDB-series distribution board KDB-IP65

KDB-IP65-S54T

Product code: 38456 logo ITS Product presentation

Width [mm] 150
Height [mm] 415
Number of modules 3x18P
Rated voltage [V] 1500 AC; 1500 DC
Place of assembly wall mounted
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo ITS
Attribute icon UV_resist Attribute icon IP65 Attribute icon IK10
KDB-IP65-S04T - ITS KDB-IP65-S04T - ITS
KDB-series distribution board KDB-IP65 KDB-IP65-S04T Product code: 38450

logo ITS
Attribute icon UV_resist Attribute icon IP65 Attribute icon IK10
KDB-IP65-S08T - ITS KDB-IP65-S08T - ITS
KDB-series distribution board KDB-IP65 KDB-IP65-S08T Product code: 38451

logo ITS
Attribute icon UV_resist Attribute icon IP65 Attribute icon IK10
KDB-IP65-S12T - ITS KDB-IP65-S12T - ITS
KDB-series distribution board KDB-IP65 KDB-IP65-S12T Product code: 38452

logo ITS
Attribute icon UV_resist Attribute icon IP65 Attribute icon IK10
KDB-IP65-S18T - ITS KDB-IP65-S18T - ITS
KDB-series distribution board KDB-IP65 KDB-IP65-S18T Product code: 38453

logo ITS
Attribute icon UV_resist Attribute icon IP65 Attribute icon IK10
KDB-IP65-S26T - ITS KDB-IP65-S26T - ITS
KDB-series distribution board KDB-IP65 KDB-IP65-S26T Product code: 38454

NEW NEW
logo ITS
Attribute icon UV_resist Attribute icon IP65 Attribute icon IK10
KDB-IP65-S36T - ITS KDB-IP65-S36T - ITS
KDB-series distribution board KDB-IP65 KDB-IP65-S36T Product code: 38455

Specification

General description
EAN13 5905339384560
Colour grey

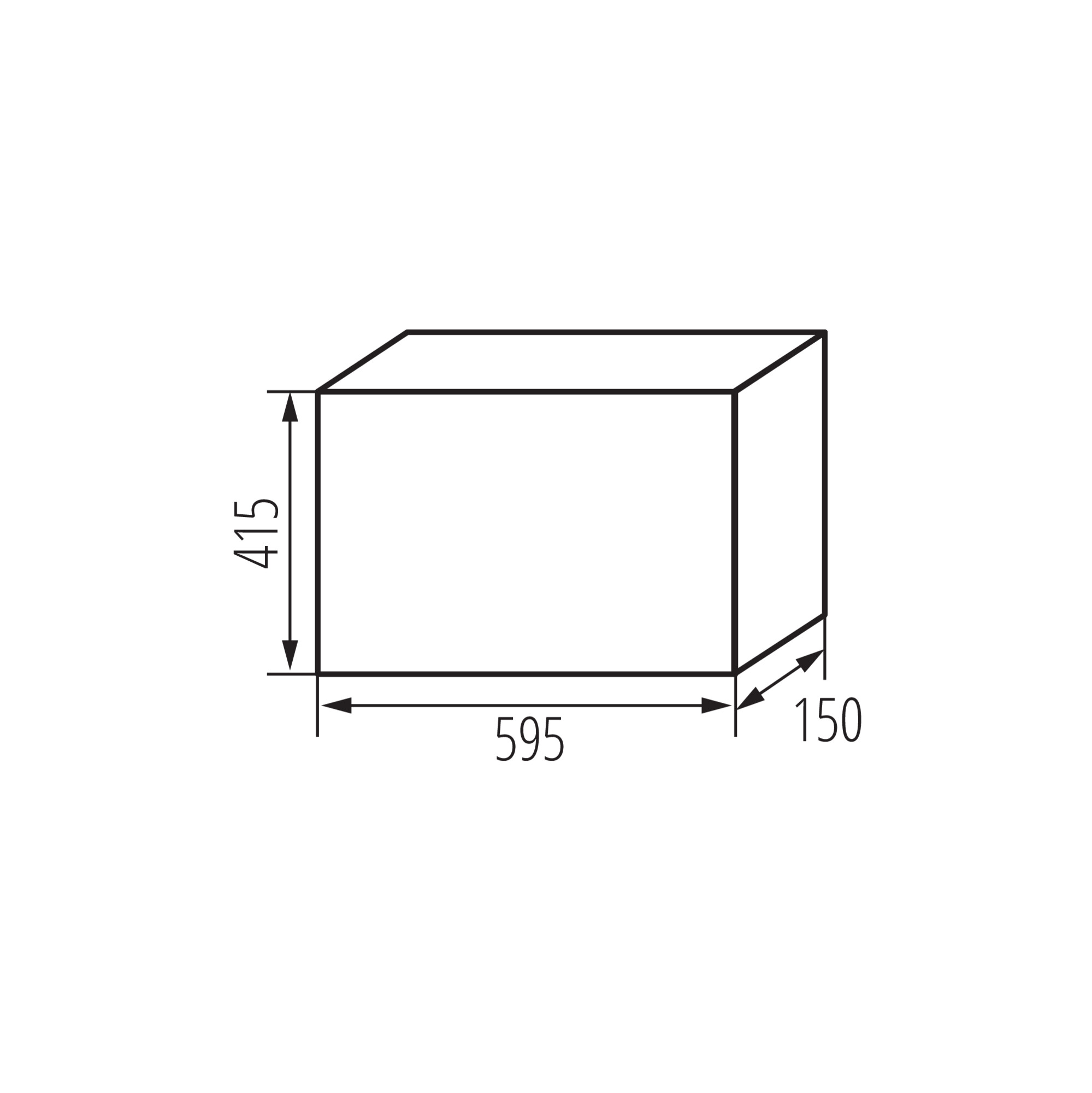

Weight and dimensions
Height [mm] 415
Width [mm] 150
Length [mm] 595
Weight 5180g
Sales unit piece
Outer box 4
Technical data
Rated voltage [V] 1500 AC; 1500 DC
Colour grey
number of rows 3
Number of modules 3x18P, 3x18P
Show more ▾
Place of assembly wall mounted
IP class 65
IK class 10
Class of protection against electric shock II
Norm PN-EN 62208, PN-EN 62208
Ambient temperature range to which the product can be exposed -25+40
Producent
Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification
Family card PDF, Size: 174.96 KB
Technical card PDF, Size: 245.18 KB
Support material PDF, Size: 1.58 MB
Handling and installation
User manual PDF, Size: 1.08 MB
Approvals and certificates
Declaration of Conformity PDF, Size: 828.43 KB
Catalogues, folders and leaflets
