KMC-25-04

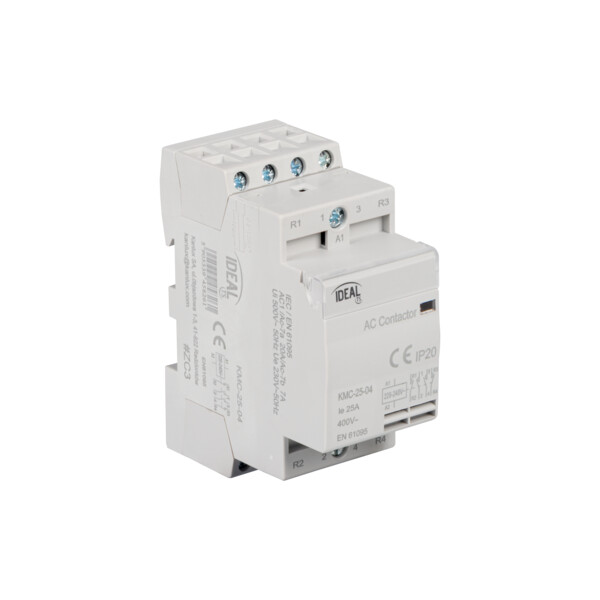

Modular contactor, 230 VAC control voltage KMC

KMC-25-04

Product code: 45827 logo ITS

Contactor is used for automatic activation of electricity receivers. Categories of use AC7a, AC7b.

Product presentation

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

EAN13 5905339901903

Colour white

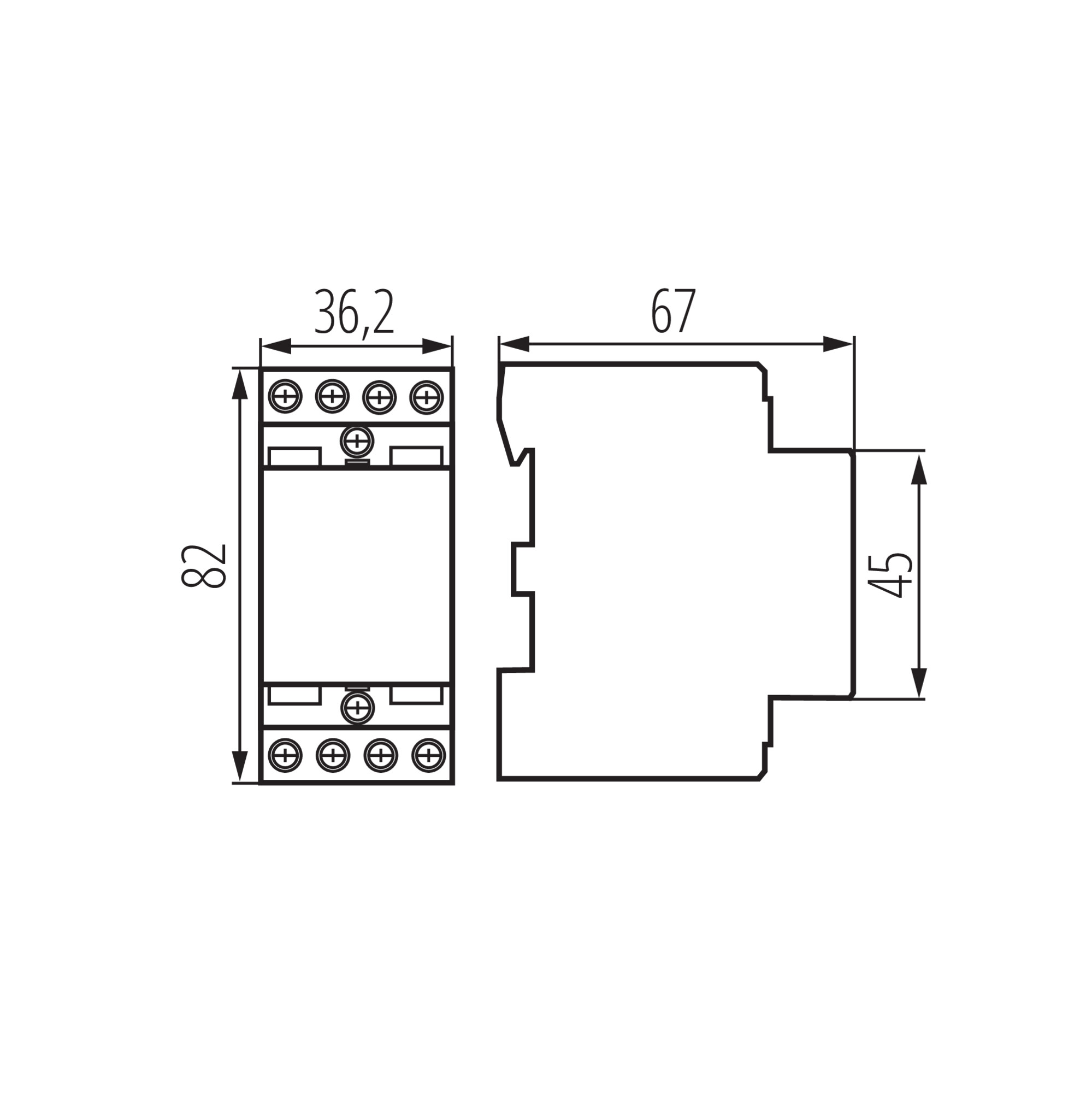

Weight and dimensions

Height [mm] 82

Width [mm] 37

Weight 214g

Sales unit piece

Outer box 6

Technical data

Rated voltage [V] 230 AC

Rated frequency [Hz] 50

Colour white

Rated current [A] 25

Show more ▾

Coil-supply voltage [V] 230V AC 50/60Hz

Number of modules 2, 2

IP class 20

Ambient temperature range to which the product can be exposed -25÷40

Utilisation category AC-7A, AC-7B

Number of n.o./n.c. contacts 0/4

Rated current I(N) AC-7B/AC-1 9A

Rated current I(N) AC-7A/AC-1 25A

Connection type Terminal block

Place of assembly na szynę TH35

Norm PN-EN 60947-4-1, PN-EN 60947-4-1

Producent

Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification

Family card PDF, Size: 551.46 KB

Technical card PDF, Size: 69.59 KB

Support material PDF, Size: 634.67 KB

Approvals and certificates

Declaration of Conformity PDF, Size: 842.18 KB

Catalogues, folders and leaflets

Catalog IDEAL TS by KANLUX PDF, Size: 17.49 MB
