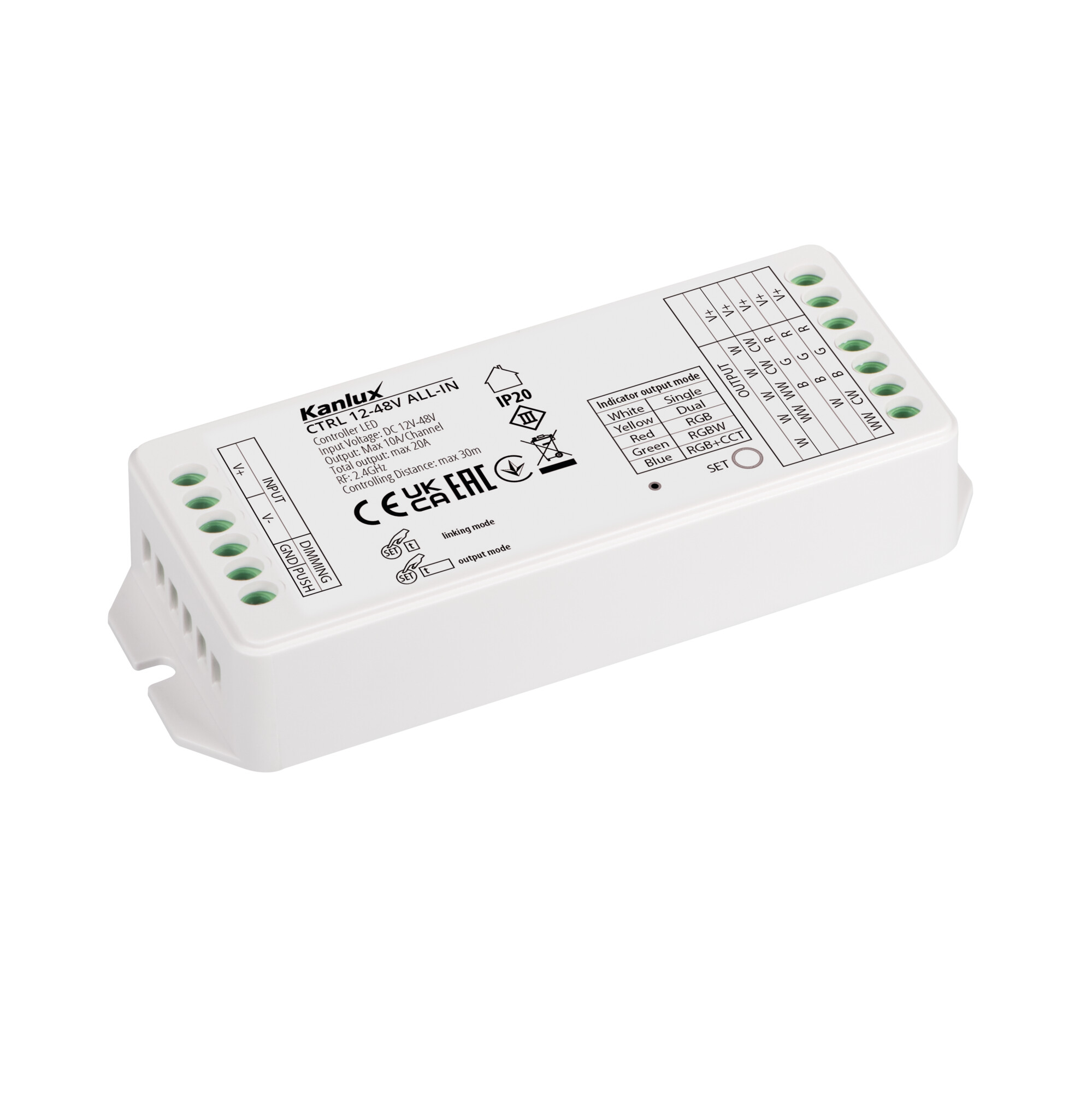

Controller for LED tapes CTRL12-48V ALL-IN

CTRL 12-48V ALL-IN

Product code: 22151 logo KANLUX

CTRL 12–48V ALL-IN is a universal LED controller compatible with single-color LED strips as well as CCT, RGB, RGBW, and RGBCCT LED strips. Support for 12V, 24V, and 48V enables flexible use in a wide range of lighting systems. It works with all Kanlux remotes, except for the REMOTE D M/RGB/CCT-B, which is intended for digital LED strips.

Product folder
Colour white
Scroll down to the full specification
Ask a question
Go to dictionary

Specification

General description
EAN13 5905339221513
Colour white
Material plastic

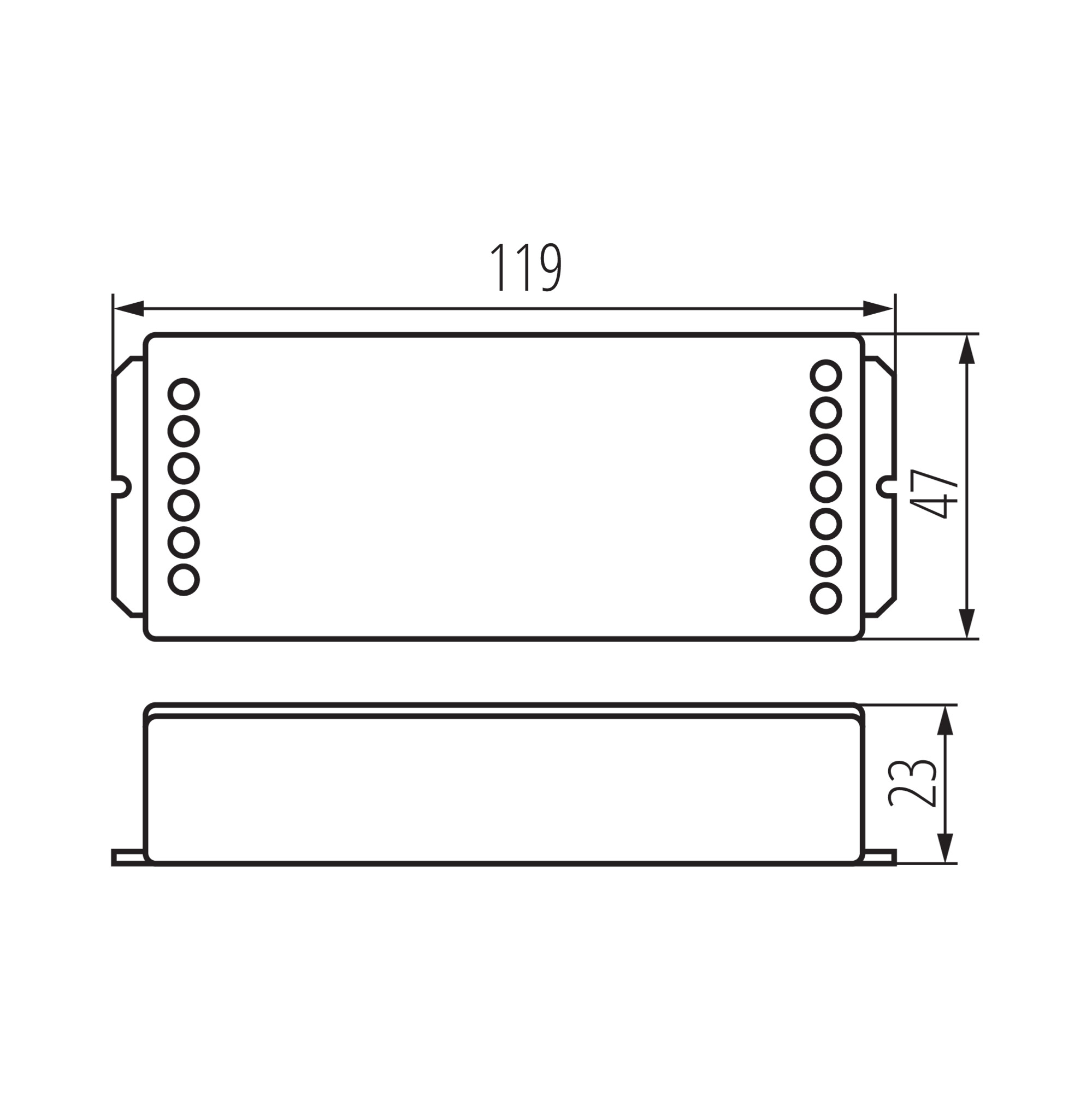

Weight and dimensions
Height [mm] 23
Width [mm] 47
Length [mm] 119
Weight 76g
Sales unit piece
Outer box 200
Technical data
Rated voltage [V] 12 DC; 24 DC; 48 DC
Rated current [A] max 20
Show more ▾
Colour white
Range [m] max 30, max 30
Class of protection against electric shock III
IP class 20
Control RF 2,4GHz, RF 2,4GHz
Connection type Terminal block
Standard cover DIM,MONO,CCT,RGB,RGBW,RGB+CCT
Type Controller for LED tapes
Producent
Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification
Family card PDF, Size: 400.8 KB
Technical card PDF, Size: 373.66 KB
Handling and installation
User manual PDF, Size: 1.92 MB
Approvals and certificates
Declaration of Conformity PDF, Size: 911.9 KB
Catalogues, folders and leaflets
Product folder PDF, Size: 8.69 MB
