ERGA 10-18W CCT-B

Attribute icon CCT0 Attribute icon gwarancja5
ERGA 10-18W CCT-B Kanlux
Miniatura ERGA 10-18W CCT-B - KANLUX Miniatura aranżacji ERGA 10-18W CCT-B Miniatura aranżacji ERGA 10-18W CCT-B Miniatura aranżacji ERGA 10-18W CCT-B Miniatura aranżacji ERGA 10-18W CCT-B Miniatura schematu ERGA 10-18W CCT-B

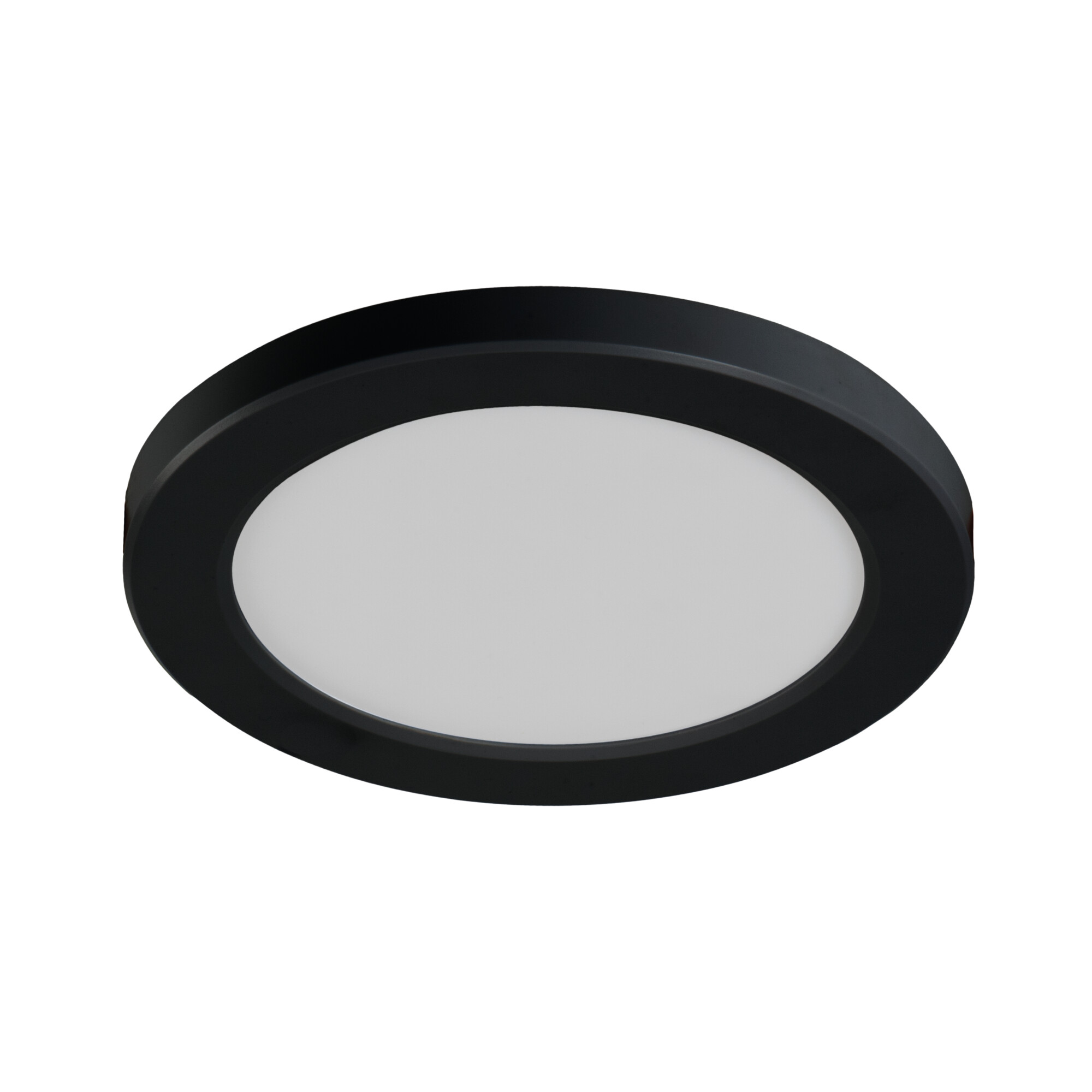

Downlight fitting ERGA

ERGA 10-18W CCT-B

Product code: 24614 logo KANLUX

Kanlux ERGA is a modern downlight fitting that allows the light output to be adjusted to the size and function of the room already at the installation stage. Thanks to the Switch Power function, the output can be selected from 10W, 15W, or 18W, while CCT adjustment allows the colour temperature to be set to 3000K, 4000K, or 6500K. Both the power and colour settings are concealed beneath a removable trim, maintaining the fitting’s clean aesthetic and making adjustment straightforward. The luminaire can be installed either recessed or surface-mounted. The range is available in matte white and matte black finishes and comes with a 5-year warranty.

Product presentation
Rated voltage [V] 220-240 AC
Maximum power [W] max 18
Luminous flux of the light fitting [lm] max 1800
Service life [h] 50000
Colour temperature [K] 3000/4000/6500
IP class 20
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
Attribute icon PIR Attribute icon CCT0 Attribute icon gwarancja5
ERGA PIR 17W CCT-B - KANLUX ERGA PIR 17W CCT-B - KANLUX
Downlight fitting ERGA ERGA PIR 17W CCT-B Product code: 24605

logo KANLUX
Attribute icon gwarancja5 Attribute icon CCT0
ERGA PIR 17W CCT-W - KANLUX ERGA PIR 17W CCT-W - KANLUX
Downlight fitting ERGA ERGA PIR 17W CCT-W Product code: 24606

logo KANLUX
Attribute icon gwarancja5 Attribute icon CCT0
ERGA 17W CCT-B - KANLUX
Downlight fitting ERGA ERGA 17W CCT-B Product code: 24607

logo KANLUX
Attribute icon CCT0 Attribute icon gwarancja5
ERGA 17W CCT-W - KANLUX
Downlight fitting ERGA ERGA 17W CCT-W Product code: 24608

NEW NEW
logo KANLUX
Attribute icon CCT0 Attribute icon gwarancja5
ERGA 10-18W CCT-W - KANLUX
Downlight fitting ERGA ERGA 10-18W CCT-W Product code: 24615

NEW NEW
logo KANLUX
Attribute icon CCT0 Attribute icon gwarancja5
ERGA PIR 10-18W CCT-B - KANLUX ERGA PIR 10-18W CCT-B - KANLUX
Downlight fitting ERGA ERGA PIR 10-18W CCT-B Product code: 24616

NEW NEW
logo KANLUX
Attribute icon CCT0 Attribute icon gwarancja5
ERGA PIR 10-18W CCT-W - KANLUX ERGA PIR 10-18W CCT-W - KANLUX
Downlight fitting ERGA ERGA PIR 10-18W CCT-W Product code: 24617

Specification

General description
Warranty [years] 5
EAN13 5905339246141
Colour black
Enclosure material plastic
Lampshade material plastic
Weight and dimensions
Height [mm] 36
Diameter [mm] 230
Weight 454g
Sales unit piece
Outer box 10
Additional features
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Show more ▾
Colour black
Maximum power [W] max 18
Integrated LED light source
Luminous flux of the light fitting [lm] max 1800
Lighting angle [°] 120
Number of on/off cycles ≥100000
Service life [h] 50000
Colour temperature [K] 3000/4000/6500
Colour uniformity [SDCM] 6
Colour-rendering index Ra 80
Diode type LED SMD
Compatible with a dimmer no
Colour temperature warm white,white,cold white
Class of protection against electric shock II
IP class 20
Ambient temperature range to which the product can be exposed 5÷25
Place of assembly wall mounted,ceiling mounted,Recessed mount in the ceiling
The product is not suitable to be covered with a heat-insulating material
Connection type Terminal block
Range of sections of wires used [mm2] 0,5-2,5
Wielkość otworu montażowego [mm] Ø65-160
Minimum distance from the illuminated object 0,5m
Luminous efficiency of the lamp [lm/W] max 100
Additional information Containing product (CP)
Shape round
Producent
Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification
Family card PDF, Size: 568.7 KB
Technical card PDF, Size: 310.9 KB
Support material PDF, Size: 6.24 MB
Handling and installation
User manual PDF, Size: 2.29 MB
Warranty
Warranty Statement PDF, Size: 132.68 KB
Approvals and certificates
Declaration of Conformity PDF, Size: 842.19 KB
