ERGA PIR 10-18W CCT-B

Attribute icon CCT0 Attribute icon gwarancja5
ERGA PIR 10-18W CCT-B Kanlux
Miniatura ERGA PIR 10-18W CCT-B - KANLUX Miniatura ERGA PIR 10-18W CCT-B - KANLUX Miniatura ERGA PIR 10-18W CCT-B - KANLUX Miniatura ERGA PIR 10-18W CCT-B - KANLUX Miniatura aranżacji ERGA PIR 10-18W CCT-B Miniatura aranżacji ERGA PIR 10-18W CCT-B Miniatura aranżacji ERGA PIR 10-18W CCT-B Miniatura aranżacji ERGA PIR 10-18W CCT-B Miniatura schematu ERGA PIR 10-18W CCT-B

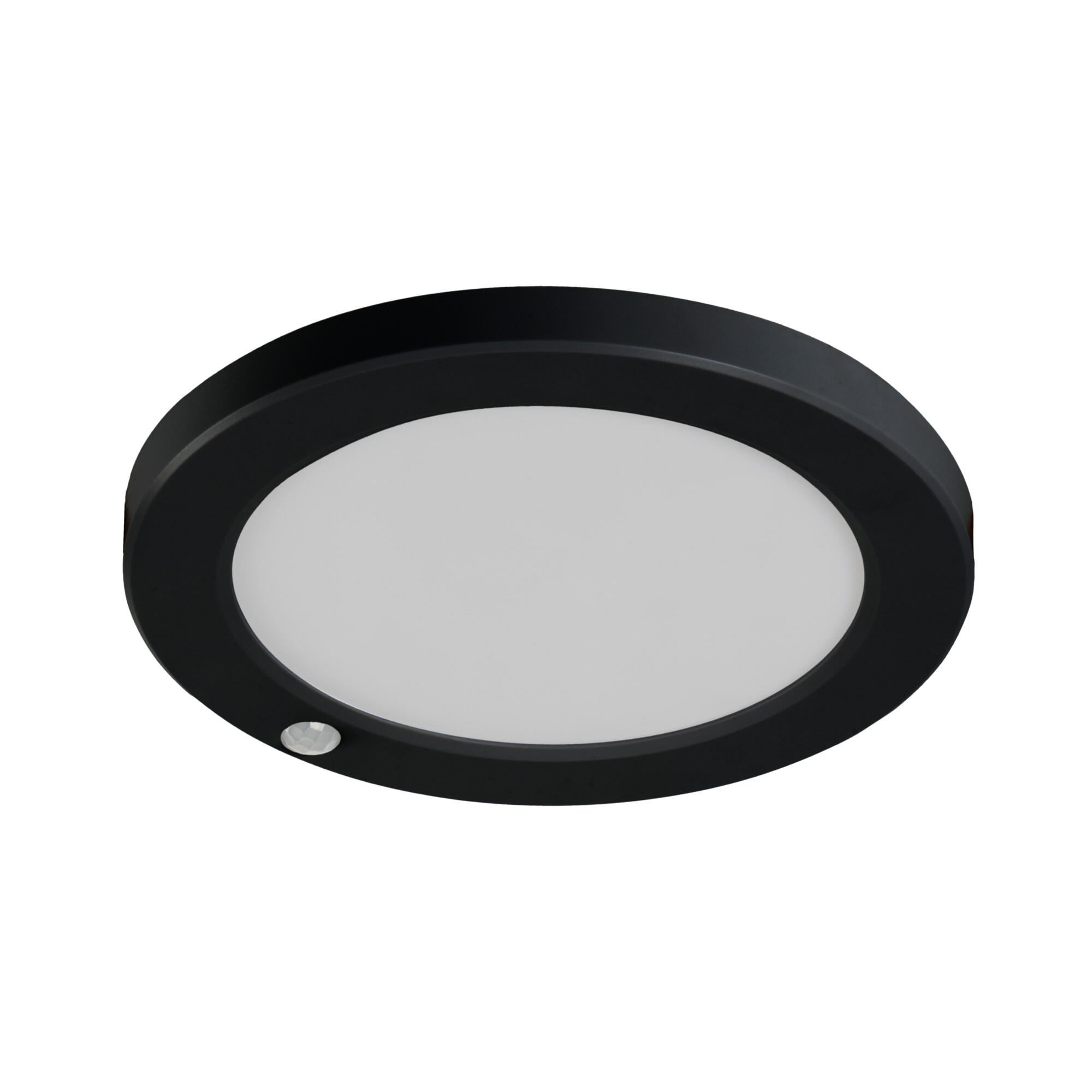

Downlight fitting ERGA

ERGA PIR 10-18W CCT-B

Product code: 24616 logo KANLUX

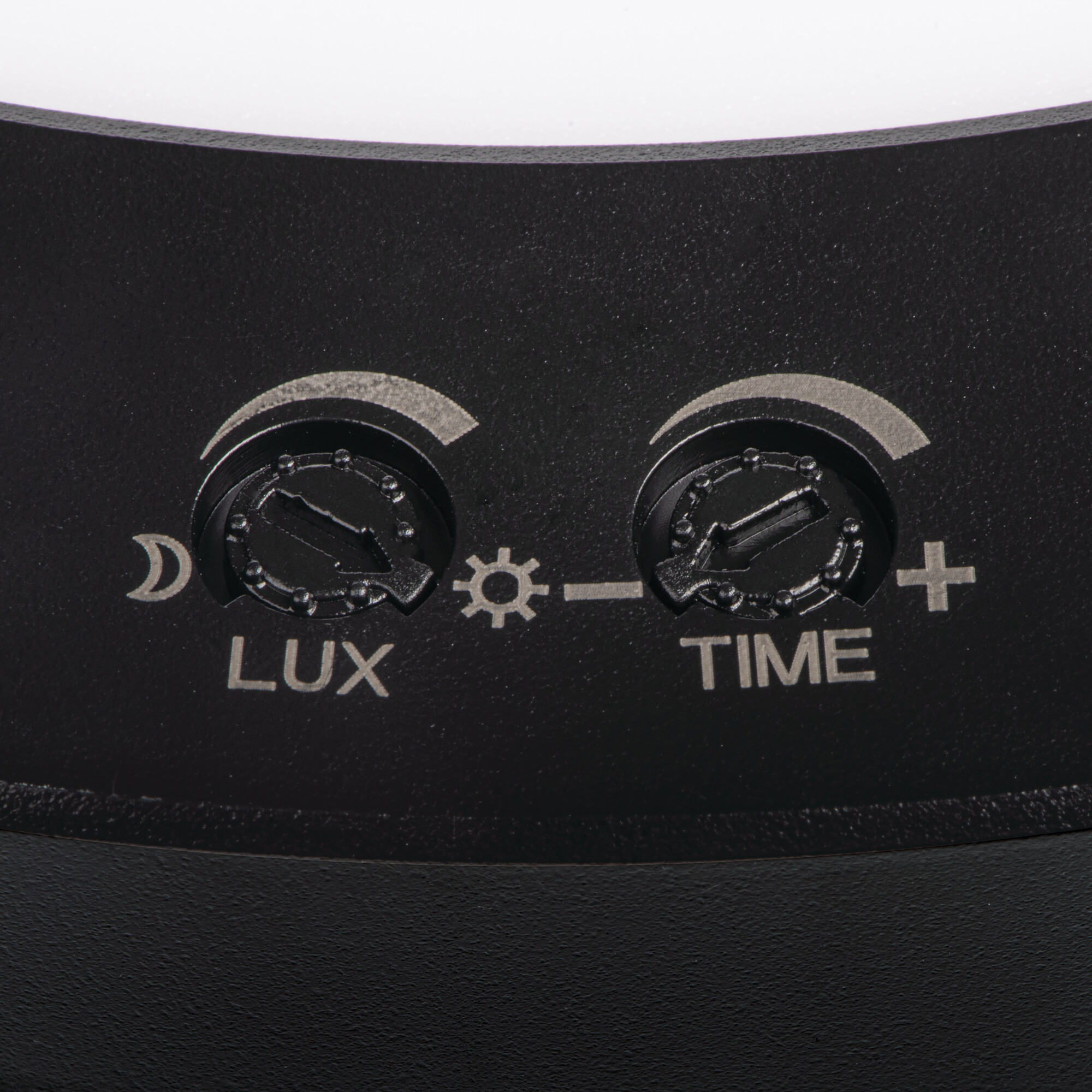

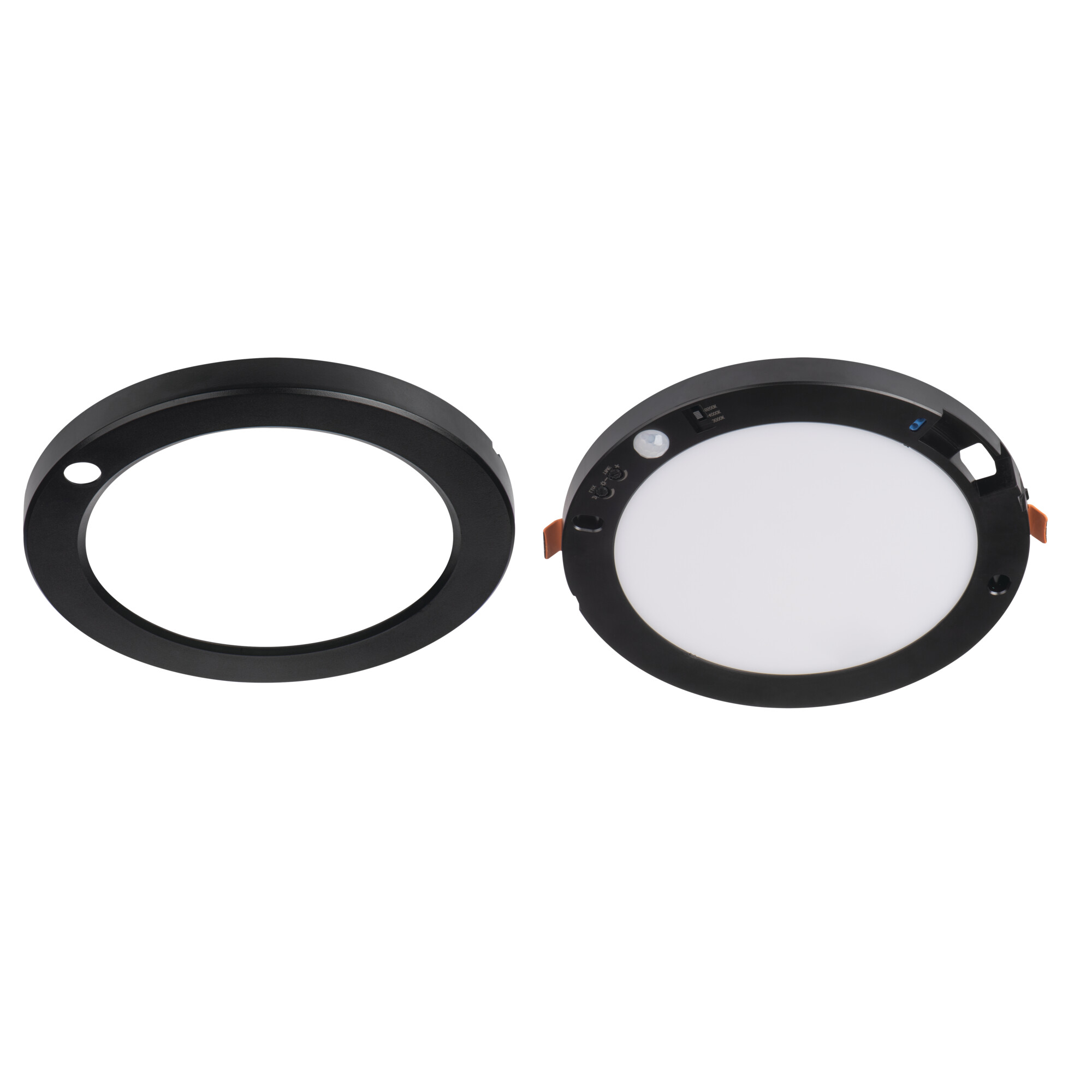

Kanlux ERGA is a modern downlight fitting that allows you to adjust the lighting to the size and function of the room already at the installation stage. Thanks to the Switch Power function, you can choose between 10W, 15W, or 18W power settings, while the adjustable CCT feature allows you to select a light colour temperature of 3000K, 4000K, or 6500K. The power, colour temperature, and PIR sensor settings are hidden beneath a removable bezel, preserving the fitting’s clean aesthetic while ensuring easy operation. The range is available both with and without a PIR sensor, in matte white and matte black finishes, and the entire series comes with a 5-year warranty.

Product presentation
Rated voltage [V] 220-240 AC
Maximum power [W] max 18
Luminous flux of the light fitting [lm] max 1800
Service life [h] 50000
Colour temperature [K] 3000/4000/6500
IP class 20
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
Attribute icon PIR Attribute icon CCT0 Attribute icon gwarancja5
ERGA PIR 17W CCT-B - KANLUX ERGA PIR 17W CCT-B - KANLUX
Downlight fitting ERGA ERGA PIR 17W CCT-B Product code: 24605

logo KANLUX
Attribute icon gwarancja5 Attribute icon CCT0
ERGA PIR 17W CCT-W - KANLUX ERGA PIR 17W CCT-W - KANLUX
Downlight fitting ERGA ERGA PIR 17W CCT-W Product code: 24606

logo KANLUX
Attribute icon gwarancja5 Attribute icon CCT0
ERGA 17W CCT-B - KANLUX
Downlight fitting ERGA ERGA 17W CCT-B Product code: 24607

logo KANLUX
Attribute icon CCT0 Attribute icon gwarancja5
ERGA 17W CCT-W - KANLUX
Downlight fitting ERGA ERGA 17W CCT-W Product code: 24608

NEW NEW
logo KANLUX
Attribute icon CCT0 Attribute icon gwarancja5
ERGA 10-18W CCT-B - KANLUX
Downlight fitting ERGA ERGA 10-18W CCT-B Product code: 24614

NEW NEW
logo KANLUX
Attribute icon CCT0 Attribute icon gwarancja5
ERGA 10-18W CCT-W - KANLUX
Downlight fitting ERGA ERGA 10-18W CCT-W Product code: 24615

NEW NEW
logo KANLUX
Attribute icon CCT0 Attribute icon gwarancja5
ERGA PIR 10-18W CCT-W - KANLUX ERGA PIR 10-18W CCT-W - KANLUX
Downlight fitting ERGA ERGA PIR 10-18W CCT-W Product code: 24617

Specification

General description
Warranty [years] 5
EAN13 5905339246165
Colour black
Enclosure material plastic
Lampshade material plastic
Weight and dimensions

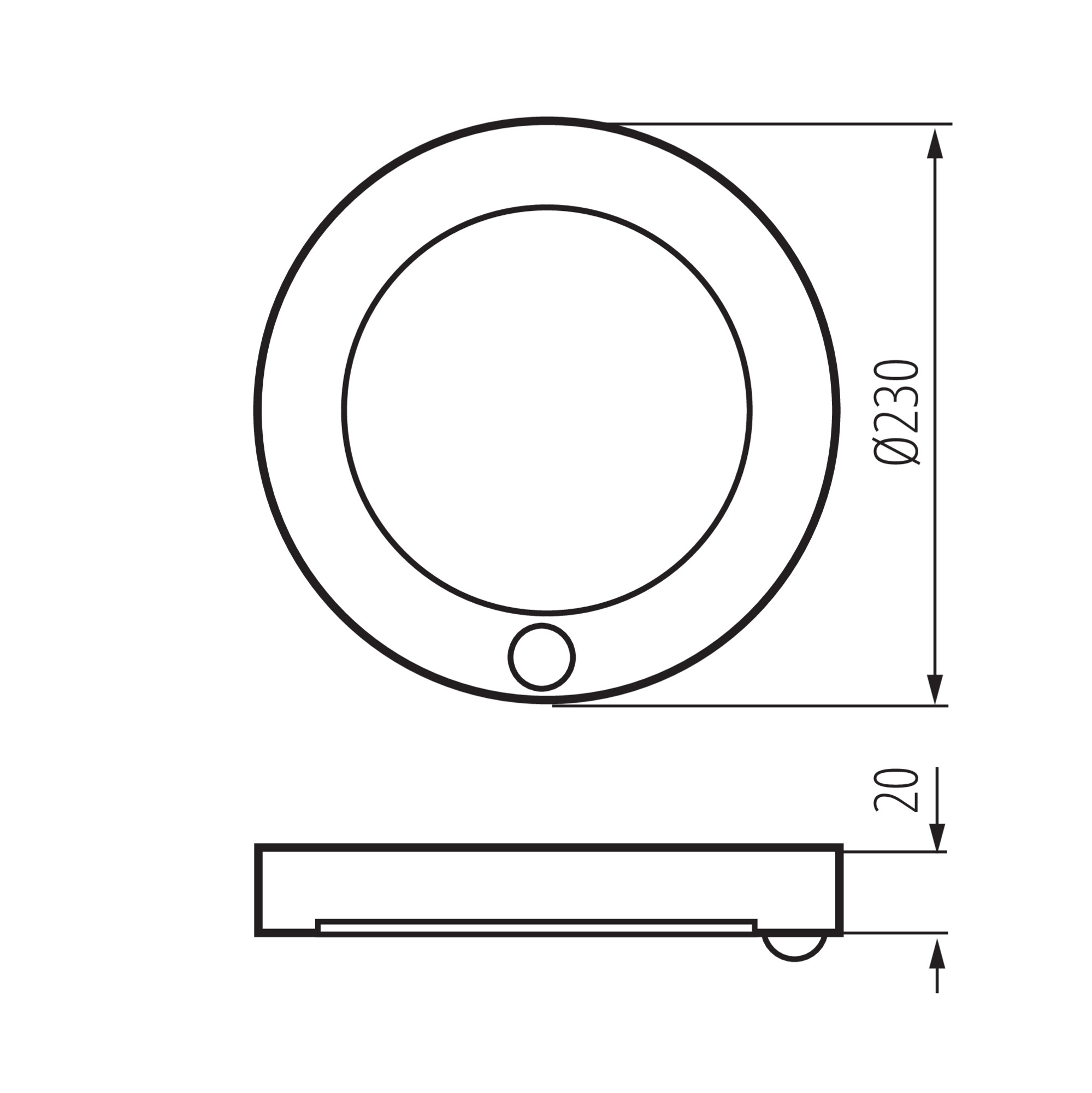

Height [mm] 20
Diameter [mm] 230
Weight 454g
Sales unit piece
Outer box 10
Additional features
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Show more ▾
Colour black
Maximum power [W] max 18
Integrated LED light source
Luminous flux of the light fitting [lm] max 1800
Lighting angle [°] 120
Number of on/off cycles ≥100000
Service life [h] 50000
Colour temperature [K] 3000/4000/6500
Colour uniformity [SDCM] 6
Colour-rendering index Ra 80
Diode type LED SMD
Compatible with a dimmer no
Colour temperature warm white,white,cold white
Class of protection against electric shock II
IP class 20
Ambient temperature range to which the product can be exposed 5÷25
Place of assembly wall mounted,ceiling mounted,Recessed mount in the ceiling
The product is not suitable to be covered with a heat-insulating material
Connection type Terminal block
Range of sections of wires used [mm2] 0,5-2,5
Wielkość otworu montażowego [mm] Ø65-160
Minimum distance from the illuminated object 0,5m
Luminous efficiency of the lamp [lm/W] max 100
Additional information Containing product (CP)
Shape round

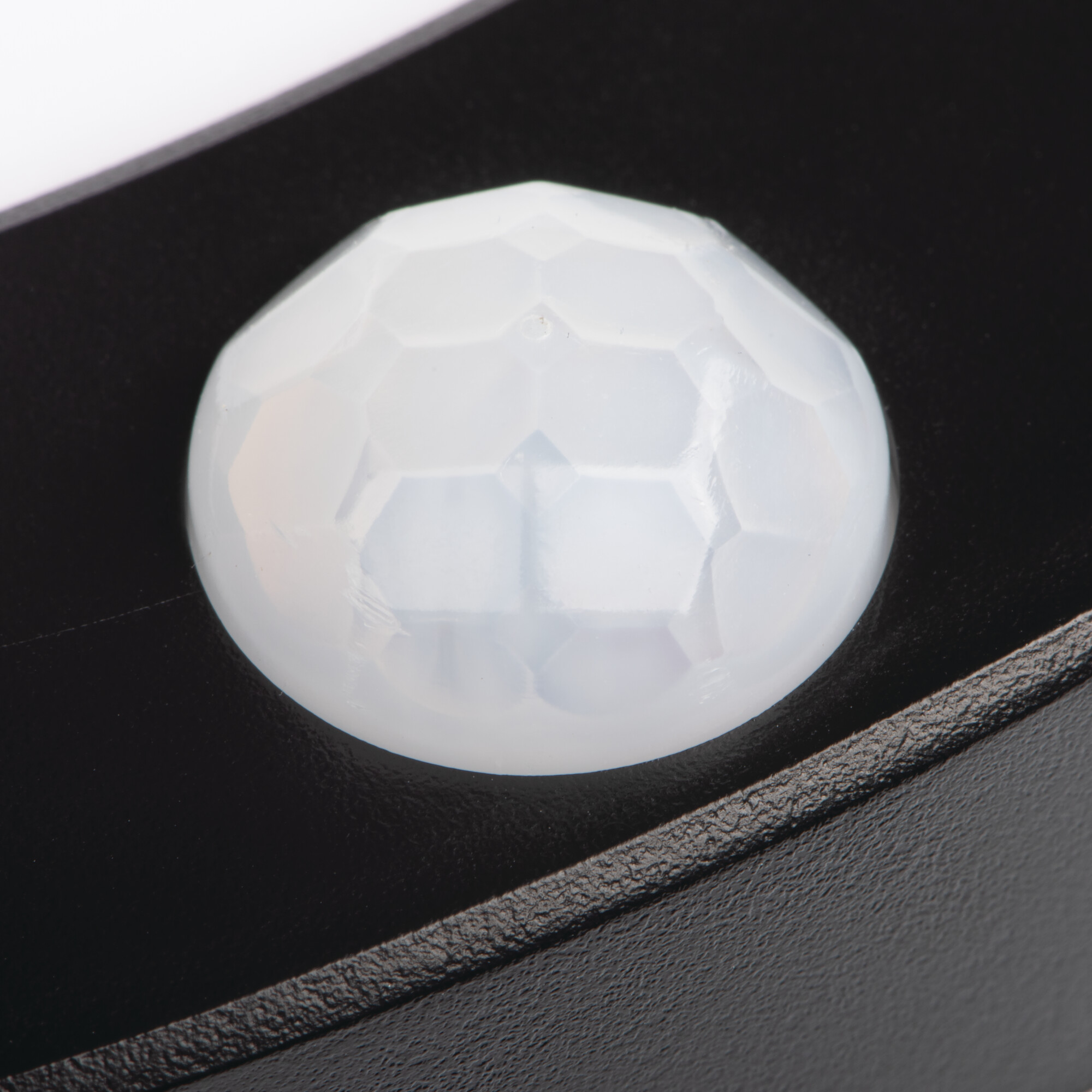

Sensor type PIR
Sensor-operation time [second-minute] 10s-5min
sensor working angle [°] H360/V120
Sensor range[m] max 8
Movement detection yes
Illumination-level setpoint by which the sensor detects movement [lx] 3-2000
Producent
Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification
Family card PDF, Size: 568.7 KB
Technical card PDF, Size: 311.45 KB
Support material PDF, Size: 6.24 MB
Handling and installation
User manual PDF, Size: 2.41 MB
Warranty
Warranty Statement PDF, Size: 132.68 KB
Approvals and certificates
Declaration of Conformity PDF, Size: 842.19 KB

Before downloading the materials made available through this website in order to use them for further marketing or commercial purposes, please contact the Kanlux SA headquarters by sending an inquiry to kanlux@kanlux.pl concerning the conditions under which you will be able to use the Kanlux SA trademark or Kanlux SA materials protected by copyright. The use of materials downloaded from this website without our consent is illegal and violates our rights.

OPRAWA LED ERGA PIR 10-18W CCT-B

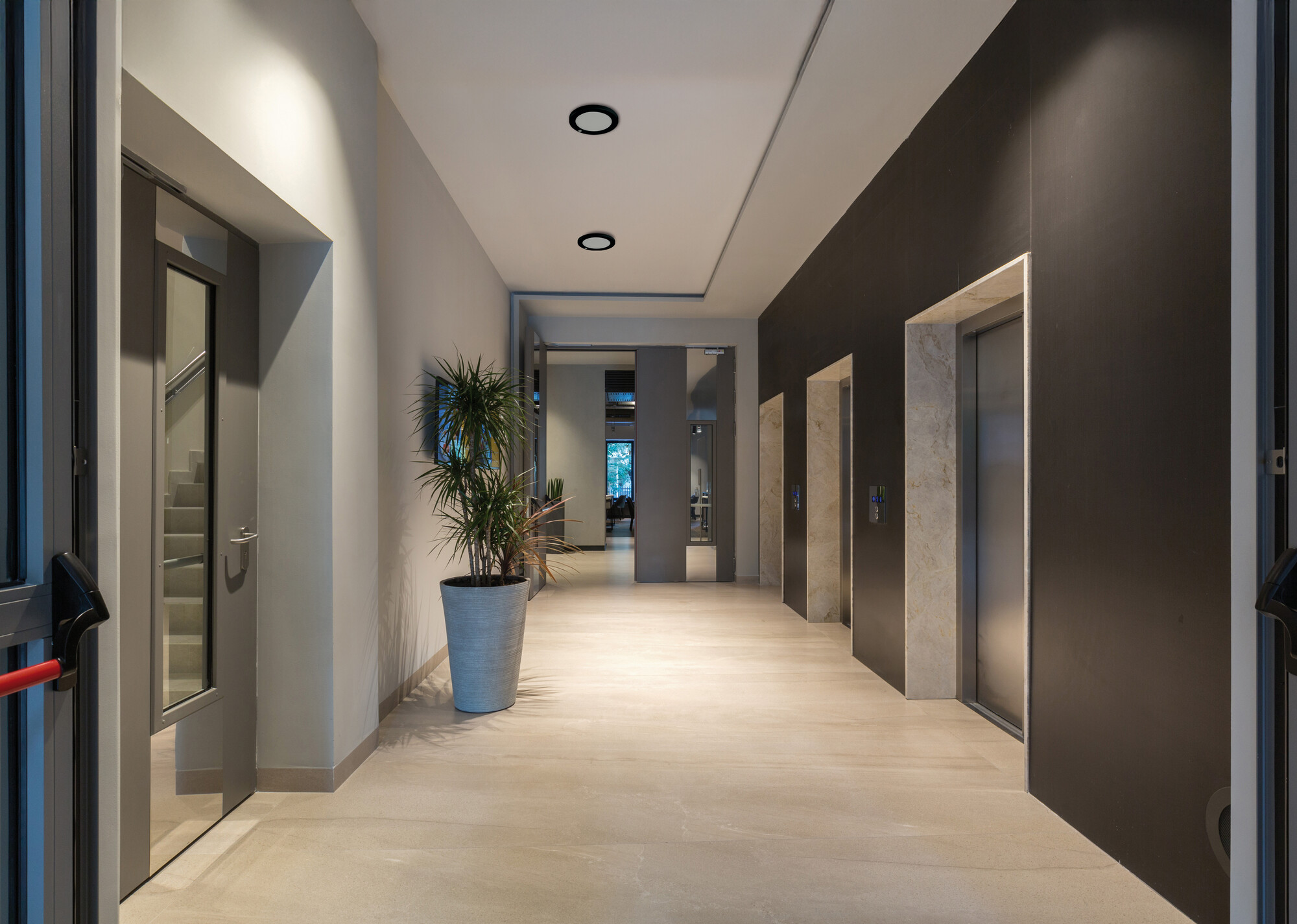

ERGA PIR 10-18W CCT-B - KANLUX ERGA PIR 10-18W CCT-B - KANLUX ERGA PIR 10-18W CCT-B - KANLUX Aranżacja ERGA PIR 10-18W CCT-B Aranżacja ERGA PIR 10-18W CCT-B Aranżacja ERGA PIR 10-18W CCT-B Aranżacja ERGA PIR 10-18W CCT-B
