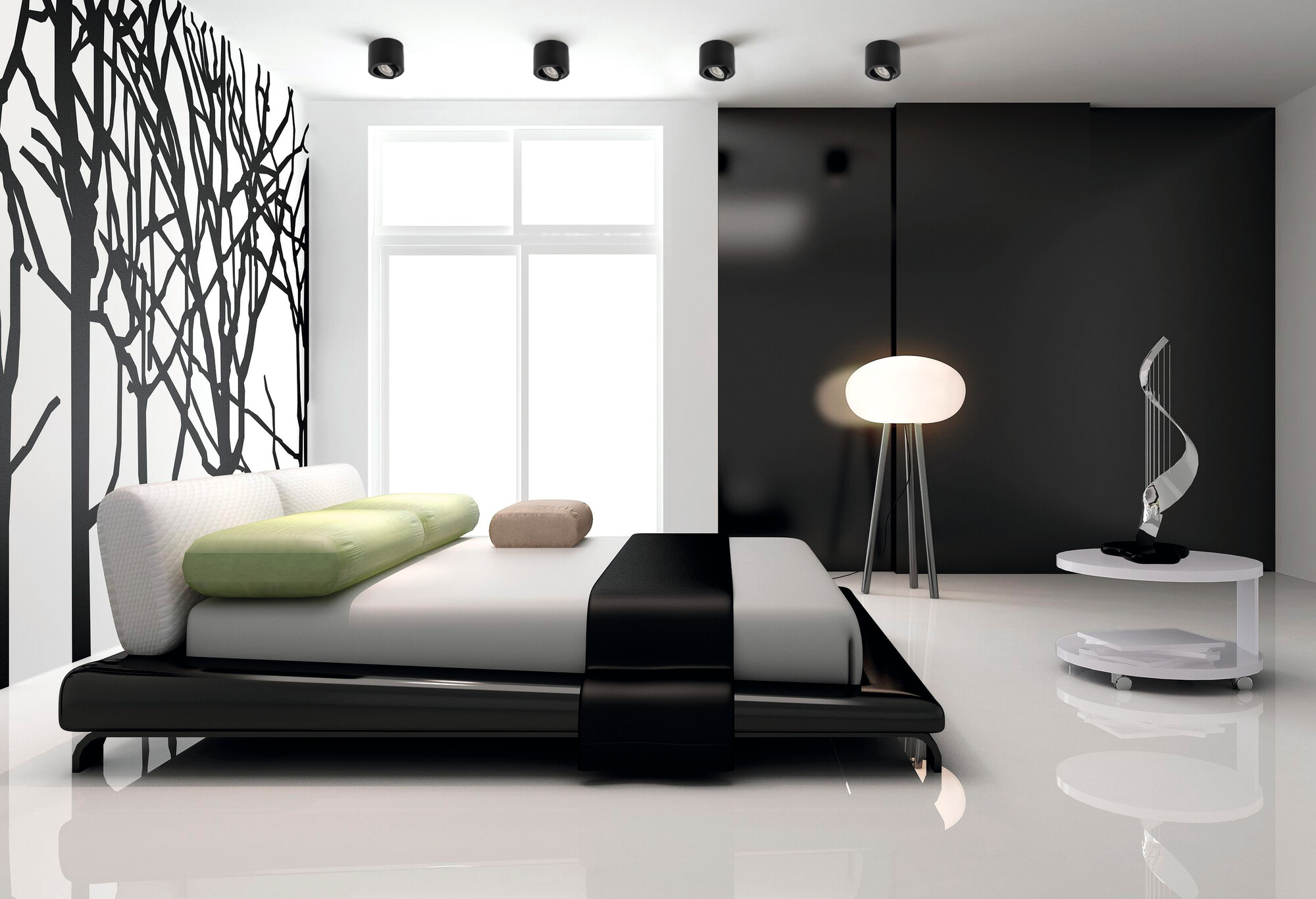

Miniatura aranżacji BORD ONE DLP-50-B

Miniatura schematu BORD ONE DLP-50-B

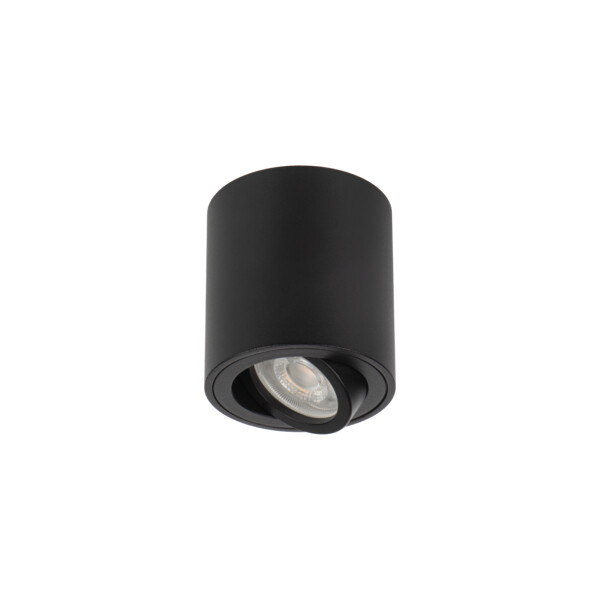

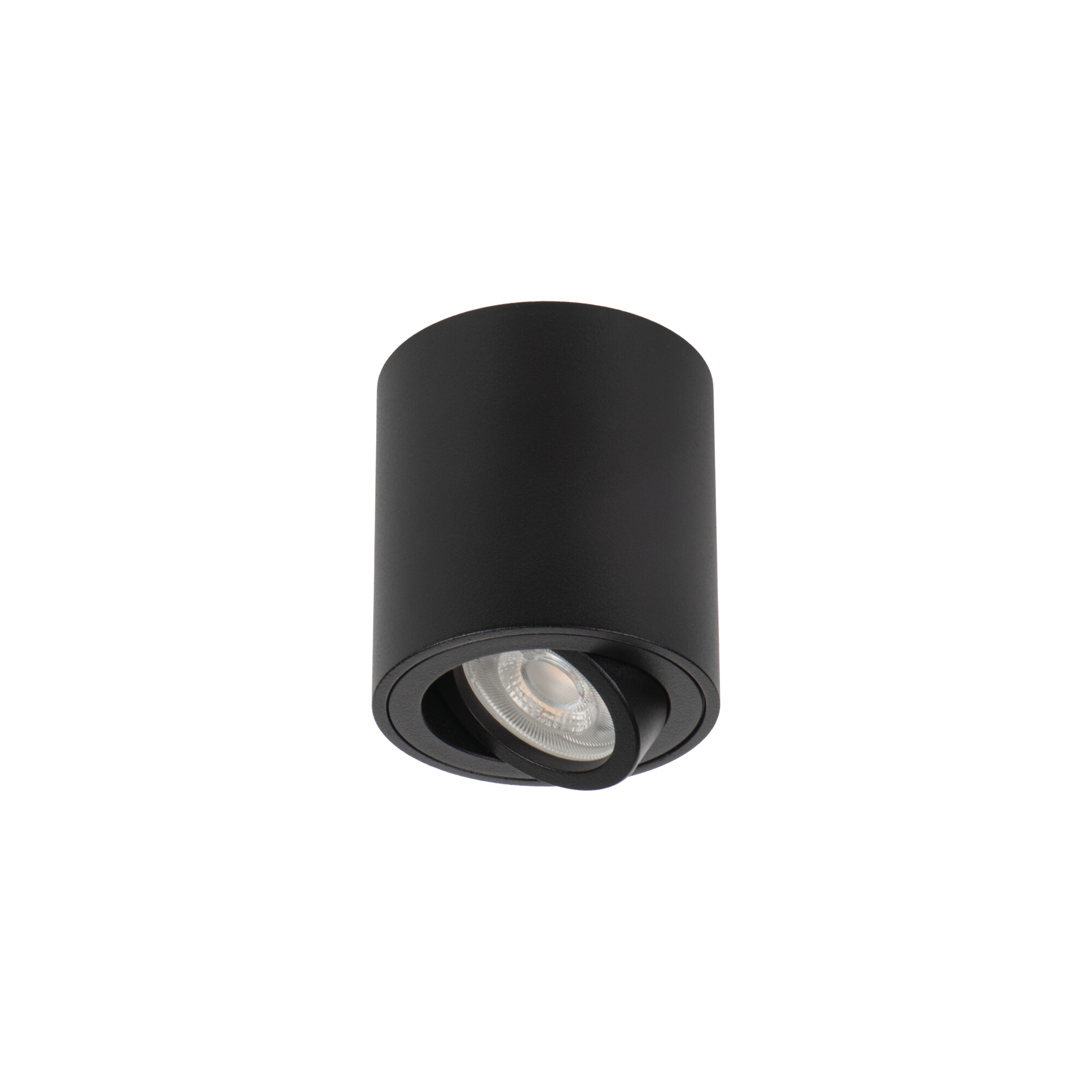

Ceiling-mounted spotlight fitting BORD ONE

BORD ONE DLP-50-B

Product code: 28785 logo KANLUX

The Kanlux BORD ONE is a new, smaller, and economical version of the popular BORD fixture, distinguished by exceptionally simple installation. Simply attach the metal base to the ceiling and screw the entire fixture onto it, significantly reducing installation time. Like the classic BORD, the ONE model is compatible with GU10 LED bulbs up to 10W and is available in a matte black or white finish. Thanks to its aluminum housing, it combines durability with an elegant appearance, suitable for both residential and commercial settings.

Product presentation

Rated voltage [V] 220-240 AC

Maximum power [W] max 10

Cap GU10

Light source PAR16

Lighting-fixture angle regulation [°] 20

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

EAN13 5905339287854

Colour black

Enclosure material aluminum alloy

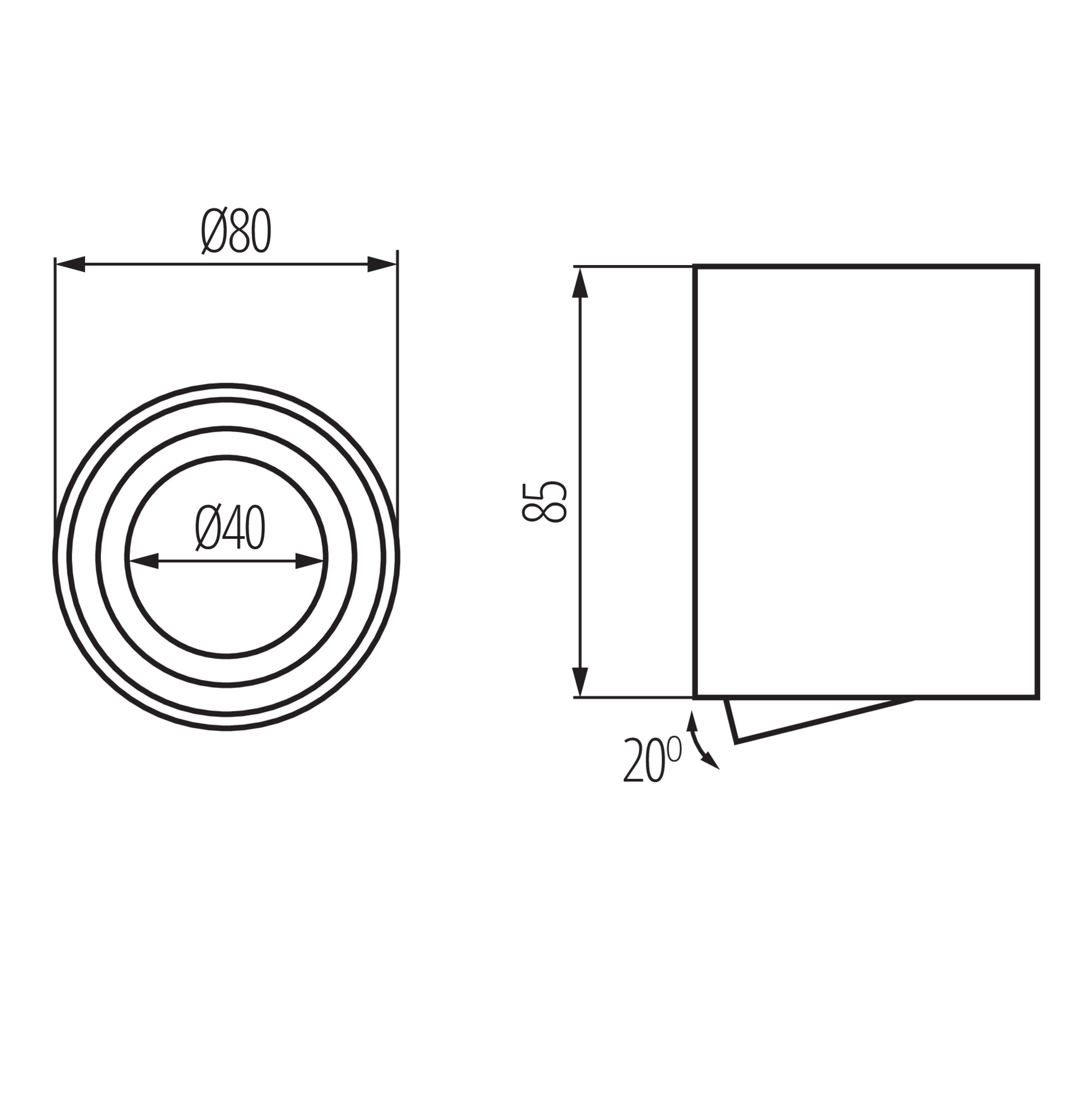

Weight and dimensions

Height [mm] 85

Diameter [mm] 80

Weight 170g

Sales unit piece

Outer box 20

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour black

Maximum power [W] max 10

Light source PAR16

Cap GU10

Class of protection against electric shock I

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Place of assembly ceiling mounted

Lighting-fixture angle regulation in one axis

Lighting-fixture angle regulation [°] 20

Connection type Bolt terminal block

Range of sections of wires used [mm2] 1÷2,5

Minimum distance from the illuminated object 0,5m

Light source included no

Producent

Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification

Family card PDF, Size: 395.18 KB

Technical card PDF, Size: 596.21 KB

Support material PDF, Size: 1.92 MB

Handling and installation

User manual PDF, Size: 540.26 KB
