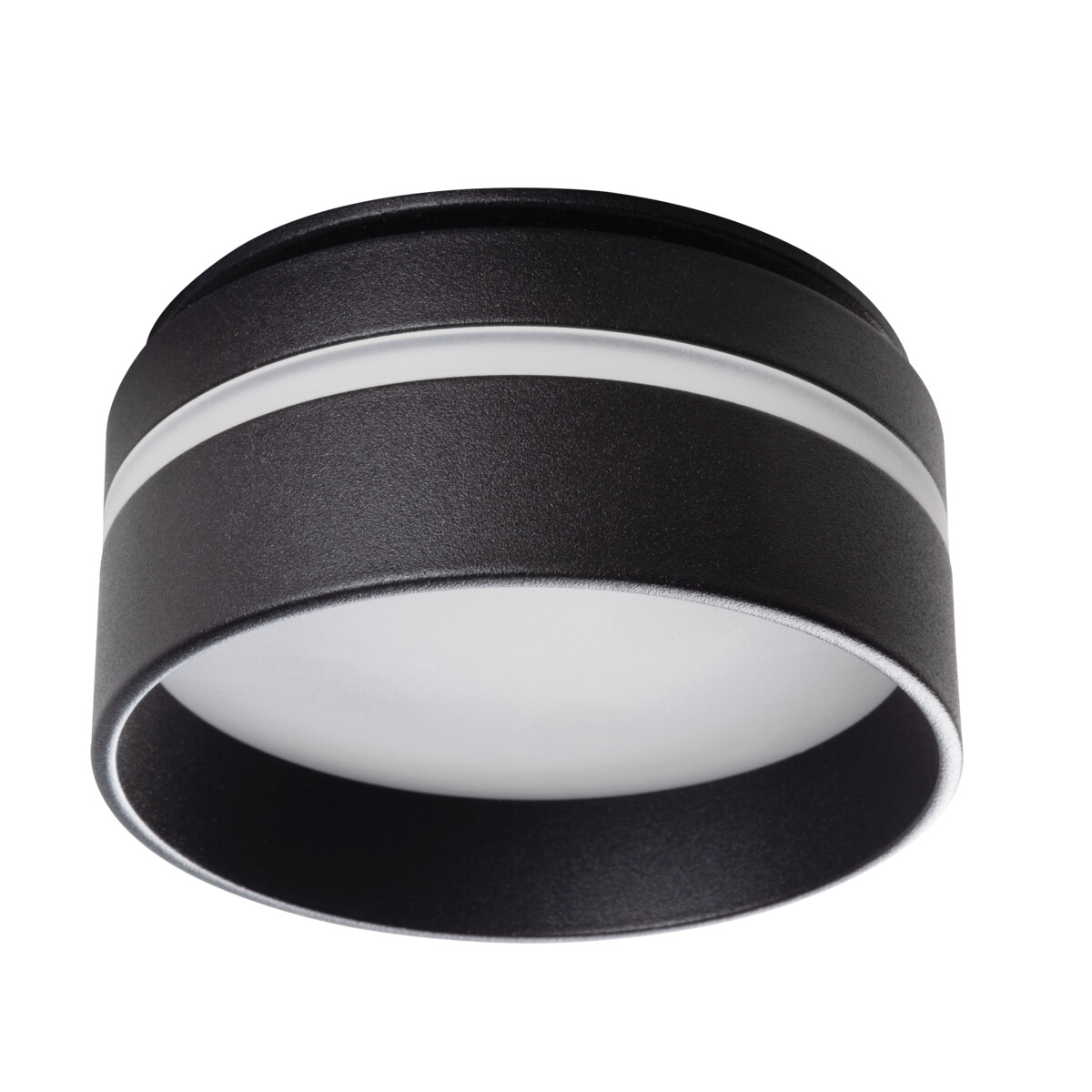

Ring for spotlight fittings GOVIK

GOVIK-ST DSO-B

Product code: 29237 logo KANLUX

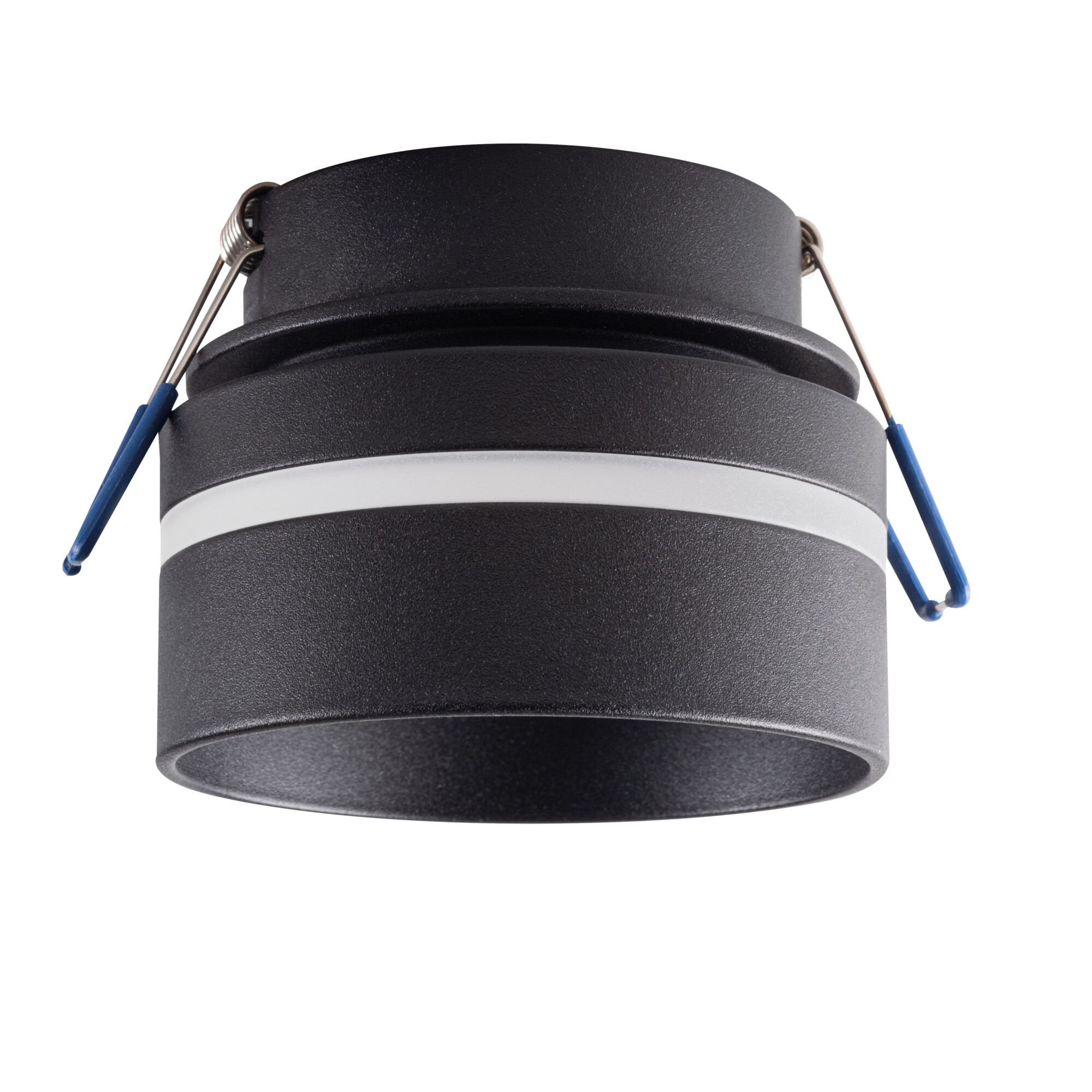

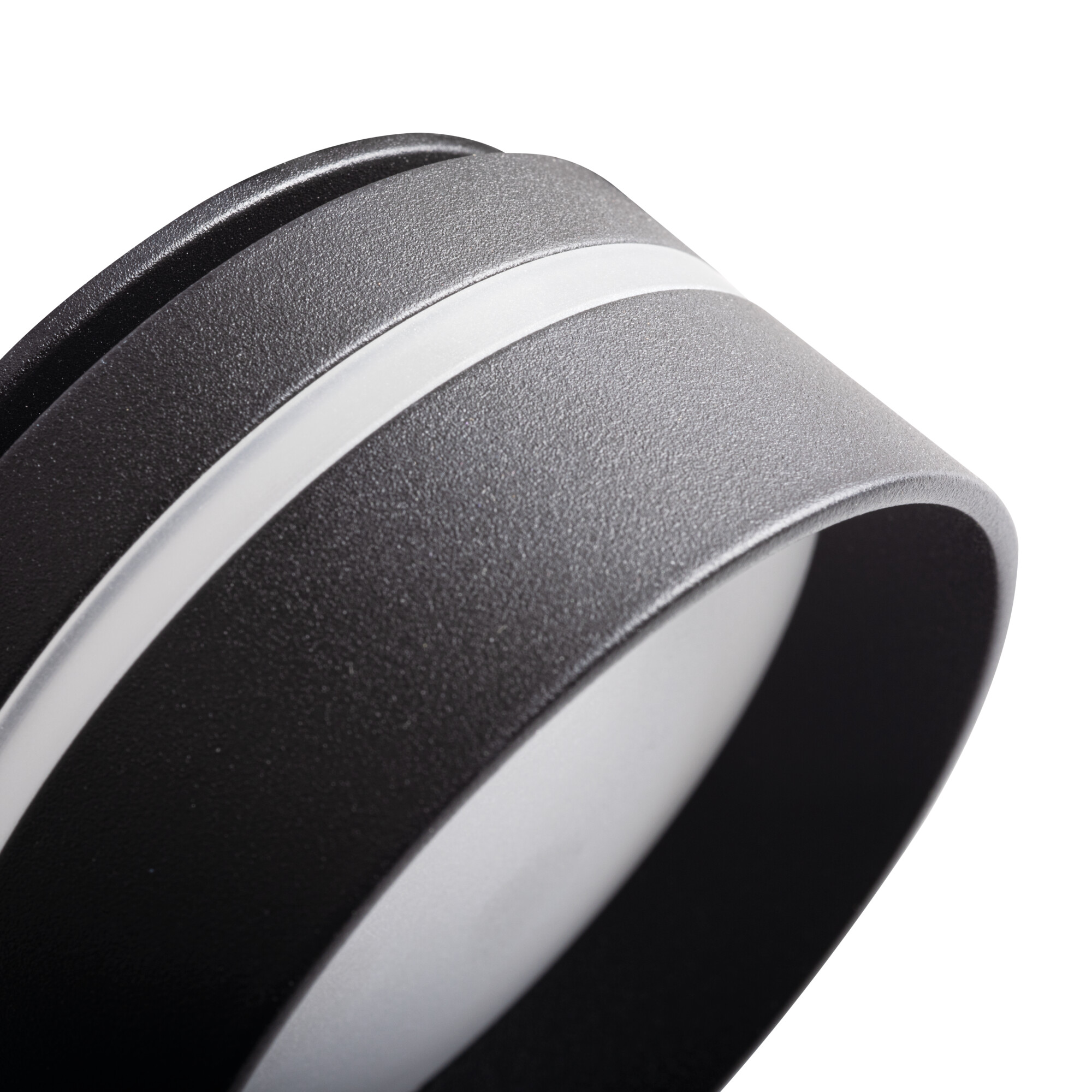

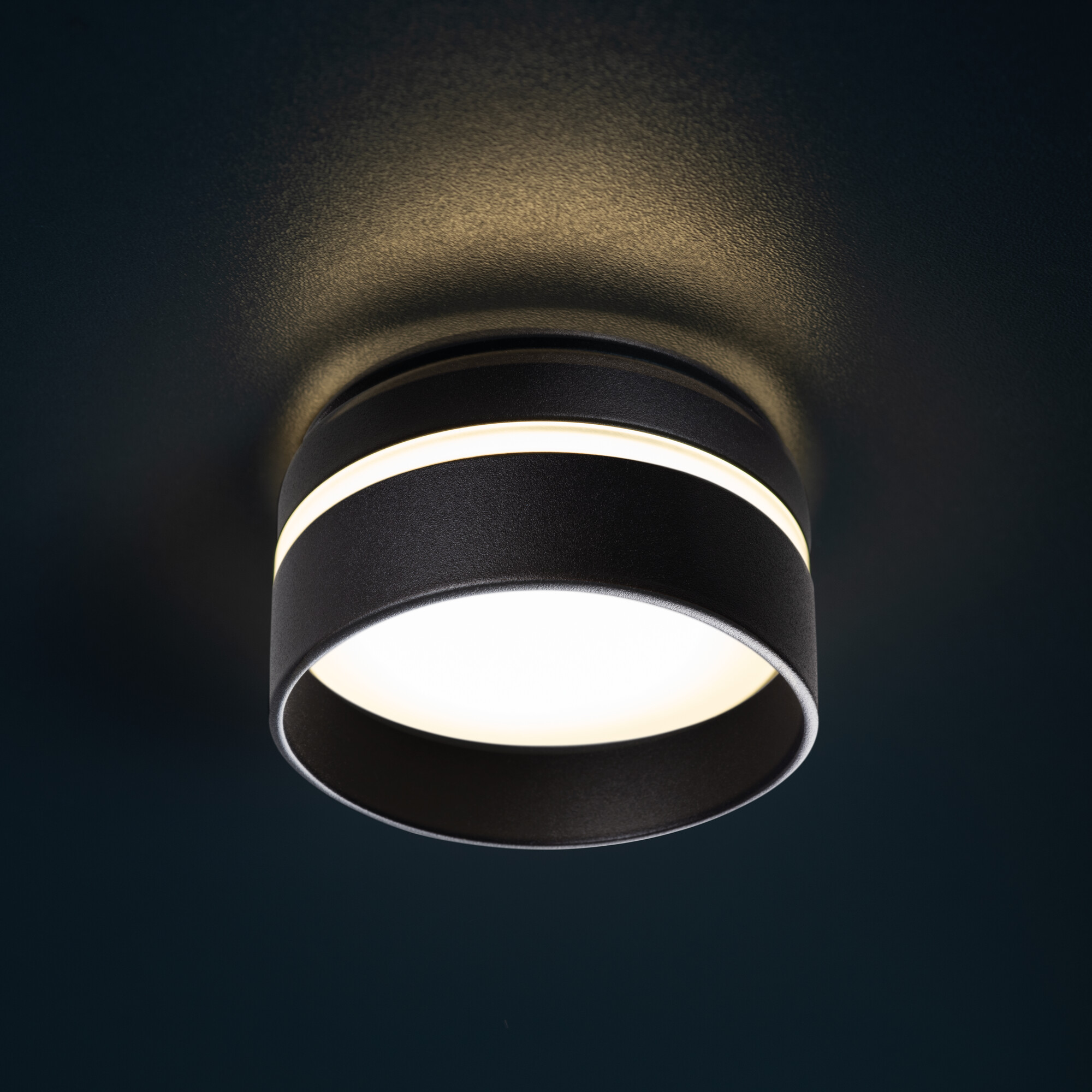

KANLUX GOVIK is a new holder for building in with a unique structure. The mat, acrylic lampshade diffuses light and makes the installed light source be invisible. The holder looks like a miniature integrated surface mounted luminaire.


Maximum power [W] max 10
Rated voltage [V] 12 AC; 12 DC; 220-240 AC
Gx5,3/GU10
Cap Gx5,3/GU10
IP class 20
Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Specification

General description
EAN13 5905339292377
Colour black
Enclosure material aluminum alloy
Place of application Indoors

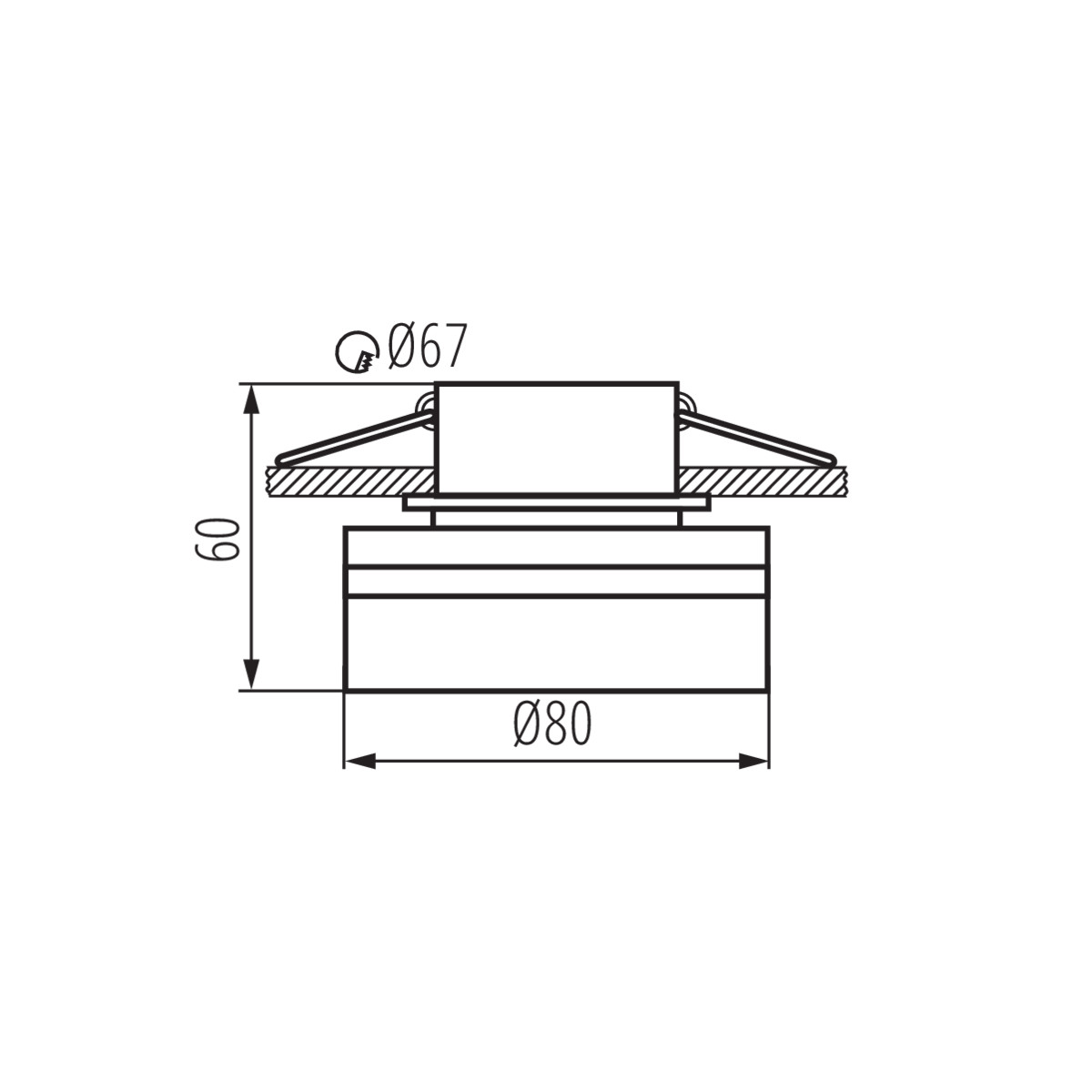

Weight and dimensions
Height [mm] 60
Diameter [mm] 80
Weight 146g
Sales unit piece
Outer box 50
Energy class
The fixture is adapted to the light sources of the following energy classes: A++,A+,A
Additional features
  • Decorative ring without a ceramic frame
Technical data
Rated voltage [V] 12 AC; 12 DC; 220-240 AC
Decorative ring without a ceramic frame
Show more ▾
Colour black
Maximum power [W] max 10
Light source included no
Light source MR16/PAR16
Replaceable light source yes
Cap Gx5,3/GU10
Class of protection against electric shock II/III
Place of assembly Recessed mount in the ceiling
IP class 20
Ambient temperature range to which the product can be exposed 5÷25
Lighting-fixture angle regulation none
Wielkość otworu montażowego [mm] Ø67
The product is not suitable to be covered with a heat-insulating material
The fixture is adapted to the light sources of the following energy classes A++,A+,A
Minimum distance from the illuminated object 0,5m
