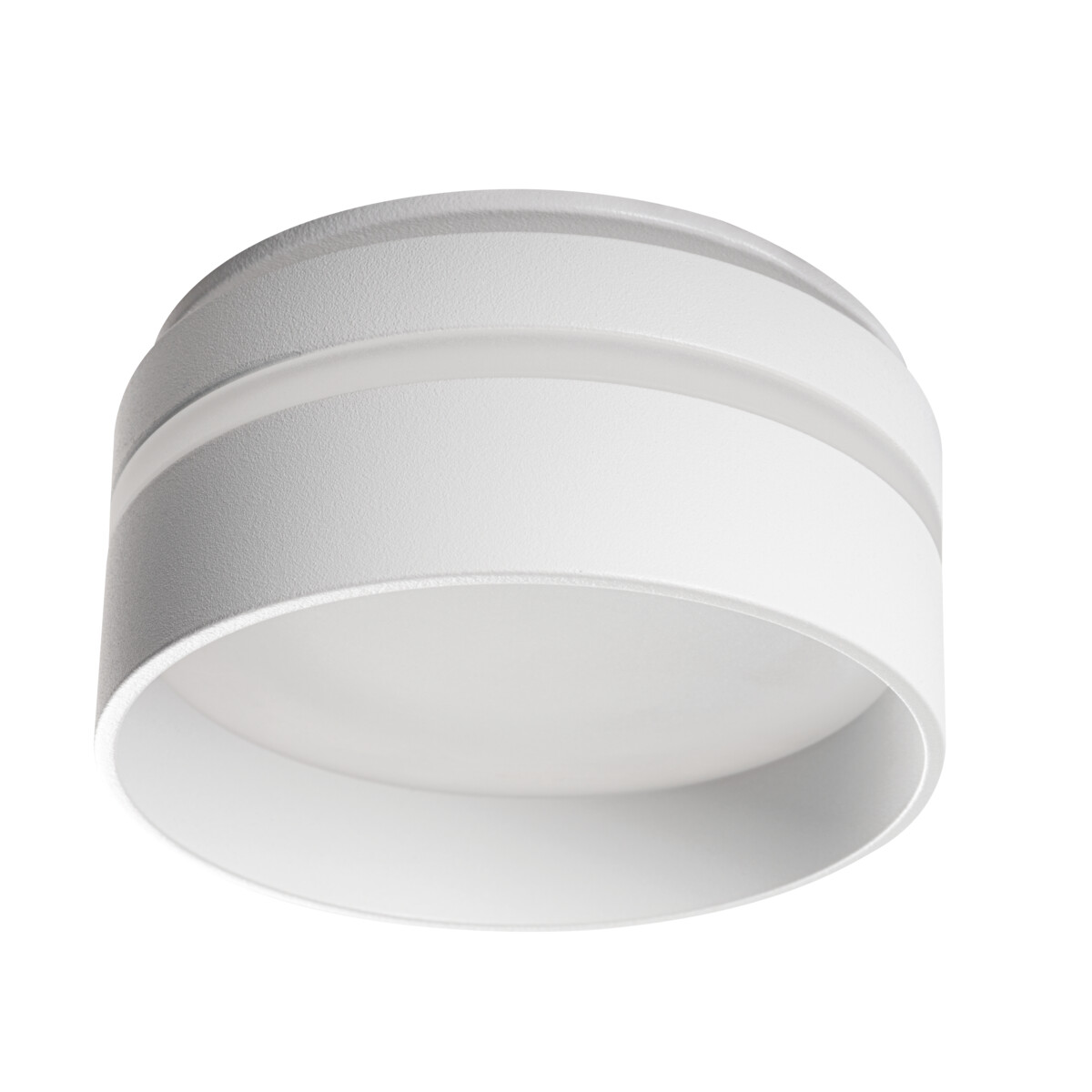

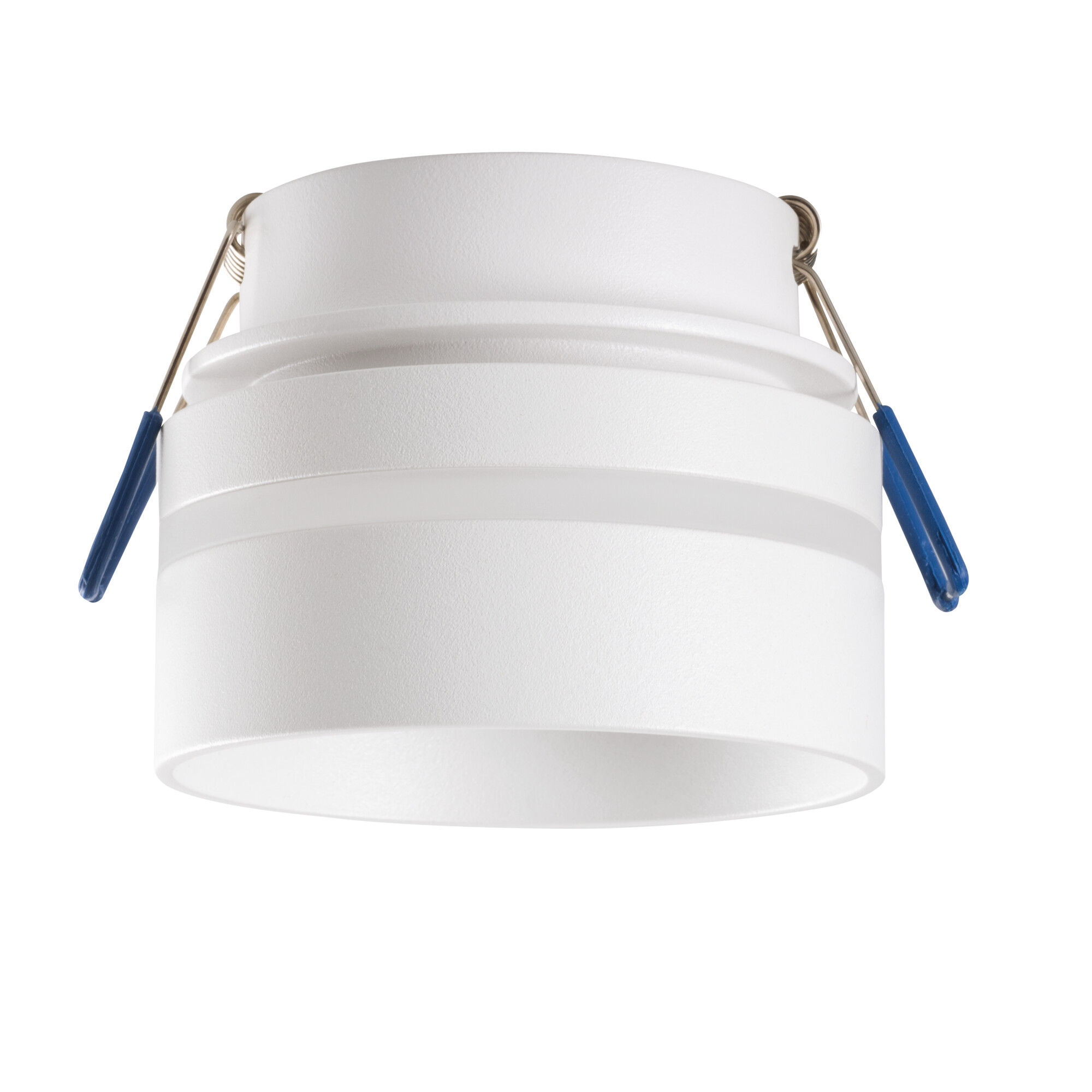

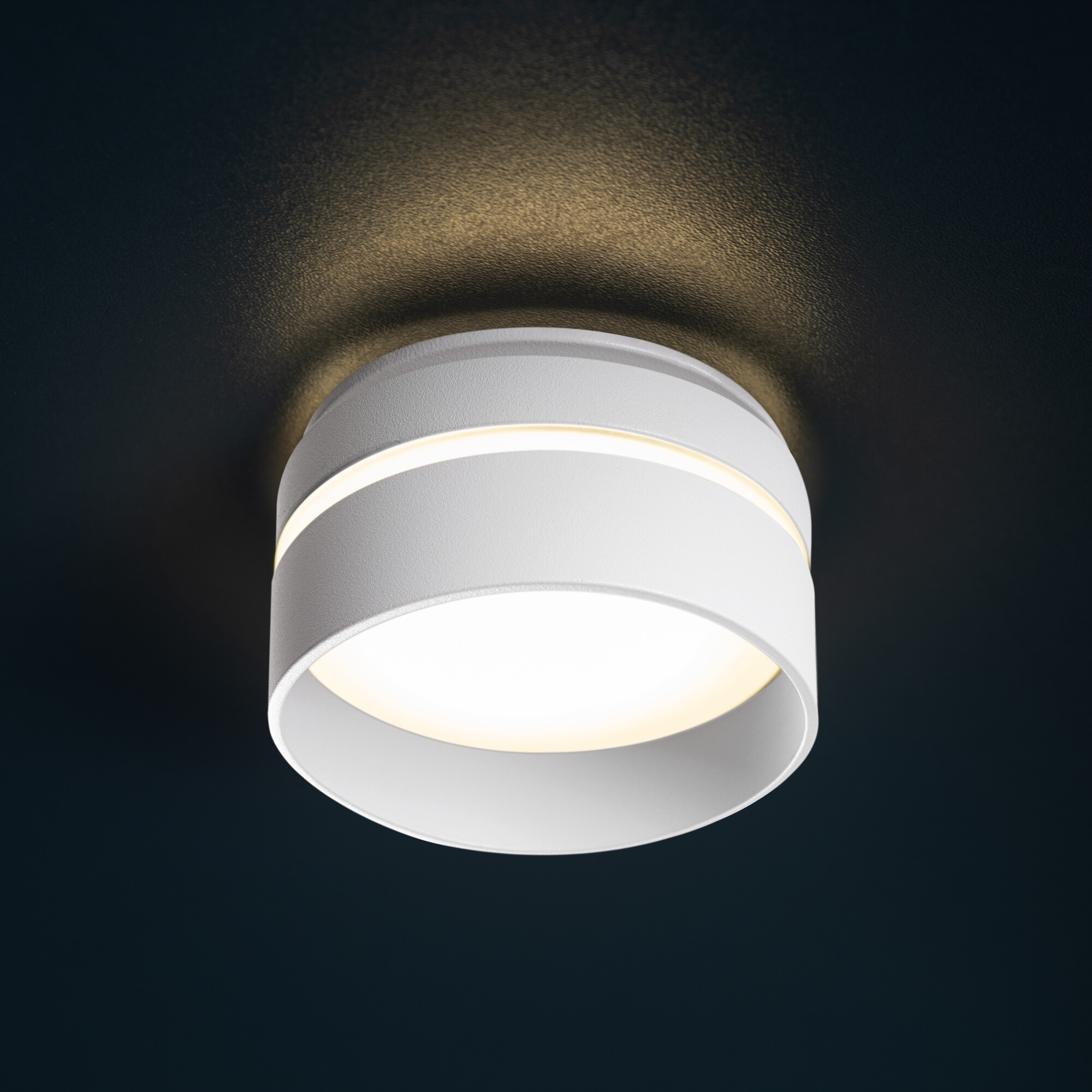

Ceiling-mounted spotlight fitting GOVIK

GOVIK-ST DSO-W

Product code: 29238 logo KANLUX

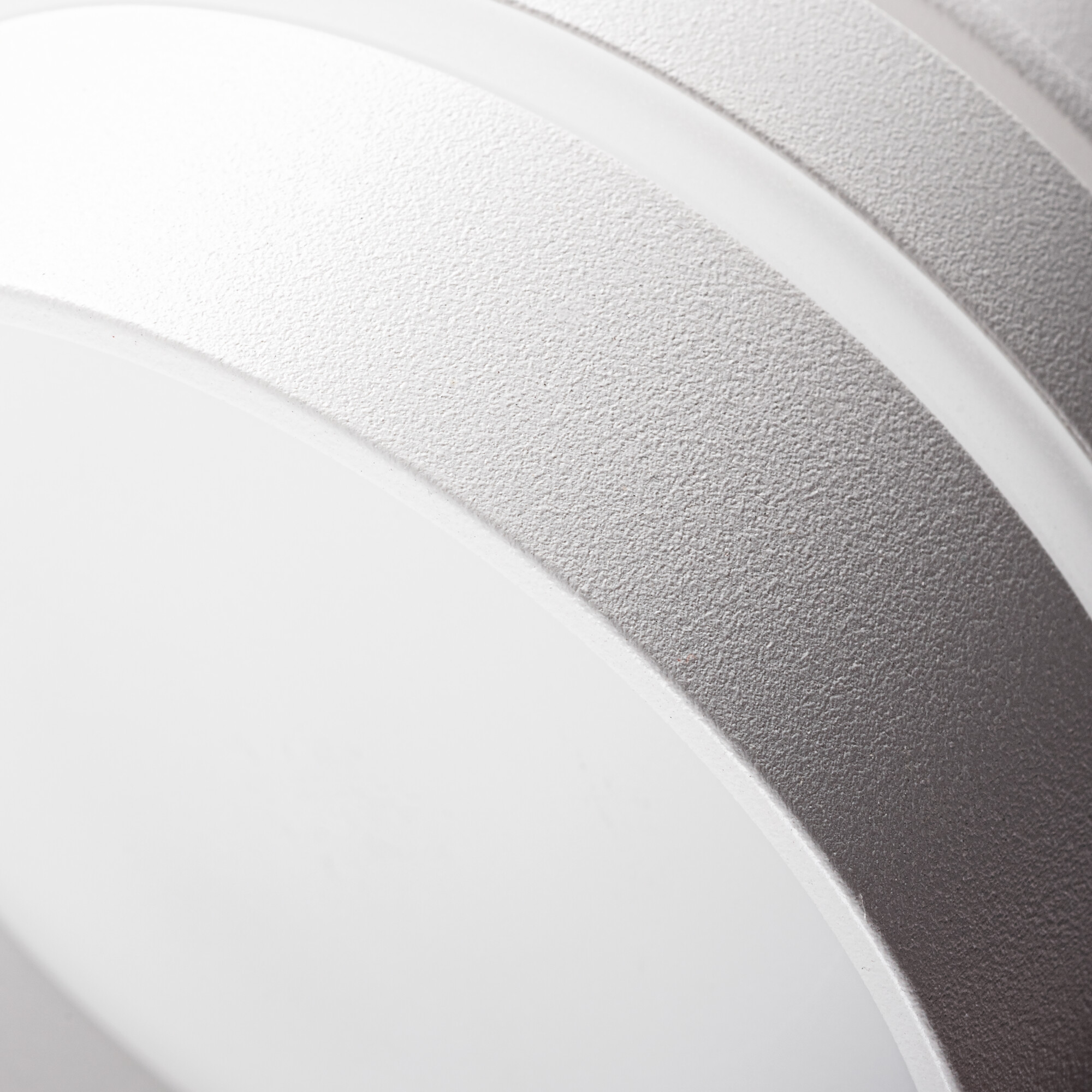

KANLUX GOVIK is a new holder for building in with a unique structure. The mat, acrylic lampshade diffuses light and makes the installed light source be invisible. The holder looks like a miniature integrated surface mounted luminaire.

Product presentation
Rated voltage [V] 12 AC; 12 DC; 220-240 AC
Maximum power [W] max 10
Cap Gx5,3/GU10
IP class 20
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
GOVIK DSO-W/G - KANLUX GOVIK DSO-W/G - KANLUX
Ceiling-mounted spotlight fitting GOVIK GOVIK DSO-W/G Product code: 29231

logo KANLUX
GOVIK DSO-B/G - KANLUX GOVIK DSO-B/G - KANLUX
Ceiling-mounted spotlight fitting GOVIK GOVIK DSO-B/G Product code: 29232

logo KANLUX
GOVIK-ST DSO-W/G - KANLUX GOVIK-ST DSO-W/G - KANLUX
Ceiling-mounted spotlight fitting GOVIK GOVIK-ST DSO-W/G Product code: 29233

logo KANLUX
GOVIK-ST DSO-B/G - KANLUX GOVIK-ST DSO-B/G - KANLUX
Ceiling-mounted spotlight fitting GOVIK GOVIK-ST DSO-B/G Product code: 29234

logo KANLUX
GOVIK DSO-W - KANLUX GOVIK DSO-W - KANLUX
Ceiling-mounted spotlight fitting GOVIK GOVIK DSO-W Product code: 29235

logo KANLUX
GOVIK DSO-B - KANLUX GOVIK DSO-B - KANLUX
Ceiling-mounted spotlight fitting GOVIK GOVIK DSO-B Product code: 29236

logo KANLUX
GOVIK-ST DSO-B - KANLUX GOVIK-ST DSO-B - KANLUX
Ceiling-mounted spotlight fitting GOVIK GOVIK-ST DSO-B Product code: 29237

Together better

Select complementary products
logo KANLUX
TOMI LED7W MR16-CW - KANLUX
Energy class G LED light source TOMI LED TOMI LED7W MR16-CW Product code: 22707

logo KANLUX
Attribute icon high_lumen
TEDI MAXX LED GU10-WW - KANLUX TEDI MAXX LED GU10-WW - KANLUX
Energy class F LED light source TEDI MAXX LED TEDI MAXX LED GU10-WW Product code: 23412

logo KANLUX
Attribute icon high_lumen
TEDI MAXX LED GU10-CW - KANLUX TEDI MAXX LED GU10-CW - KANLUX
Energy class F LED light source TEDI MAXX LED TEDI MAXX LED GU10-CW Product code: 23413

logo KANLUX
Attribute icon high_lumen
TEDI MAXX LED GU10-NW - KANLUX TEDI MAXX LED GU10-NW - KANLUX
Energy class F LED light source TEDI MAXX LED TEDI MAXX LED GU10-NW Product code: 23414

logo KANLUX
POWELED P 12V 60W - KANLUX
CV power supply unit POWELED POWELED P 12V 60W Product code: 26811

logo KANLUX
POWELED P 12V 150W - KANLUX
CV power supply unit POWELED POWELED P 12V 150W Product code: 28963

logo KANLUX
POWELED P 12V 200W - KANLUX
CV power supply unit POWELED POWELED P 12V 200W Product code: 28965

logo KANLUX-SMART
S GU10 4,7W RGBCCT - KANLUX-SMART S GU10 4,7W RGBCCT - KANLUX-SMART
Energy class G LED light source Kanlux SMART S GU10 4,7W RGBCCT Product code: 33643

logo IQ-LED
Attribute icon gwarancja5 Attribute icon extreme_efficacy
IQ-LEDEX GU10 2,5W-NW - IQ-LED
Energy class A LED light source IQ-LED EX GU10 IQ-LEDEX GU10 2,5W-NW Product code: 33769

logo KANLUX
TOMIv2 1,2W GU10-CW - KANLUX
Energy class F LED light source TOMIv2 LED TOMIv2 1,2W GU10-CW Product code: 34960

logo KANLUX
TOMIv2 1,2W GU10-NW - KANLUX
Energy class F LED light source TOMIv2 LED TOMIv2 1,2W GU10-NW Product code: 34961

logo KANLUX
TOMIv2 1,2W GU10-WW - KANLUX
Energy class F LED light source TOMIv2 LED TOMIv2 1,2W GU10-WW Product code: 34962

logo KANLUX
TOMIv2 2,9W GU10-CW - KANLUX
Energy class F LED light source TOMIv2 LED TOMIv2 2,9W GU10-CW Product code: 34963

logo KANLUX
TOMIv2 2,9W GU10-NW - KANLUX
Energy class F LED light source TOMIv2 LED TOMIv2 2,9W GU10-NW Product code: 34964

logo KANLUX
TOMIv2 2,9W GU10-WW - KANLUX
Energy class F LED light source TOMIv2 LED TOMIv2 2,9W GU10-WW Product code: 34965

logo KANLUX
TOMIv2 4,9W GU10-WW - KANLUX
Energy class F LED light source TOMIv2 LED TOMIv2 4,9W GU10-WW Product code: 34968

logo KANLUX
TOMIv2 6,5W GU10-CW - KANLUX
Energy class F LED light source TOMIv2 LED TOMIv2 6,5W GU10-CW Product code: 34969

logo KANLUX
TOMIv2 6,5W GU10-NW - KANLUX
Energy class F LED light source TOMIv2 LED TOMIv2 6,5W GU10-NW Product code: 34970

logo KANLUX
TOMIv2 6,5W GU10-WW - KANLUX
Energy class F LED light source TOMIv2 LED TOMIv2 6,5W GU10-WW Product code: 34971

logo IQ-LED
Attribute icon gwarancja3 Attribute icon Ra_95
IQ-LED GU10 6,5W-NW - IQ-LED
Energy class F LED light source IQ-LED GU10 6,5W IQ-LED GU10 6,5W-NW Product code: 35241

logo IQ-LED
Attribute icon gwarancja3 Attribute icon Ra_95 Attribute icon kat_36
IQ-LED GU10 6,5WS3-WW - IQ-LED
Energy class F LED light source IQ-LED GU10 6,5W IQ-LED GU10 6,5WS3-WW Product code: 35243

logo KANLUX
K LED GU10 6W-CW - KANLUX
Energy class F LED light source K LED GU10 K LED GU10 6W-CW Product code: 36332

logo KANLUX
Attribute icon super_high_lumen
K LED GU10 7W-WW - KANLUX
Energy class D LED light source K LED GU10 K LED GU10 7W-WW Product code: 36334

logo IQ-LED
Attribute icon gwarancja5 Attribute icon extreme_efficacy
IQ-LEDEX GU10 4,7W-WW - IQ-LED
Energy class A LED light source IQ-LED EX GU10 IQ-LEDEX GU10 4,7W-WW Product code: 36601

logo IQ-LED
Attribute icon gwarancja5 Attribute icon extreme_efficacy
IQ-LEDEX GU10 4,7W-NW - IQ-LED
Energy class A LED light source IQ-LED EX GU10 IQ-LEDEX GU10 4,7W-NW Product code: 36602

logo KANLUX
Attribute icon gwarancja3 Attribute icon glass_housing
XLED GU10 4,9W-WW - KANLUX
Energy class E LED light source XLED GU10 XLED GU10 4,9W-WW Product code: 38410

logo KANLUX
Attribute icon gwarancja3 Attribute icon glass_housing
XLED GU10 4,9W-NW - KANLUX
Energy class E LED light source XLED GU10 XLED GU10 4,9W-NW Product code: 38411

logo KANLUX
Attribute icon gwarancja3 Attribute icon glass_housing
XLED GU10 4,9W-CW - KANLUX
Energy class E LED light source XLED GU10 XLED GU10 4,9W-CW Product code: 38412

logo KANLUX
BR-GZ10 - KANLUX
Light source fitting BR-GZ10 BR-GZ10 Product code: 72369

Specification

General description
Warranty [years] 2
EAN13 5905339292384
Colour white
Enclosure material aluminum alloy

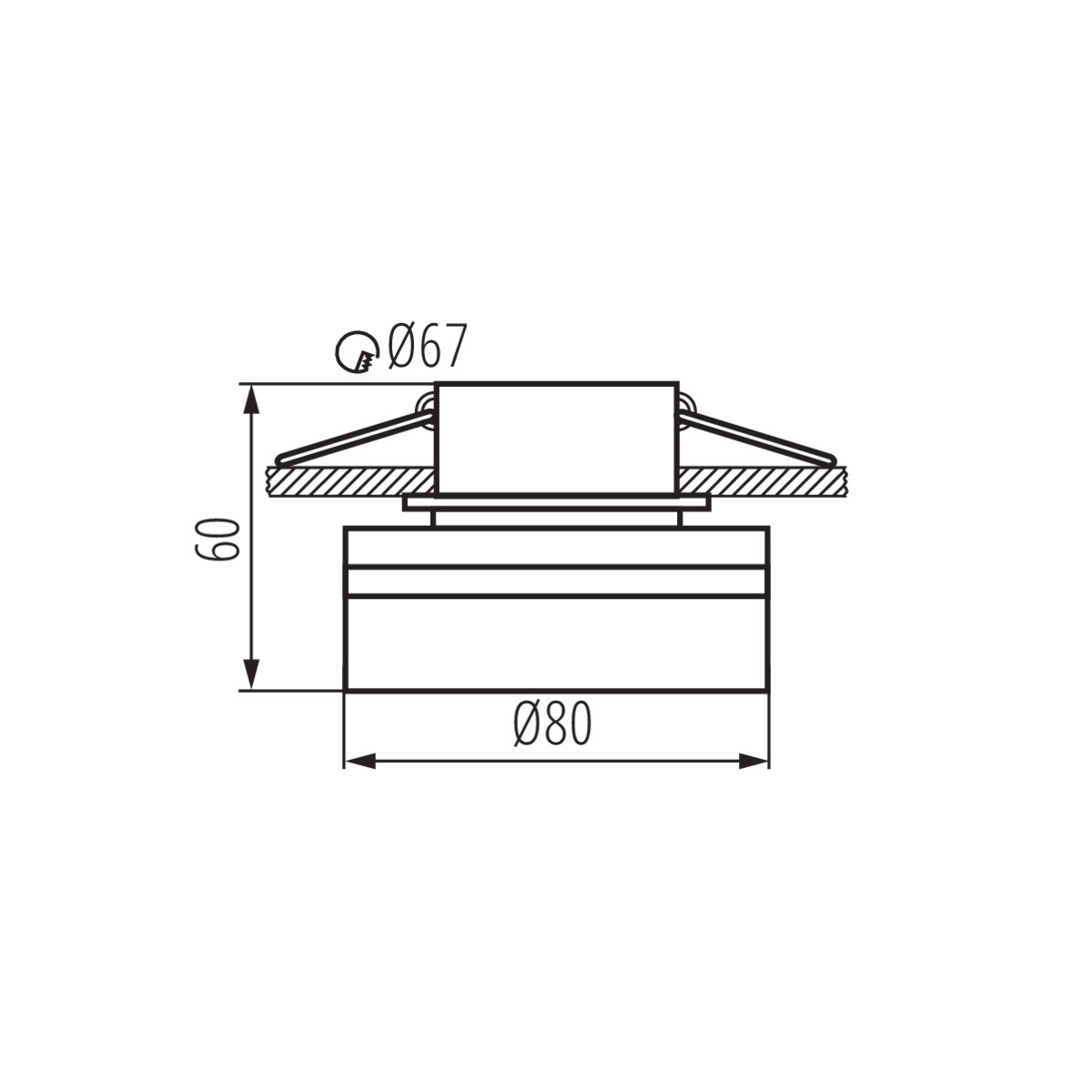

Weight and dimensions
Height [mm] 60
Diameter [mm] 80
Weight 146g
Sales unit piece
Outer box 50
Additional features
  • Decorative ring without a ceramic frame
Technical data
Rated voltage [V] 12 AC; 12 DC; 220-240 AC
Decorative ring without a ceramic frame
Show more ▾
Colour white
Maximum power [W] max 10
Replaceable light source yes
Cap Gx5,3/GU10
Class of protection against electric shock II/III
Place of assembly Recessed mount in the ceiling
IP class 20
Ambient temperature range to which the product can be exposed 5÷25
Lighting-fixture angle regulation none
Wielkość otworu montażowego [mm] Ø67
The product is not suitable to be covered with a heat-insulating material
Minimum distance from the illuminated object 0,5m
Light source included no
Light source MR16/PAR16
Shape round
Producent
Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification
Family card PDF, Size: 431.95 KB
Technical card PDF, Size: 882.43 KB
Support material PDF, Size: 6.76 MB
Drawings and 3D models
3ds MAX 3DS, Size:113.27 KB
Autocad 3D DWG, Size:220.16 KB
Material library MTL, Size:422 B
Object 3D OBJ, Size:322.84 KB
Filmbox FBX, Size:122.28 KB
Photometric data
File ldt - GOVIK ST DSO-W - IQ-LED ... 7W LDT, Size: 2.95 KB
File ldt - GOVIK ST DSO-W - IQ-LED ... 7W S3 LDT, Size: 2.96 KB
File ies - GOVIK ST DSO-W - IQ-LED GU10 7W-WW IES, Size: 2.48 KB
File ies - GOVIK ST DSO-W - IQ-LED GU10 7W-NW IES, Size: 2.48 KB
File ies - GOVIK ST DSO-W - IQ-LED GU10 7W-CW IES, Size: 2.47 KB
File ies - GOVIK ST DSO-W - IQ-LED GU10 7W S3-WW IES, Size: 2.48 KB
File ies - GOVIK ST DSO-W - IQ-LED GU10 7W S3-NW IES, Size: 2.48 KB
File ies - GOVIK ST DSO-W - IQ-LED GU10 7W S3-CW IES, Size: 2.48 KB
Handling and installation
User manual PDF, Size: 1.35 MB
Approvals and certificates
Declaration of Conformity PDF, Size: 734.42 KB
Films
Kanlux GOVIK On Youtube

Before downloading the materials made available through this website in order to use them for further marketing or commercial purposes, please contact the Kanlux SA headquarters by sending an inquiry to kanlux@kanlux.pl concerning the conditions under which you will be able to use the Kanlux SA trademark or Kanlux SA materials protected by copyright. The use of materials downloaded from this website without our consent is illegal and violates our rights.

PIERŚCIEŃ-KOMP. GOVIK-ST DSO-W

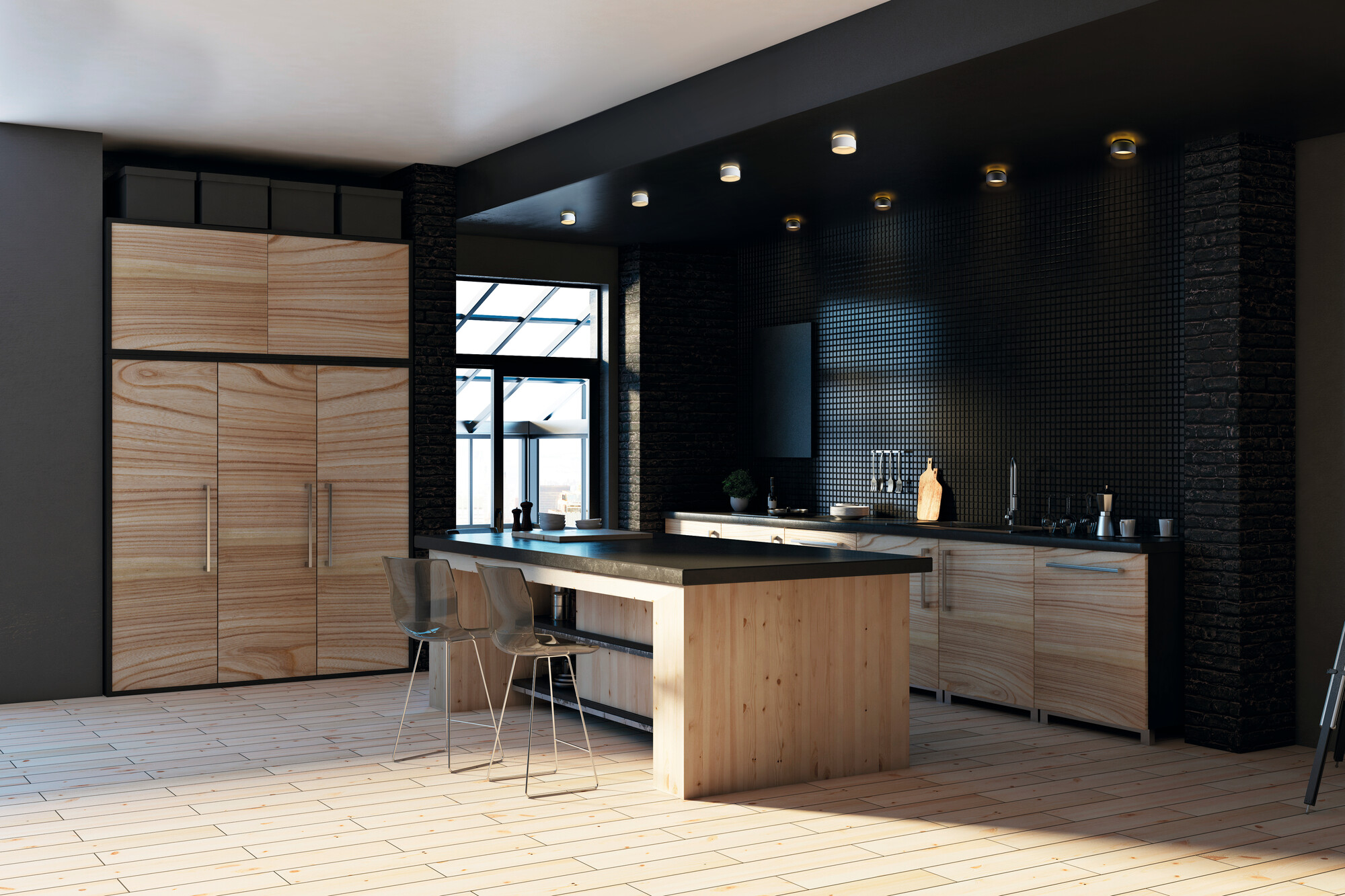

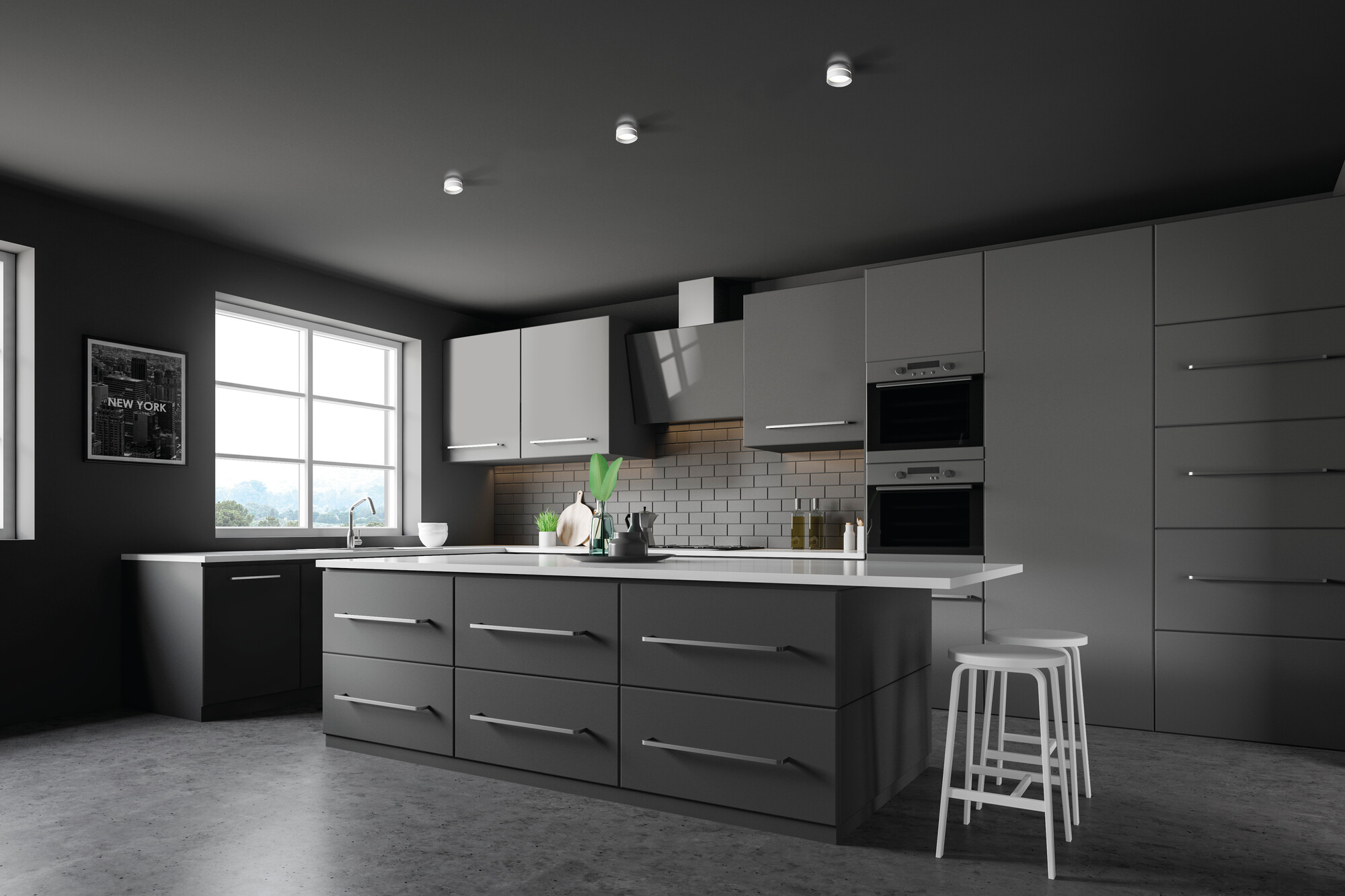

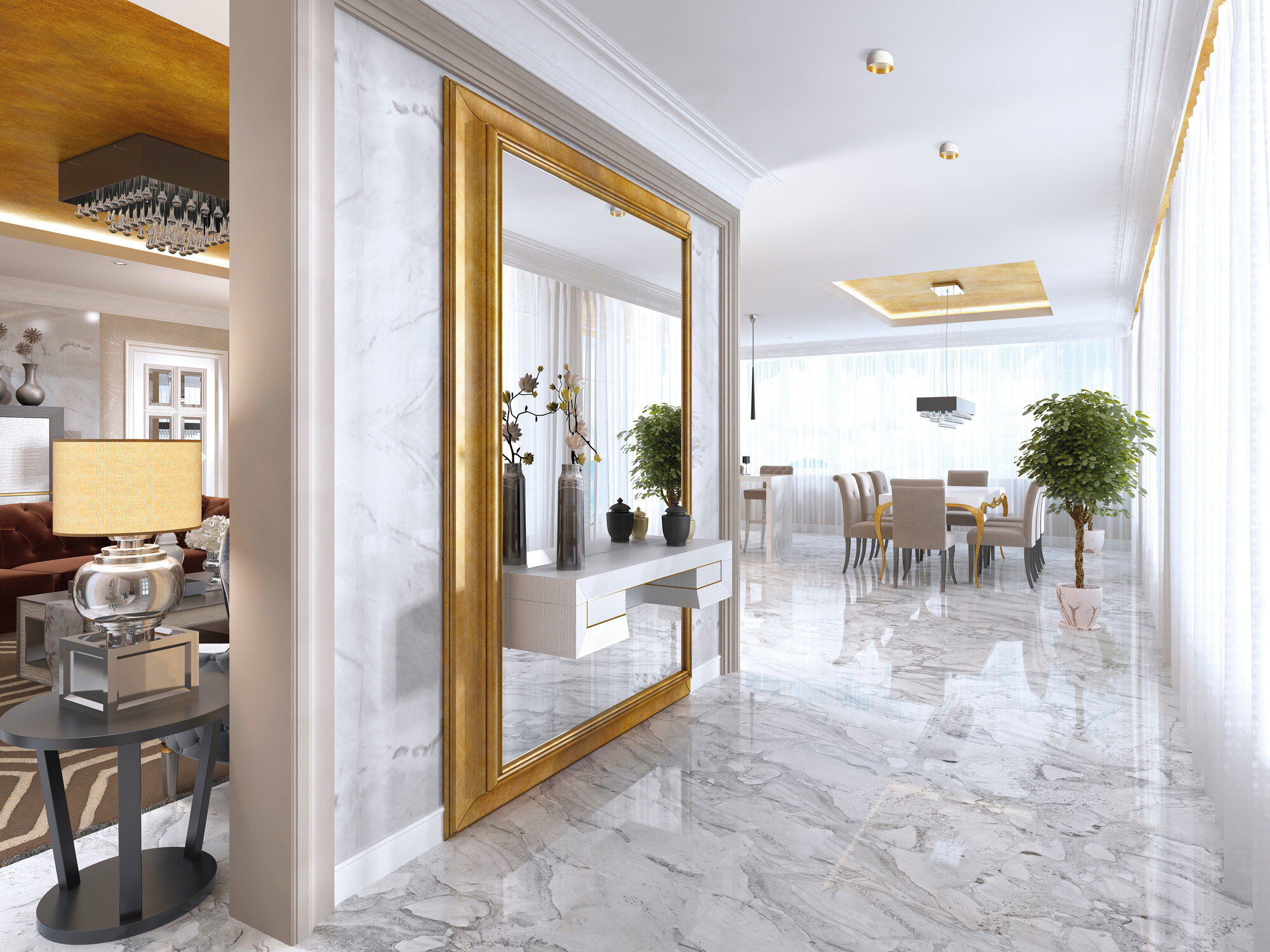

GOVIK-ST DSO-W - KANLUX GOVIK-ST DSO-W - KANLUX GOVIK-ST DSO-W - KANLUX GOVIK-ST DSO-W - KANLUX Aranżacja GOVIK-ST DSO-W Aranżacja GOVIK-ST DSO-W Aranżacja GOVIK-ST DSO-W Aranżacja GOVIK-ST DSO-W Aranżacja GOVIK-ST DSO-W Aranżacja GOVIK-ST DSO-W Aranżacja GOVIK-ST DSO-W
