Kanlux Oświetlenie

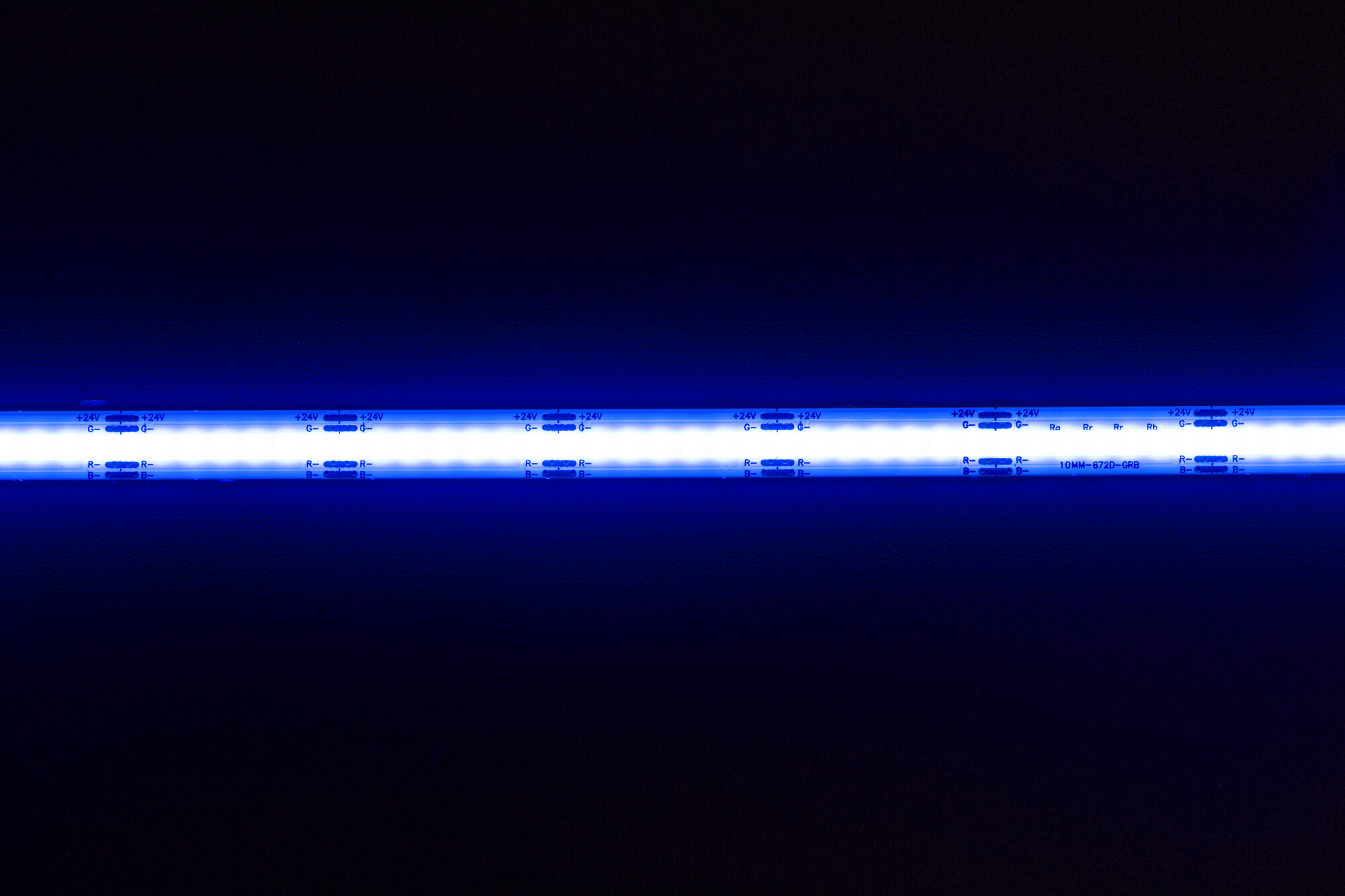

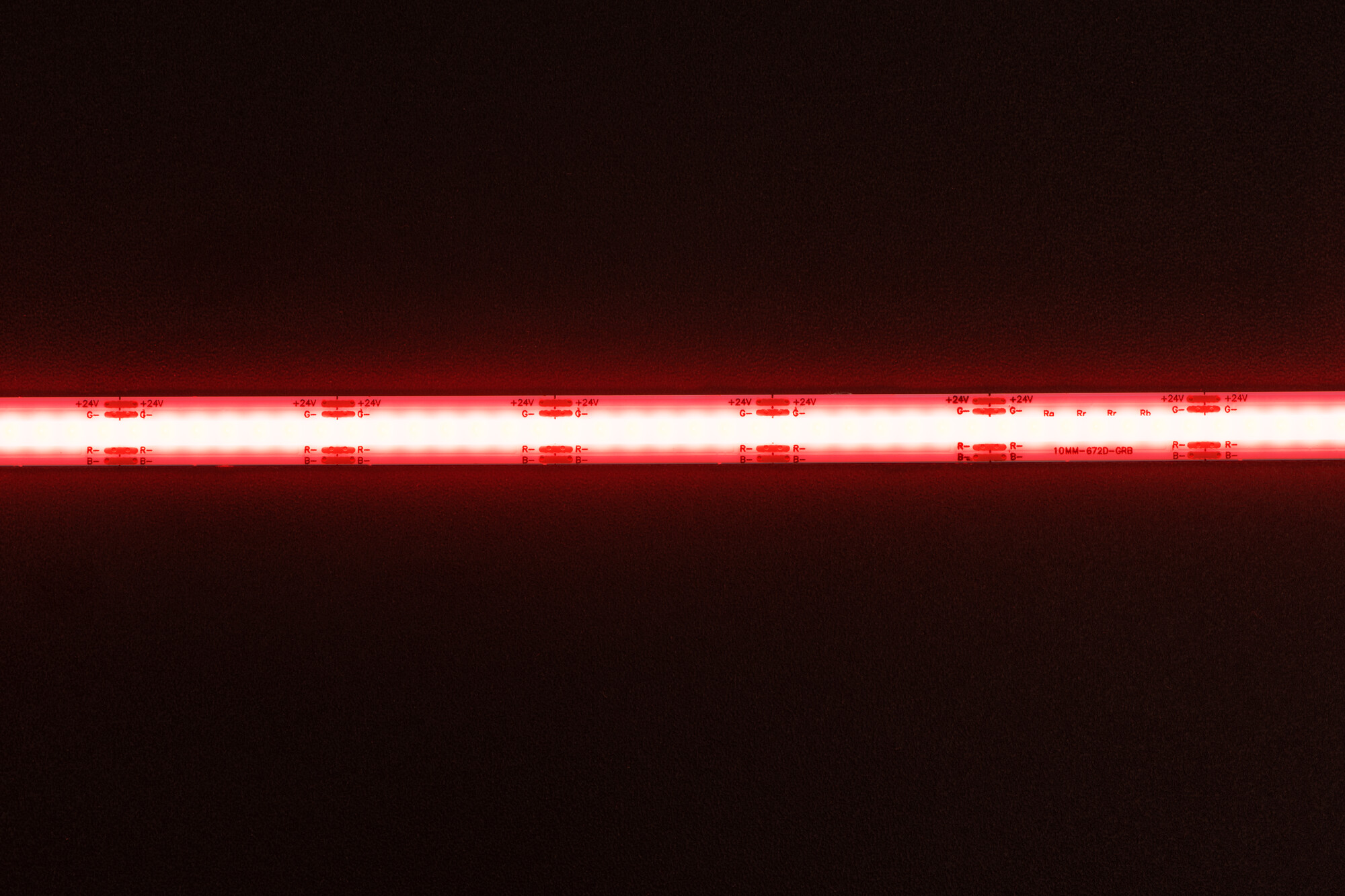

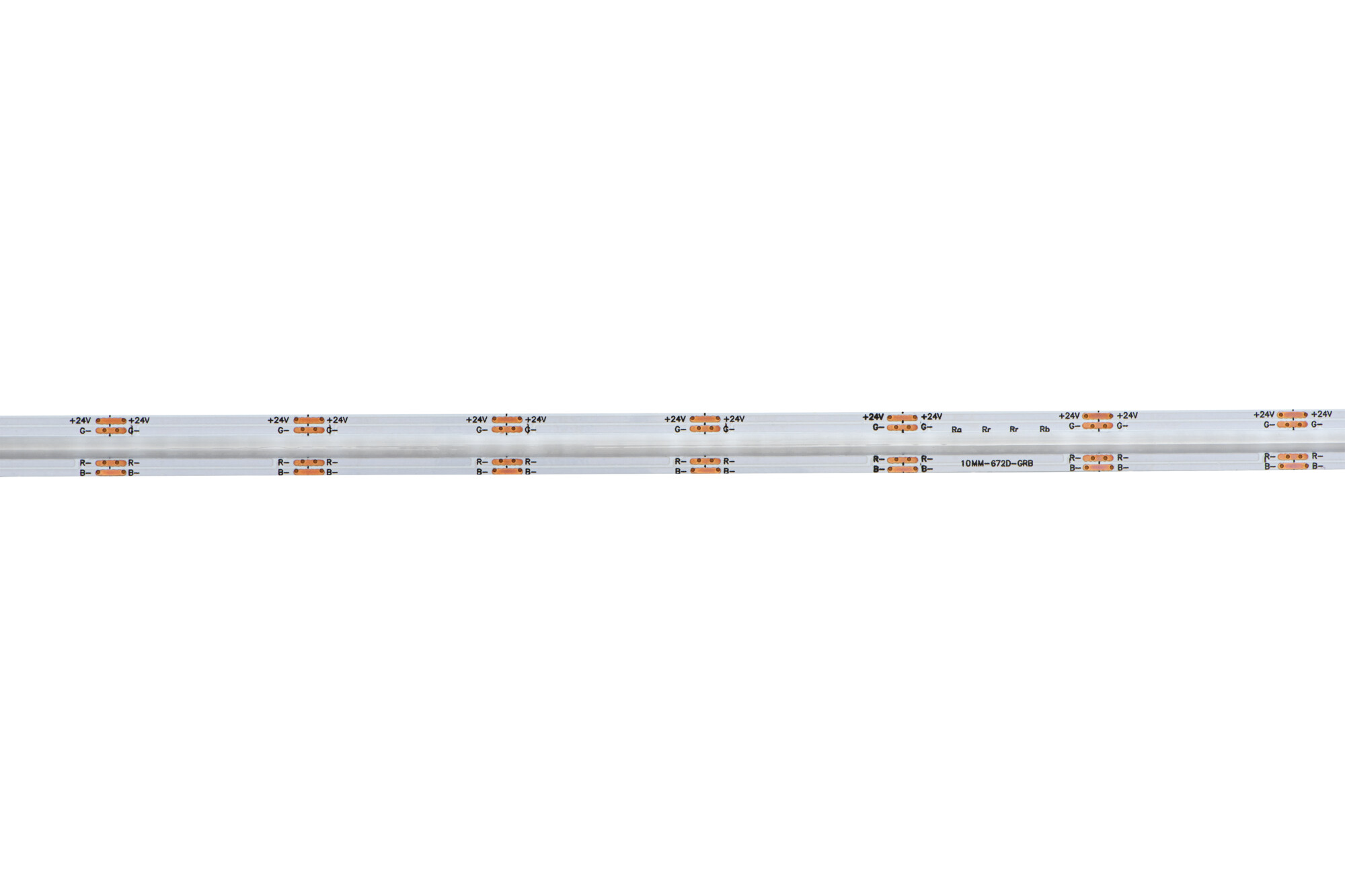

LED light source LCOB 15W/M RGB

LCOB 15W/M 24 IP00RGB

Product code: 38430 logo KANLUX


Rated voltage [V] 24 DC
On-mode power Pon [W] 0,5m = max 7,5
Useful luminous flux of the light source Φuse [lm] 0,5m = max 235
Colour temperature [K] RGB
Rated lamp-service life [h] 30000
Length [mm] 5000
Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Specification

General description
EAN13 5905339384300
Weight and dimensions
Height [mm] 5000
Width [mm] 10
Length [mm] 5000
Weight 121g
Sales unit piece
Outer box 25
Additional features
  • 3 years Warranty under the terms of the warranty statement, available on our website
Technical data
Rated voltage [V] 24 DC
Rated power [W] 1m = max 15 (RGB)
Show more ▾
Class of protection against electric shock III
IP class 00
Luminous flux of the light fitting [lm] 1m = max 470
Colour temperature [K] RGB
Colour uniformity [SDCM] 6
Number of on/off cycles ≥30000
Diode type LED SMD
Rated lamp-service life [h] 30000
Colour temperature RGB
Connection type Free cable ends
Ambient temperature range to which the product can be exposed 5÷25
Possibility of cutting LED strips into segments [cm] 31
Useful luminous flux of the light source Φuse [lm] 0,5m = max 235
Useful luminous flux of the light source Φuse [lm] in sphere (360°)

Materials

Handling and installation
