STRETON LED 200W NW

130

Parking lighting LED STRETON LED

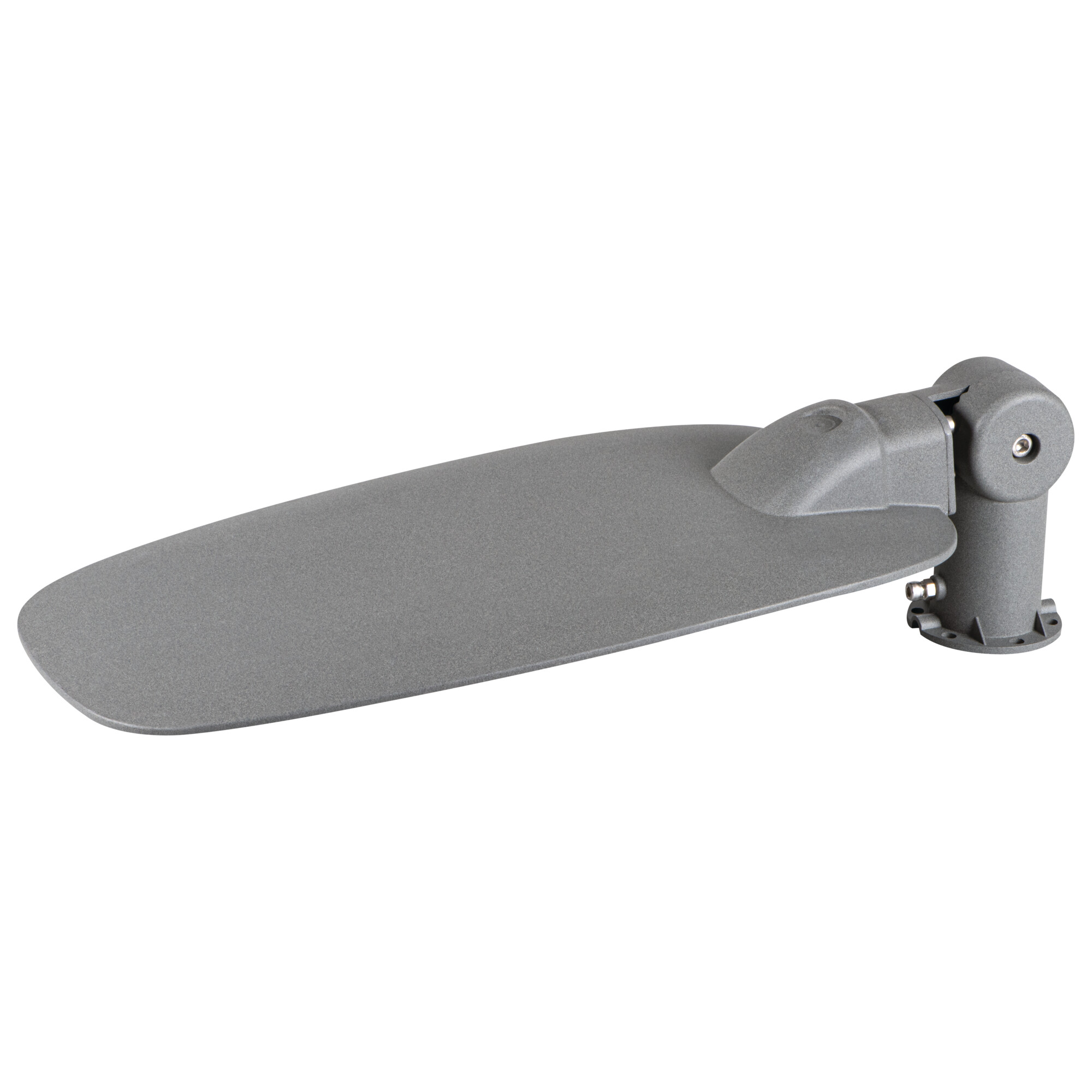

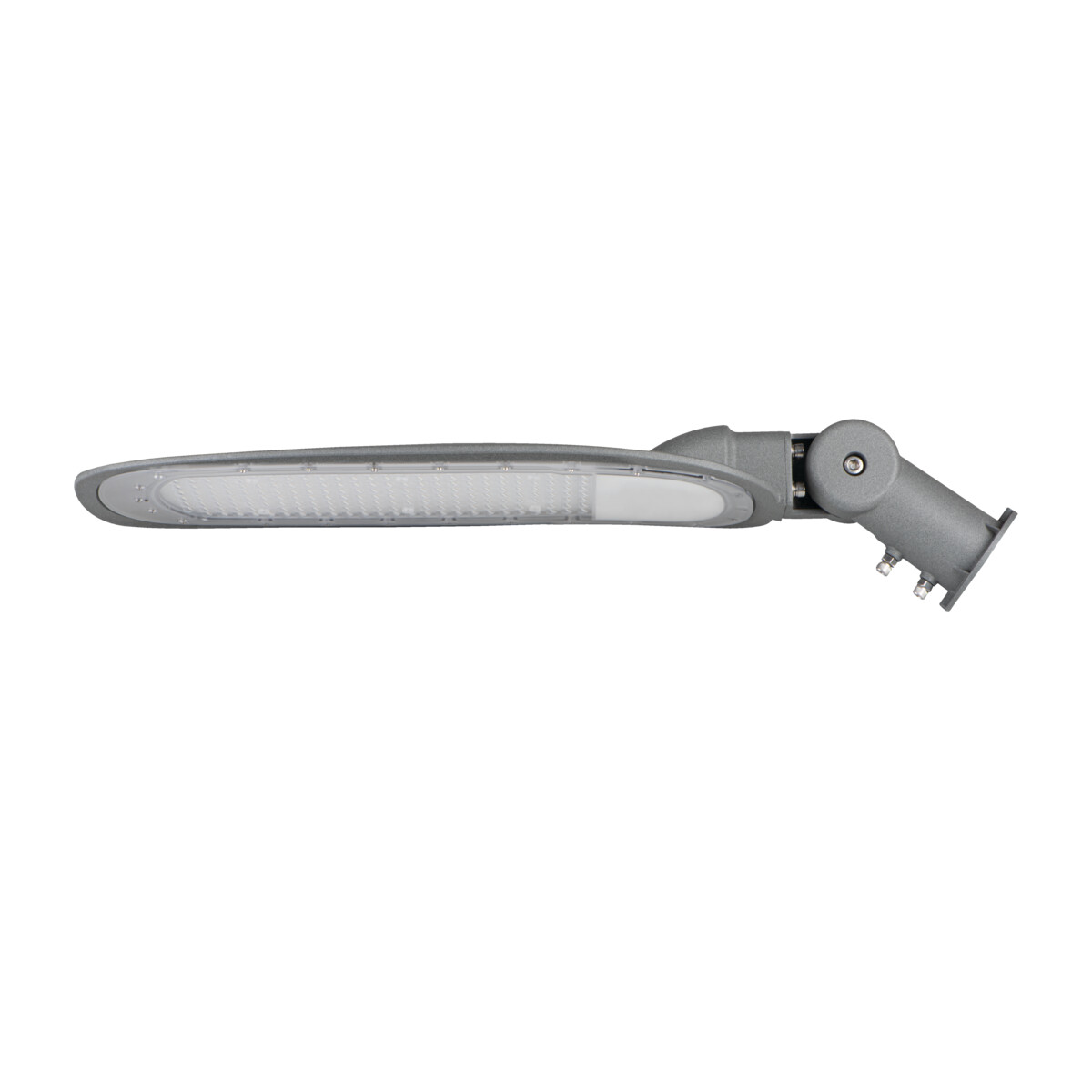

STRETON LED 200W NW

Product code: 36233 logo KANLUX

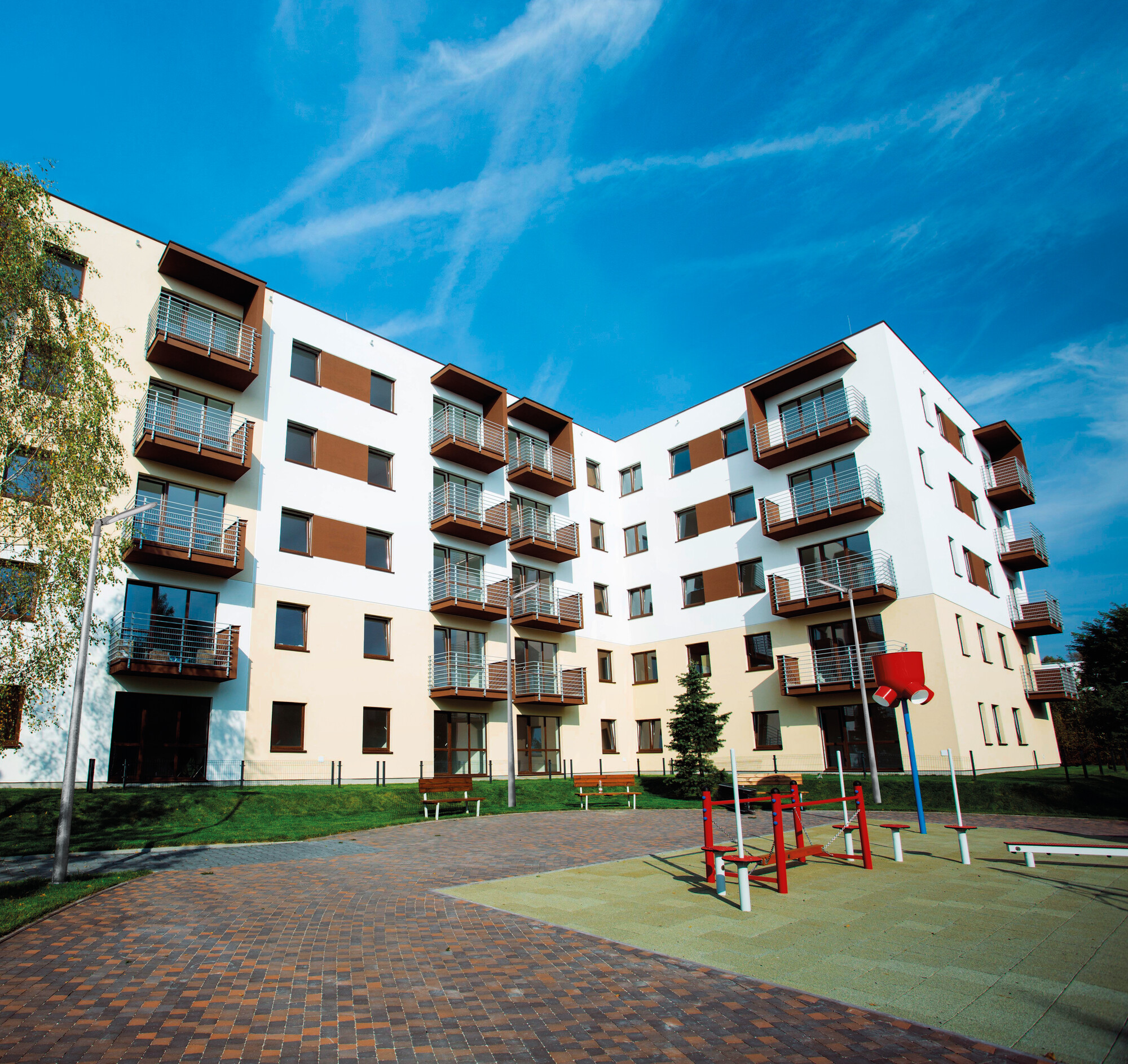

Kanlux STRETON LED are outdoor luminaires designed to illuminate parking lots or larger areas that must be well lit also after dark. Their durability (50,000 hours), tightness (IP66) and high power (up to 200W) make Kanlux STRETON LED a perfect complement to an investment in urban space, in parking lots, in sports facilities or squares.

Product presentation

Rated voltage [V] 220-240 AC

Maximum power [W] 200

Luminous flux of the light fitting [lm] 26000

Colour temperature [K] 4000

Service life [h] 50000

IP class 66

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

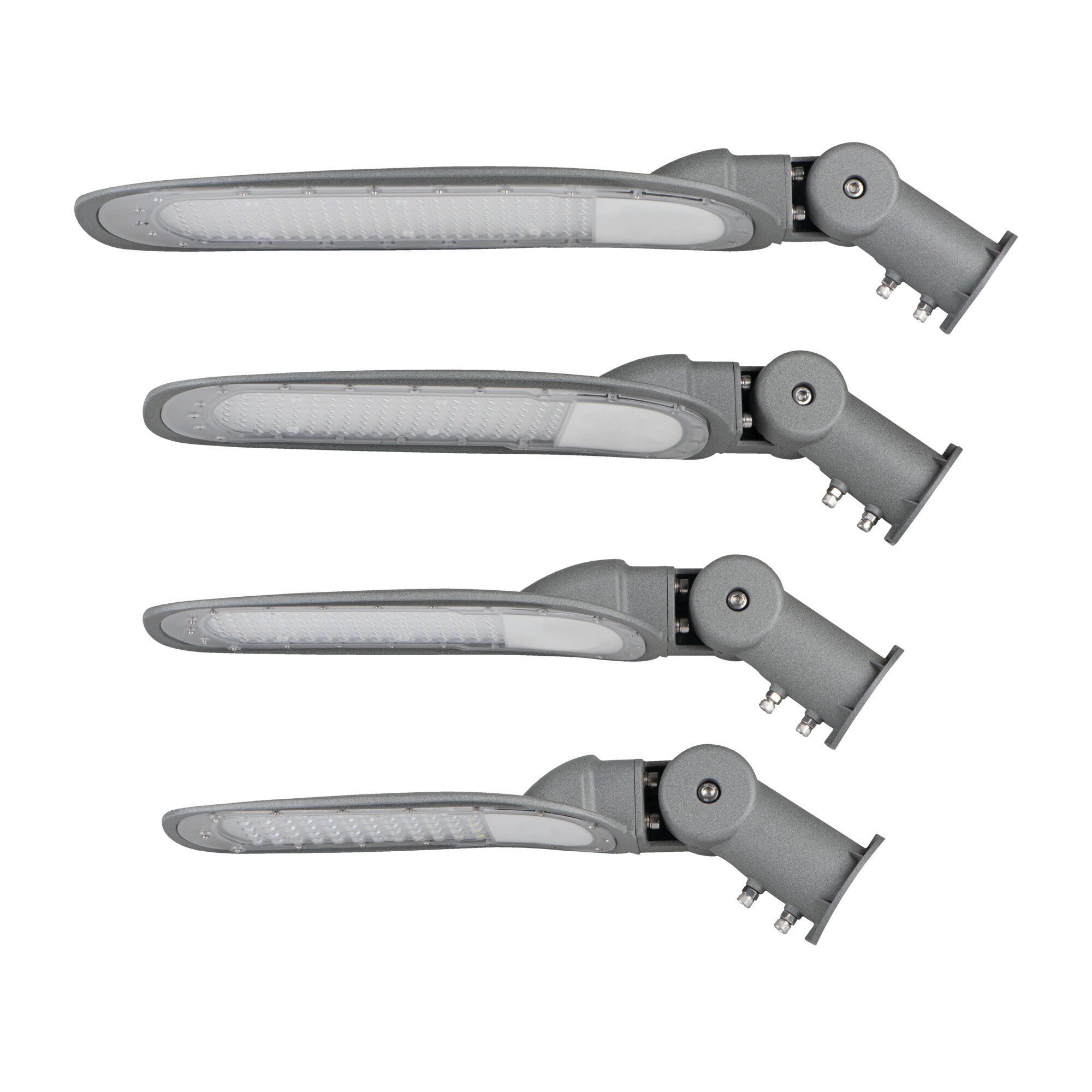

See products from the same series

140

Parking lighting LED STRETON LED STRETON LED 20W NW Product code: 36228

Compare

140

Parking lighting LED STRETON LED STRETON LED 40W NW Product code: 36229

Compare

140

Parking lighting LED STRETON LED STRETON LED 60W NW Product code: 36230

Compare

140

Parking lighting LED STRETON LED STRETON LED 100W NW Product code: 36231

Compare

130

Parking lighting LED STRETON LED STRETON LED 150W NW Product code: 36232

Compare

Parking lighting LED STRETON LED STRETON LED 40W WW Product code: 36236

Compare

Parking lighting LED STRETON LED STRETON LED 60W WW Product code: 36237

Compare

Parking lighting LED STRETON LED STRETON LED 100W WW Product code: 36238

Compare

Specification

General description

Warranty [years] 5

EAN13 5905339362339

Colour grey

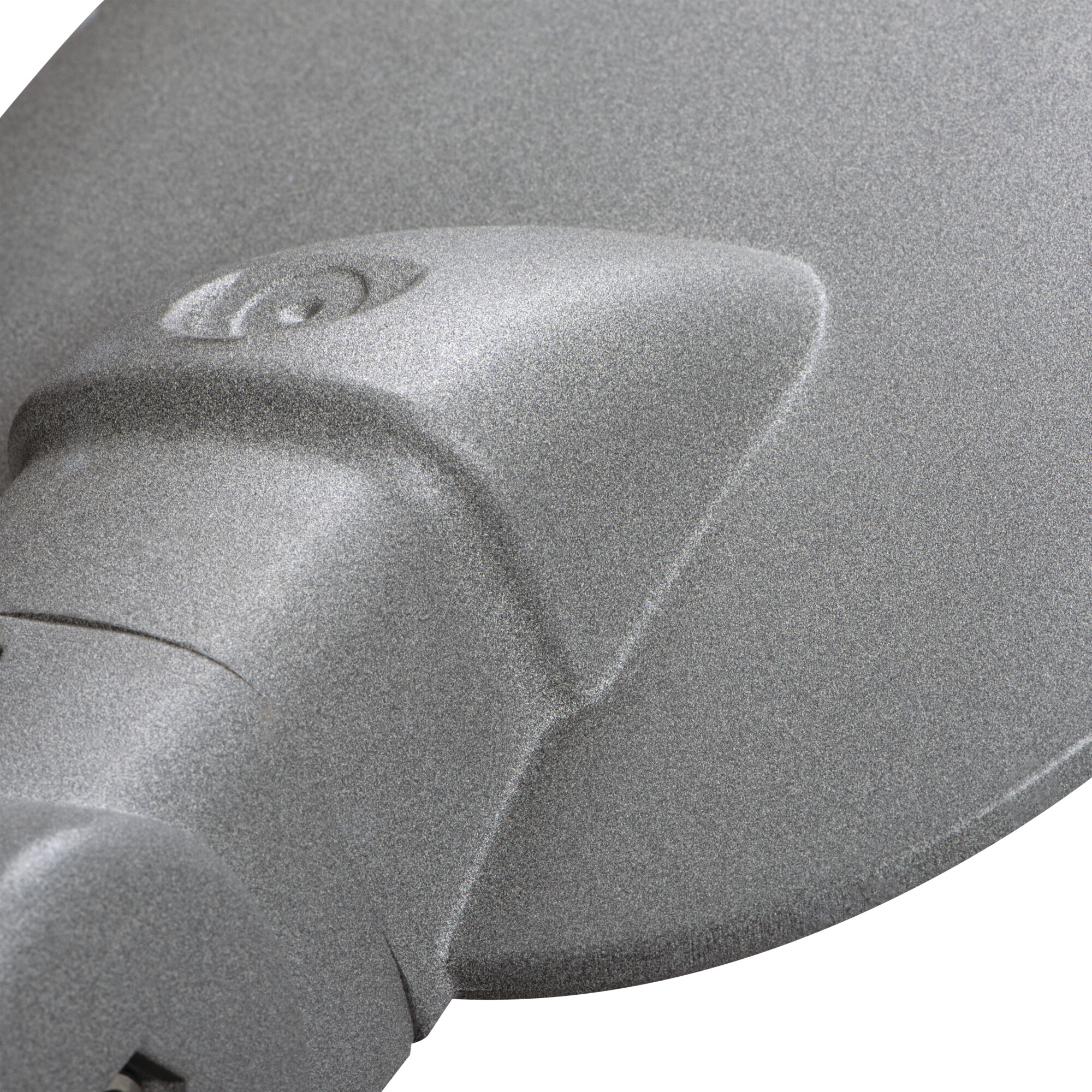

Enclosure material aluminum alloy

Protective glass material PC

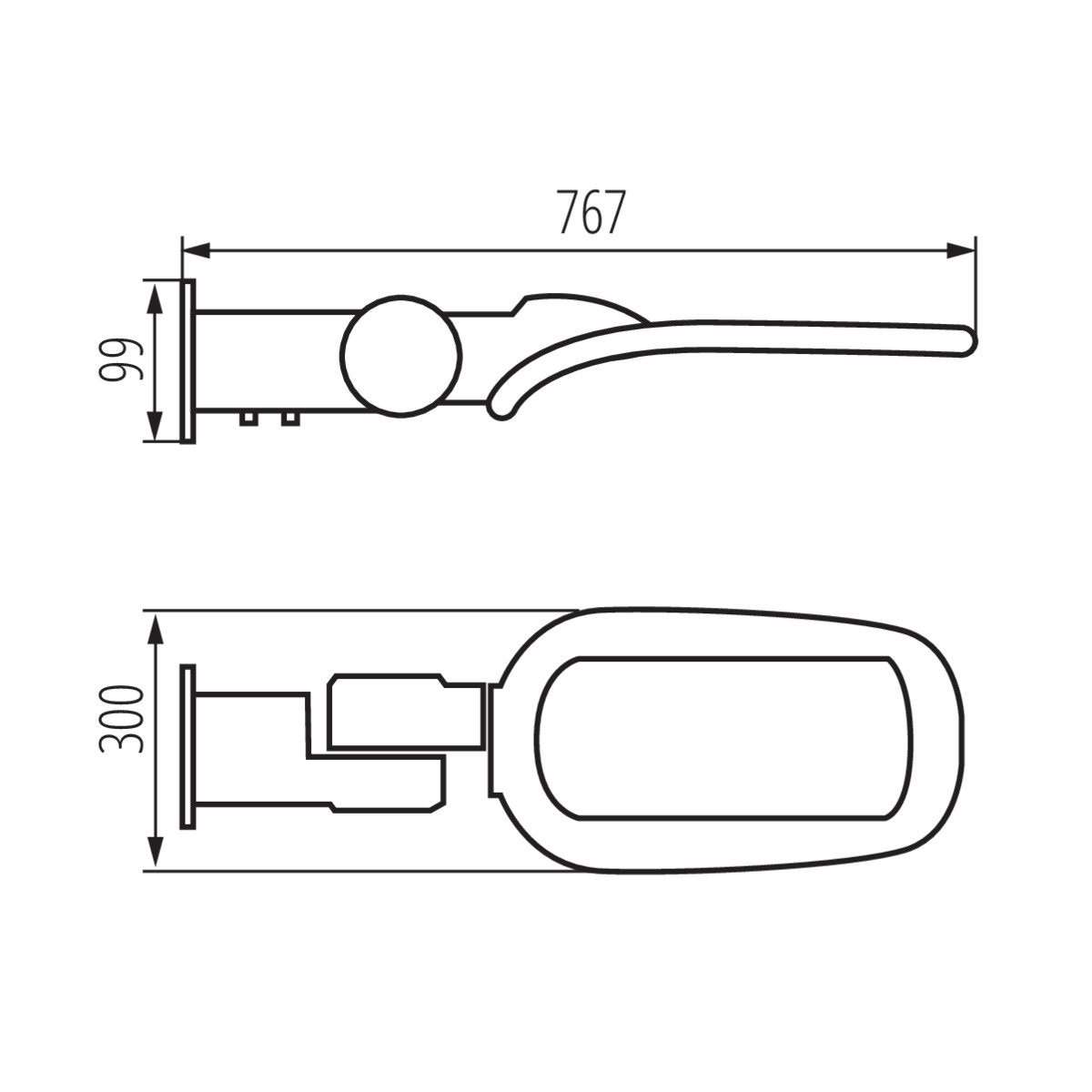

Weight and dimensions

Height [mm] 767

Width [mm] 99

Depth [mm] 300

Weight 3830g

Sales unit piece

Outer box 4

Energy class

Additional features

5 years Warranty under the terms of the warranty statement, available on our website

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour grey

Maximum power [W] 200

Luminous flux of the light fitting [lm] 26000

Useful luminous flux of the light source Φuse [lm] 26000

Useful luminous flux of the light source Φuse [lm] in sphere (360°)

Lighting angle [°] X140/Y90

Number of on/off cycles ≥20000

Service life [h] 50000

Colour temperature [K] 4000

Colour uniformity [SDCM] ≤6

Colour-rendering index Ra 70

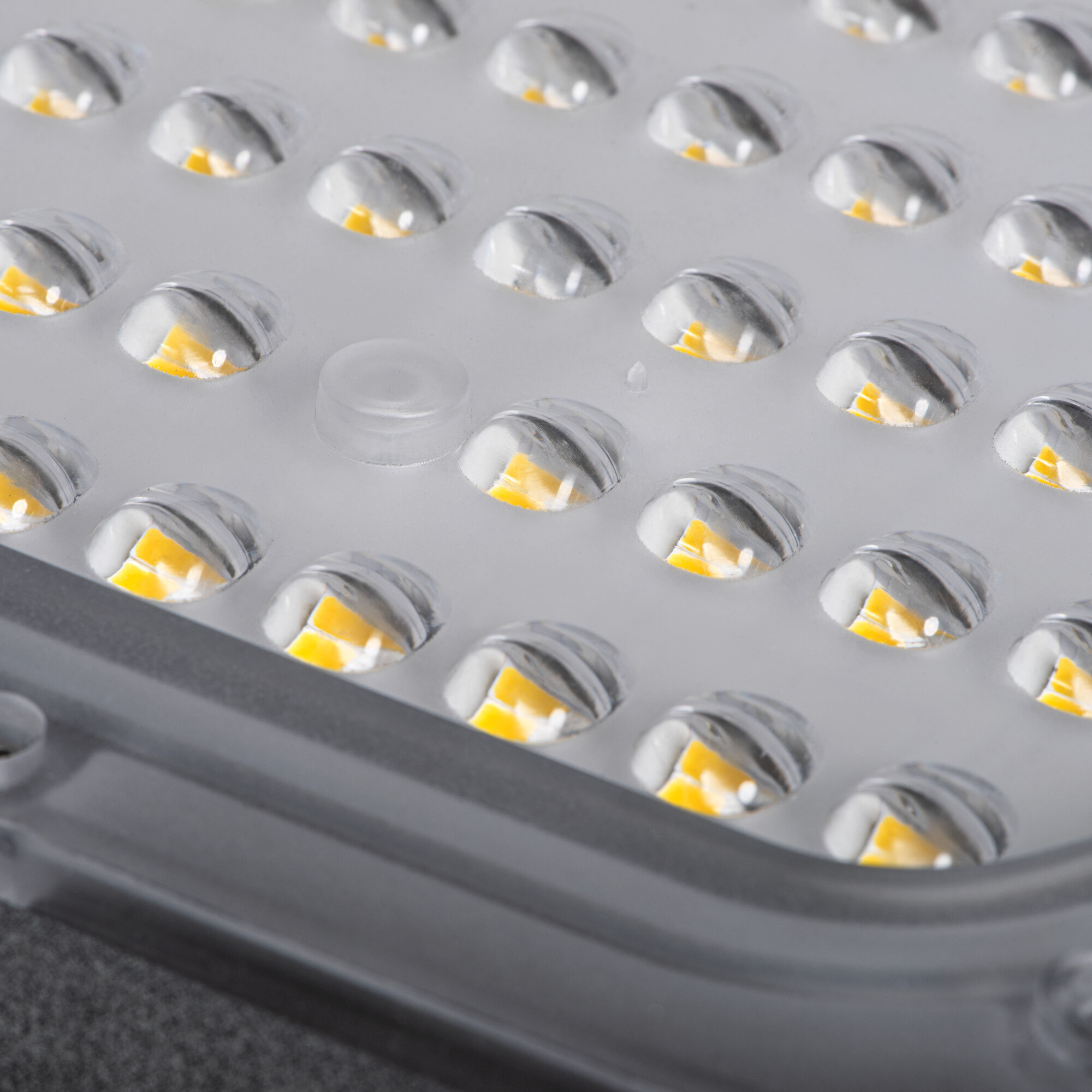

Diode type LED SMD

Compatible with a dimmer no

Colour temperature white

Class of protection against electric shock I

IP class 66

Ambient temperature range to which the product can be exposed -20÷45

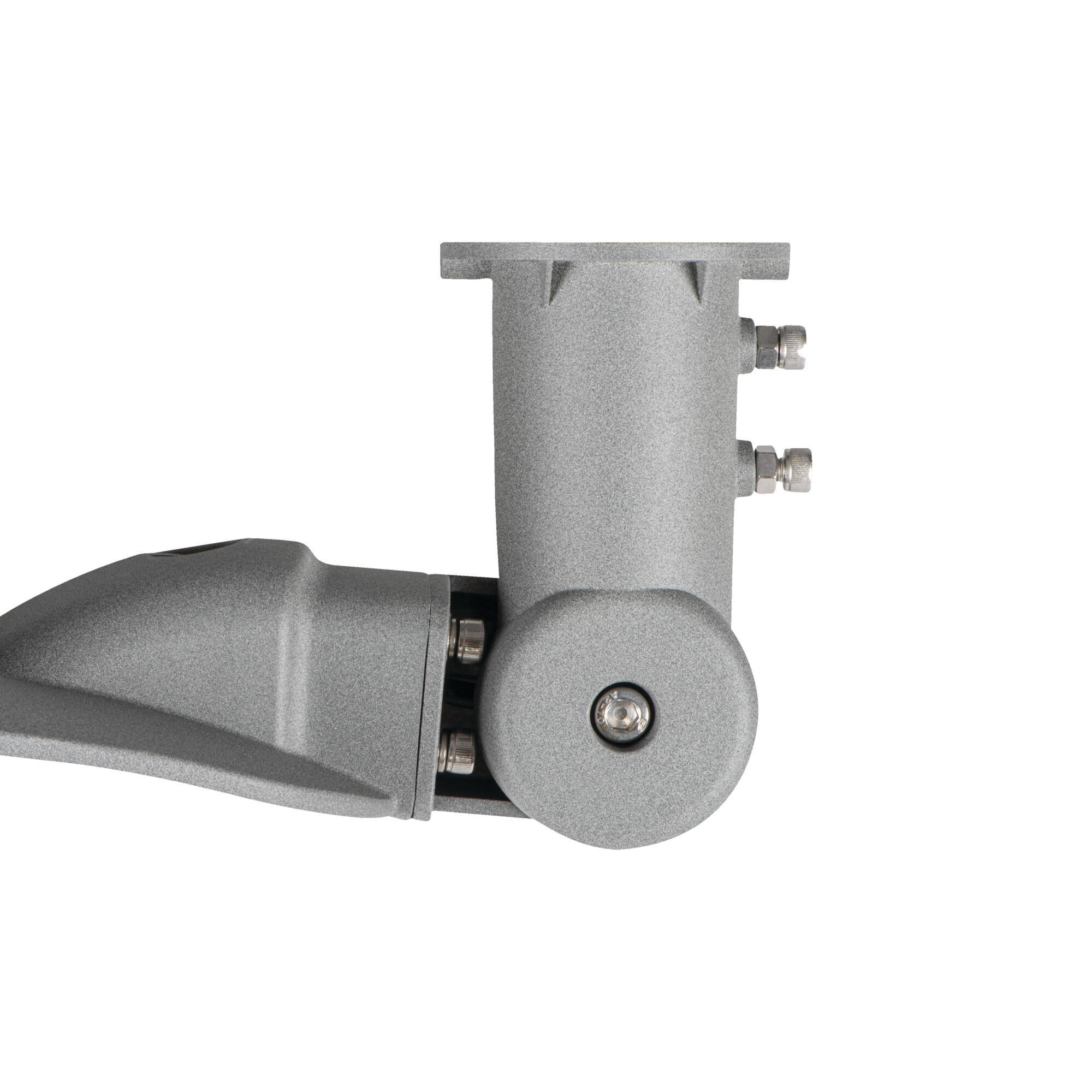

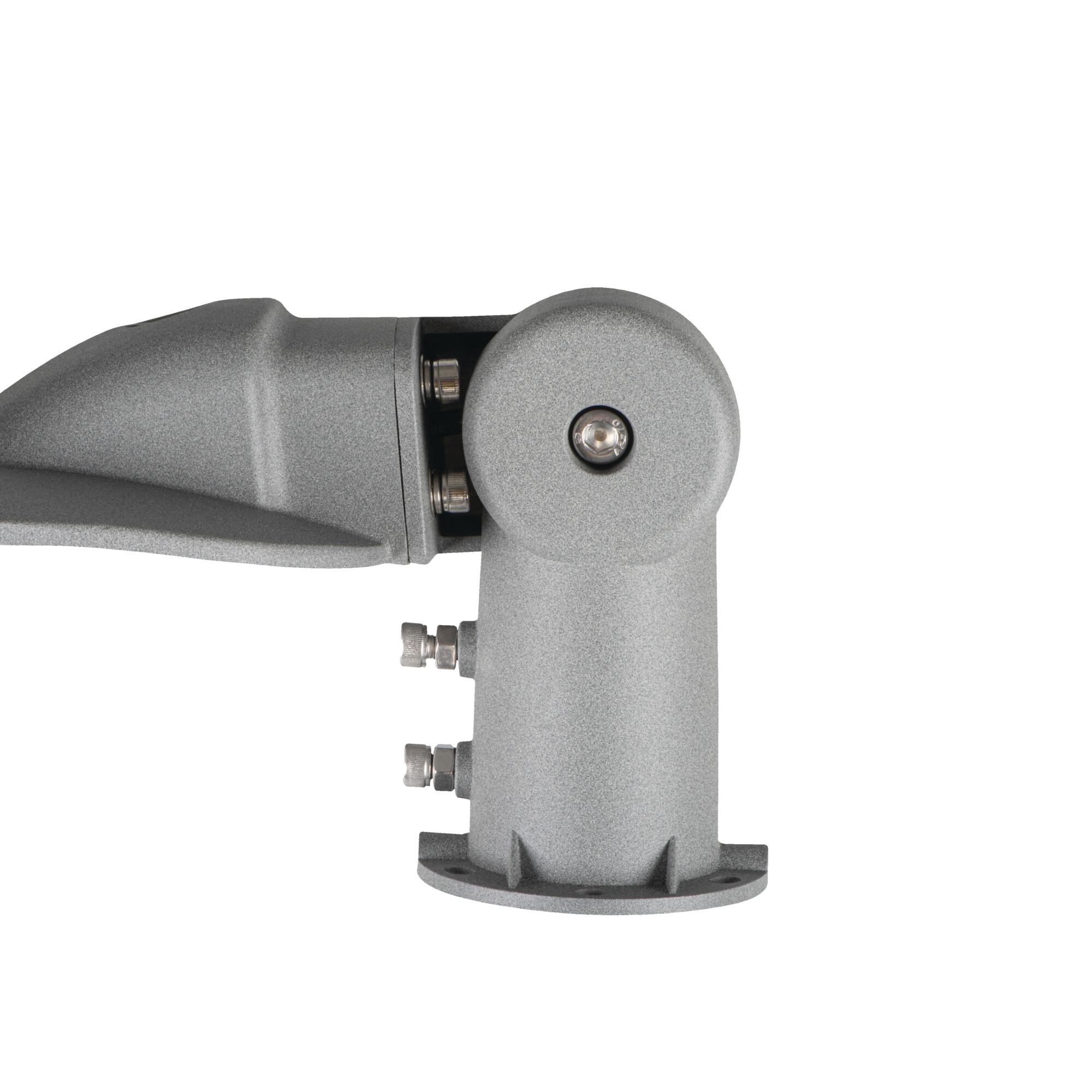

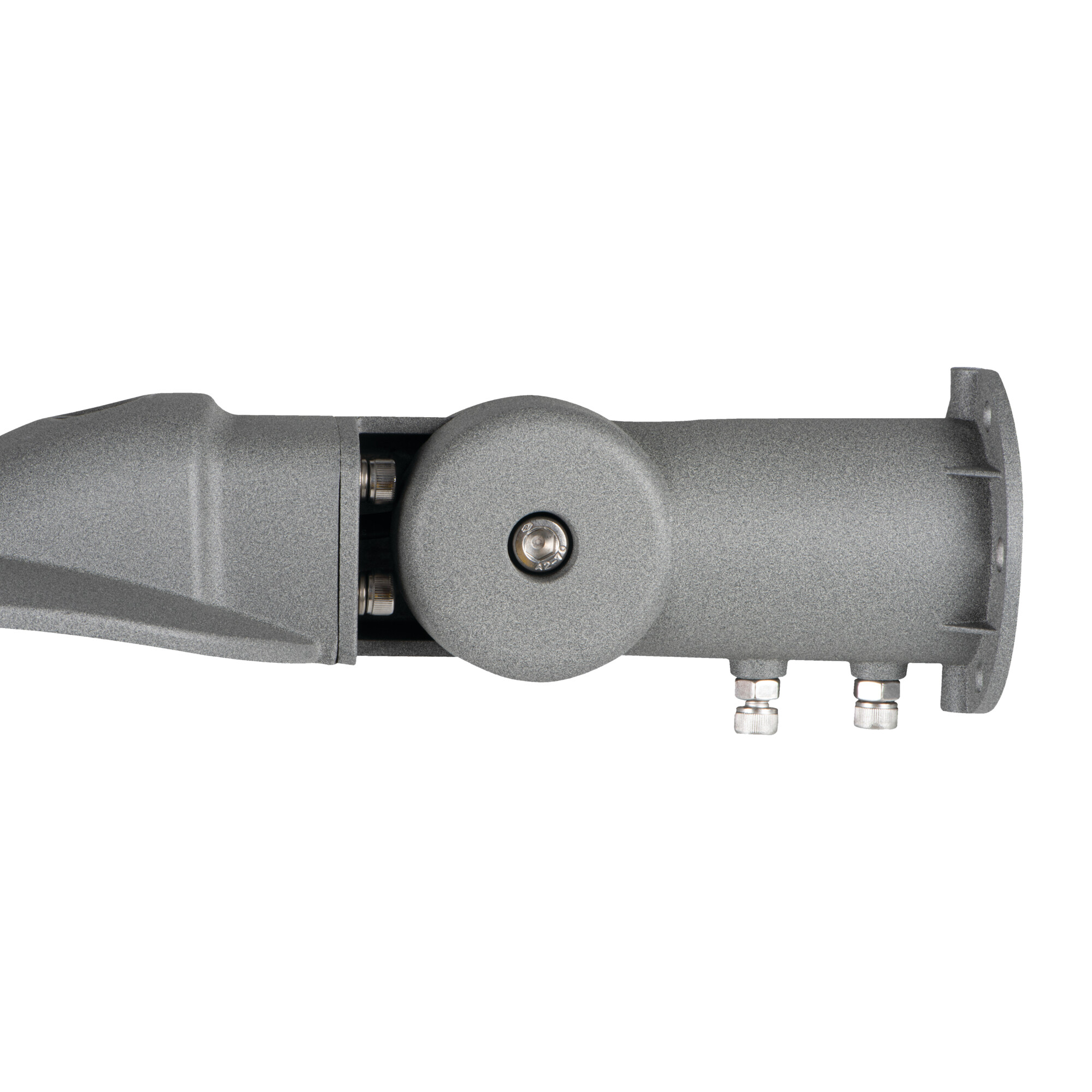

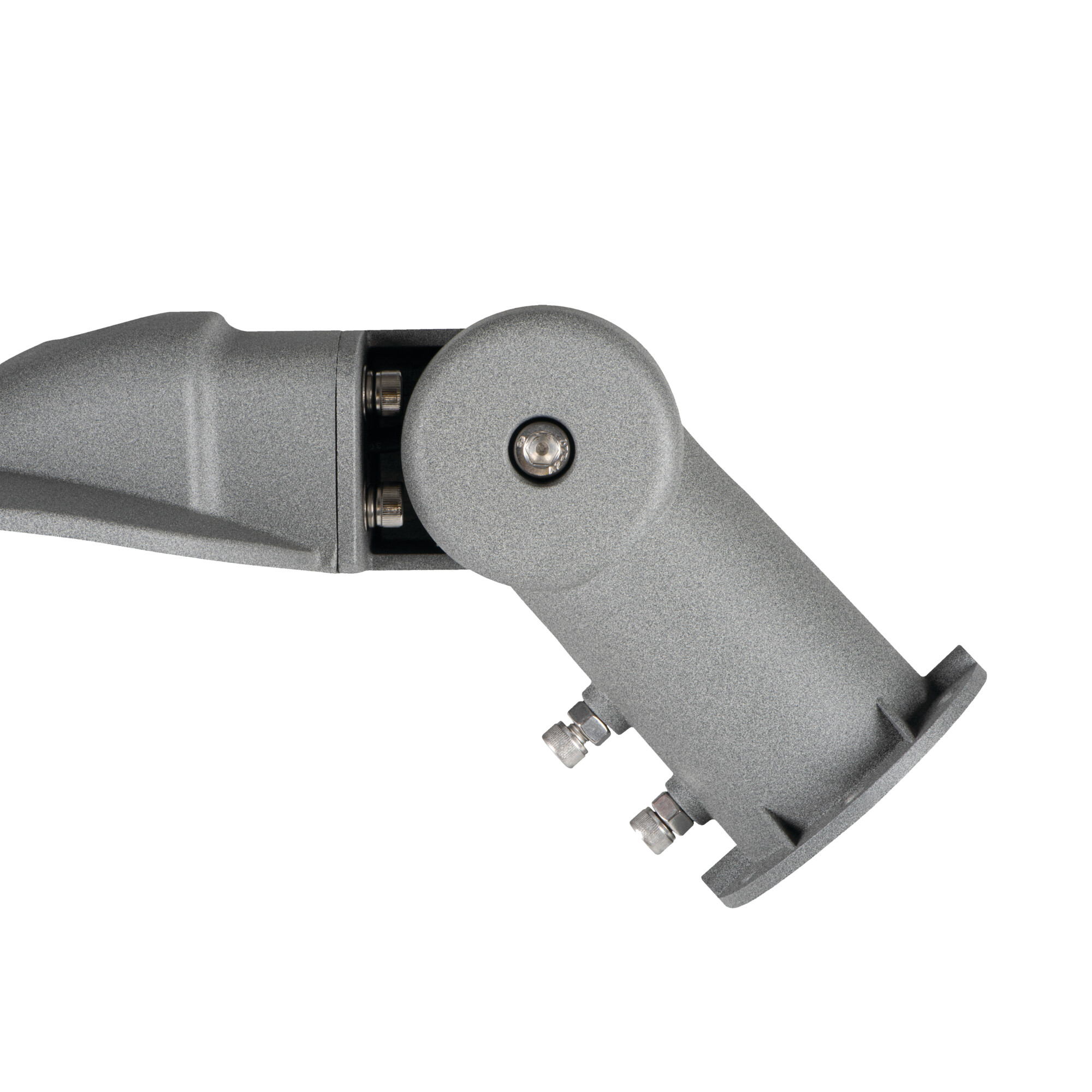

Place of assembly wall mounted, street pole

IK class 08

Connection type Free cable ends

Wire type H05RN-F

Wire length [m] 0.4

Wire diameter [mm²] 1

Minimum distance from the illuminated object 1m

Luminous efficiency of the lamp [lm/W] 130

On-mode power Pon [W] 200

Energy consumption in on-mode (kWh/1000h) 200

Claim of equivalent power [W] 1327

Displacement factor (cos φ1) 0,99

Survival factor 0,9

The lumen maintenance factor 0,96

Lighting technology used LED

Non-directional or directional light source NDLS

Mains or non-mains light source MLS

Connected light source (CLS) no

Colour-tuneable light source no

High luminance light source no

Anti-glare shield no

Dimmable no

R9 colour rendering index value -17

LED light source replaces a fluorescent light source without integrated ballast of a particular wattage Not applicable

Flicker metric (Pst LM) 1,0

Stroboscopic effect metric (SVM) 0,4

Mercury content no

EPRELID 1317884
